MA1706-EA
© 2017 CASIO COMPUTER CO., LTD.

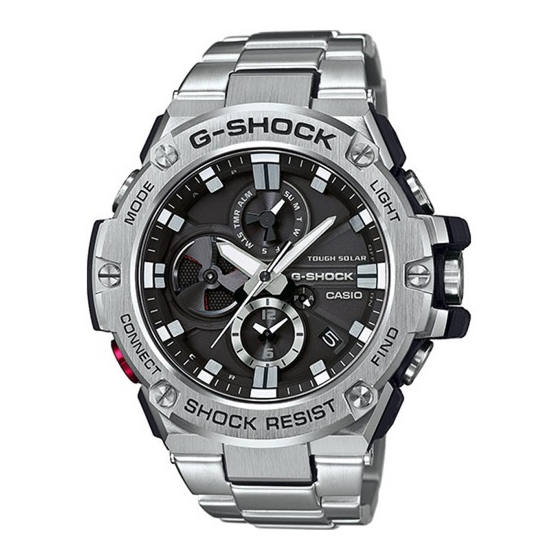

Quick Reference Manual 5513
Congratulations upon your selection of this CASIO watch.
To ensure that this watch provides you with the years of service for which it is designed,
carefully read and follow the instructions in this manual, especially the information under
"Operating Precautions" and "User Maintenance".
Be sure to keep all user documentation handy for future reference.
®
Bluetooth
is a registered trademark or trademark of Bluetooth SIG, Inc. of the United
States.
Your watch has a Mobile Link function that allows it to communicate with a Bluetooth
mobile phone and adjust its time settings to match those of the mobile phone.
This product complies with or has received approval under radio laws in various
countries and geographic areas. Use of this product in an area where it does not
conform to or where it has not been approved under applicable radio laws may be
punishable under local laws. For details, visit http://world.casio.com/ce/BLE/.
Use of this product inside of an aircraft is restricted by the aviation laws of each
country. Be sure to obey instructions provided by flight personnel concerning use of
devices such as this product.
Visit the website below for the operation
manual (Operation Guide) of this watch.
http://world.casio.com/manual/wat/
Using the Watch
Charging
Remove the watch from your wrist and place it in a brightly lit area.
The watch may become hot when exposed to light for charging. Take care to avoid
burn injury.
Avoid charging in locations where it is very hot.
Power Saving
Leaving the watch in a dark location for about one hour between the hours of 10 p.m.
and 6 a.m. will cause the second hand to stop at 12 o'clock.
Leaving the watch in a dark location for about one week will cause all hands to stop.
Battery Alerts
Low Battery
Second hand jumps every two seconds (Low Battery Alert).
Dead Battery
All hands stopped.
General Guide
1
2
3
5
6
7
8
* Hold down C for about two seconds to establish a Bluetooth connection with a phone.
Selecting a Mode
Each press of A cycles between modes as shown below.
Hold down A for about two seconds to enter the Calendar Mode.
Calendar Mode
Stopwatch
A
1. Mode: STW (Stopwatch), TMR
(Timer), ALM (Alarm)
2. Day of the week: SU, M, T, W, T, F, S
3. Current setting a.m./p.m.
4
(when setting the time): A, P
4. Hour and minute hands: Current time
Click 2
5. Connected with a mobile phone: C*
Click 1
6. Mobile phone connection standby: R
7. Dual Time dial
8. Alarm status: ON, OFF
Crown
Timer Mode
Mode
A
A
Setting the Time
1. Rotate the crown towards you to loosen it.
2. Pull the crown out to the second click.
This enables setting of the hour and minute.
3. Rotate the crown to change the current hour and minute setting.
The second hand will indicate a.m. (A) or p.m. (P).
4. Press A.
This enables the month and day setting.
5. Use B to change the month setting.
®
6. Rotate the crown to change the day setting.
7. Press A.
This enables the year 10's digit setting.
8. Rotate the crown to change the year 10's digit
setting.
9. Press A.
This enables the year 1's digit setting.
10. Rotate the crown to change the year 1's digit
setting.
11. After the settings are the way you want, push
the crown back in and then screw it securely
into place.
Changing the Dual Time, Alarm Time, or Timer Time Setting
1. Use A to navigate to the mode whose time
setting you want to change.
2. Rotate the crown towards you to loosen it.
3. Pull the crown out to the first click.
4. Rotate the crown to move the hands to the time
you want to set.
5. After the setting is the way you want, push the
crown back in and then screw it securely into
place.
Specifications
Accuracy at normal
temperature:
Timekeeping:
Stopwatch:
Alarm:
Countdown Timer:
Mobile Link
Functions:
Alarm Mode
A
Other:
Power Supply:
Approximate Battery
Life:
10
9
8
Month
Year 10's Digit Setting
90
80
Year 1's Digit Setting
9
8
Dual Time dial, a.m./p.m. hand
±
15 seconds a month
Hour, minute (hands move at 10-second intervals), second; date,
day of the week
Calendar system: Full-auto calendar from 2000 to 2099
Others: Dual time (hour, minute; Swapping with Home Time)
Measuring unit: 1 second
Measuring capacity: 23:59'59" (24 hours)
Measurement functions: Elapsed time, split times
Setting units: Hour, minute
Beeper: 10 seconds
Countdown unit: 1 second
Countdown range: 24 hours
Setting unit: 1 minute
Time up: 10-second beeper
Auto Time Correction
Time setting adjusted automatically at preset time.
One-touch Time Correction
Manual connection and time adjustment
Phone finder
Watch operation sounds the alert sound of the mobile phone.
World Time
Current time for approximately 300 cities selected for the watch
Home Time/World Time swapping
Auto summer time switching
Automatic switching between standard time and summer time
Timer Setting
Alarm Setting
Hand position correction
Data Communication Specifications
®
Bluetooth
Frequency Band: 2440MHz-2480MHz
Maximum Transmission: 0 dBm (1 mW)
Communication range: 2 meters max. (depends on environment)
Power Saving; Battery level indicator, High-brightness LED light
Solar panel and 1 rechargeable battery
5 months
Conditions
Mobile Link: 4 times (40 seconds)/day
Alarm: Once (10 seconds)/day
Illumination: Once (1.5 seconds)/day
Power Saving: 6 hours/day
Month Setting
12
11
1
2
3
4
7
5
6
Day
00
10
20
30
40
70
50
60
0
1
2
3
4
7
5
6
1
