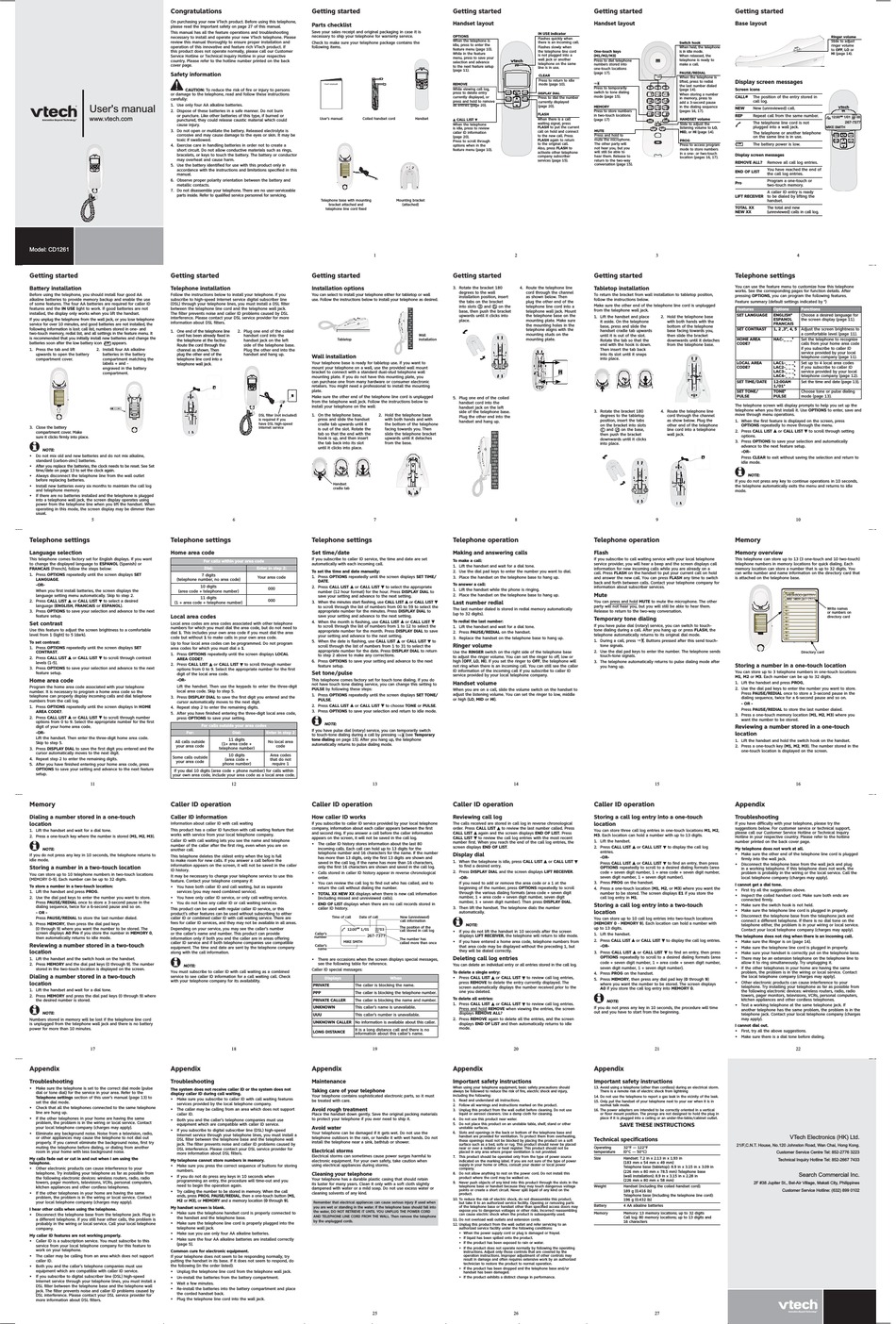

VTech CD1261 User Manual

Congratulations
On purchasing your new VTech product. Before using this telephone,
please read the Important safety on page 27 of this manual.
This manual has all the feature operations and troubleshooting
necessary to install and operate your new VTech telephone. Please
review this manual thoroughly to ensure proper installation and
operation of this innovative and feature rich VTech product. If
this product does not operate normally, please call our Customer
Service Hotline or Technical Inquiry Hotline in your respective
country. Please refer to the hotline number printed on the back
cover page.
Safety information
CAUTION: To reduce the risk of fire or injury to persons
or damage to the telephone, read and follow these instructions
carefully:
1. Use only four AA alkaline batteries.
User's manual
2. Dispose of these batteries in a safe manner. Do not burn
or puncture. Like other batteries of this type, if burned or
www.vtech.com
punctured, they could release caustic material which could
cause injury.
3. Do not open or mutilate the battery. Released electrolyte is
corrosive and may cause damage to the eyes or skin. It may be
toxic if swallowed.
4. Exercise care in handling batteries in order not to create a
short circuit. Do not allow conductive materials such as rings,
bracelets, or keys to touch the battery. The battery or conductor
may overheat and cause harm.
5. Use the battery identified for use with this product only in
accordance with the instructions and limitations specified in this
manual.
6. Observe proper polarity orientation between the battery and
metallic contacts.
7. Do not disassemble your telephone. There are no user-serviceable
parts inside. Refer to qualified service personnel for servicing.
Model: CD1261
Getting started Getting started
Battery installation Telephone installation
Before using the telephone, you should install four good AA Follow the instructions below to install your telephone. If you
alkaline batteries to provide memory backup and enable the use subscribe to high-speed Internet service digital subscriber line
of some features. The four AA batteries are required for caller ID (DSL) through your telephone lines, you must install a DSL filter
features and the IN USE light to work. If good batteries are not between the telephone line cord and the telephone wall jack.
installed, the display only works when you lift the handset. The filter prevents noise and caller ID problems caused by DSL
interference. Please contact your DSL service provider for more
If you unplug the telephone from the wall jack, or you lose telephone
information about DSL filters.
service for over 10 minutes, and good batteries are not installed, the
following information is lost: call list, numbers stored in one- and
1. One end of the telephone line
two-touch memory, redial list, and all settings in the feature menu. It
cord has been already fixed in
is recommended that you initially install new batteries and change the
the telephone at the factory.
batteries soon after the low battery icon appears.
LOW
Route the cord through the
1. Press the tab and lift 2. Install four AA alkaline channel as shown. Then
upwards to open the battery batteries in the battery plug the other end of the
compartment cover. compartment matching the telephone line cord into a
labels + and - telephone wall jack.
engraved in the battery
compartment.
PUSH
TO RELEASE
3. Close the battery
compartment cover. Make
sure it clicks firmly into place.
NOTE:
• Do not mix old and new batteries and do not mix alkaline,
standard (carbon-zinc) batteries.
• After you replace the batteries, the clock needs to be reset. See Set
time/date on page 13 to set the clock again.
• Always disconnect the telephone line from the wall outlet
before replacing batteries.
• Install new batteries every six months to maintain the call log
and telephone memory.
• If there are no batteries installed and the telephone is plugged
into a telephone wall jack, the screen display operates using
power from the telephone line when you lift the handset. When
operating in this mode, the screen display may be dimmer than
usual.
5
Telephone settings Telephone settings
Language selection Home area code
This telephone comes factory set for English displays. If you want
to change the displayed language to ESPANOL (Spanish) or
FRANCAIS (French), follow the steps below:
1. Press OPTIONS repeatedly until the screen displays SET
LANGUAGE. (telephone number, no area code)
-OR-
When you first install batteries, the screen displays the
(area code + telephone number)
language setting menu automatically. Skip to step 2.
2. Press CALL LIST or CALL LIST to select a desired
(1 + area code + telephone number)
language (ENGLISH, FRANCAIS or ESPANOL).
3. Press OPTIONS to save your selection and advance to the next
feature setup. Local area codes
Set contrast
Local area codes are area codes associated with other telephone
numbers for which you must dial the area code, but do not need to
Use this feature to adjust the screen brightness to a comfortable
dial 1. This includes your own area code if you must dial the area
level from 1 (light) to 5 (dark).
code but without 1 to make calls in your own area code.
To set contrast:
Up to four local area codes can be programmed. Do not program
1. Press OPTIONS repeatedly until the screen displays SET
area codes for which you must dial a 1.
CONTRAST.
1. Press OPTIONS repeatedly until the screen displays LOCAL
2. Press CALL LIST or CALL LIST to scroll through contrast
AREA CODE?.
levels (1-5).
2. Press CALL LIST
3. Press OPTIONS to save your selection and advance to the next
options from 0 to 9. Select the appropriate number for the first
feature setup.
digit of the local area code.
Home area code
-OR-
Program the home area code associated with your telephone Lift the handset. Then use the keypads to enter the three-digit
number. It is necessary to program a home area code so the local area code. Skip to step 5.
telephone can properly display incoming calls and dial telephone
3. Press DISPLAY DIAL to save the first digit you entered and the
numbers from the call log.
cursor automatically moves to the next digit.
1. Press OPTIONS repeatedly until the screen displays In HOME 4. Repeat step 2 to enter the remaining digits.
AREA CODE?.
5. After you have finished entering the three-digit local area code,
2. Press CALL LIST or CALL LIST to scroll through number
press OPTIONS to save your setting.
options from 0 to 9. Select the appropriate number for the first
digit of your home area code.
-OR- For:
Lift the handset. Then enter the three-digit home area code.
All calls outside
Skip to step 5.
your area code
3. Press DISPLAY DIAL to save the first digit you entered and the
cursor automatically moves to the next digit.
Some calls outside
4. Repeat step 2 to enter the remaining digits.
your area code
5. After you have finished entering your home area code, press
OPTIONS to save your setting and advance to the next feature
If you dial 10 digits (area code + phone number) for calls within
setup.
your own area code, include your area code as a local area code.
11
Memory Caller ID operation
Dialing a number stored in a one-touch Caller ID information
location
Information about caller ID with call waiting
This product has a caller ID function with call waiting feature that
1. Lift the handset and wait for a dial tone.
works with service from your local telephone company.
2. Press a one-touch key where the number is stored ( M1, M2, M3).
Caller ID with call waiting lets you see the name and telephone
number of the caller after the first ring, even when you are on
NOTE:
another call.
If you do not press any key in 10 seconds, the telephone returns to
This telephone deletes the oldest entry when the log is full
idle mode.
to make room for new calls. If you answer a call before the
information appears on the screen, it will not be saved in the caller
Storing a number in a two-touch location
ID history.
You can store up to 10 telephone numbers in two-touch locations
It may be necessary to change your telephone service to use this
(MEMORY 0-9). Each number can be up to 32 digits.
feature. Contact your telephone company if:
To store a number in a two-touch location:
• You have both caller ID and call waiting, but as separate
1. Lift the handset and press PROG. services (you may need combined service).
2. Use the dial pad keys to enter the number you want to store. • You have only caller ID service, or only call waiting service.
Press PAUSE/REDIAL once to store a 3-second pause in the
• You do not have any caller ID or call waiting services.
dialing sequence, twice for a 6-second pause and so on.
This product can be used with regular caller ID service, or this
- OR -
product's other features can be used without subscribing to either
caller ID or combined caller ID with call waiting service. There are
Press PAUSE/REDIAL to store the last number dialed.
fees for caller ID services, and they may not be available in all areas.
3. Press MEMORY, then press the dial pad keys
(0 through 9) where you want the number to be stored. The Depending on your service, you may see the caller's number
screen displays A0 Pro if you store the number in MEMORY 0,
or the caller's name and number. This product can provide
then automatically returns to idle mode. information only if both you and the caller are in areas offering
caller ID service and if both telephone companies use compatible
Reviewing a number stored in a two-touch
equipment. The time and date are sent by the telephone company
location
along with the call information.
1. Lift the handset and the switch hook on the handset.
2. Press MEMORY and the dial pad keys (0 through 9). The number NOTE:
stored in the two-touch location is displayed on the screen.
You must subscribe to caller ID with call waiting as a combined
Dialing a number stored in a two-touch
service to see caller ID information for a call waiting call. Check
with your telephone company for its availability.
location
1. Lift the handset and wait for a dial tone.
2. Press MEMORY and press the dial pad keys (0 through 9) where
the desired number is stored.
NOTE:
Numbers stored in memory will be lost if the telephone line cord
is unplugged from the telephone wall jack and there is no battery
power for more than 10 minutes.
17
Appendix Appendix
Troubleshooting Troubleshooting
• Make sure the telephone is set to the correct dial mode (pulse
The system does not receive caller ID or the system does not
dial or tone dial) for the service in your area. Refer to the
display caller ID during call waiting.
Telephone settings section of this user's manual (page 13) to
• Make sure you subscribe to caller ID with call waiting features
set the dial mode.
services provided by the local telephone company.
• Check that all the telephones connected to the same telephone
• The caller may be calling from an area which does not support
line are hung up.
caller ID.
• If the other telephones in your home are having the same
• Both you and the caller's telephone companies must use
problem, the problem is in the wiring or local service. Contact
equipment which are compatible with caller ID service.
your local telephone company (charges may apply).
• If you subscribe to digital subscriber line (DSL) high-speed
• Eliminate any background noise. Noise from a television, radio,
Internet service through your telephone lines, you must install a
or other appliances may cause the telephone to not dial out
DSL filter between the telephone base and the telephone wall
properly. If you cannot eliminate the background noise, first try
jack. The filter prevents noise and caller ID problems caused by
muting the telephone before dialing, or dialing from another
DSL interference. Please contact your DSL service provider for
room in your home with less background noise.
more information about DSL filters.
My calls fade out or cut in and out when I am using the
My telephone cannot store numbers in memory.
telephone.
• Make sure you press the correct sequence of buttons for storing
• Other electronic products can cause interference to your
numbers.
telephone. Try installing your telephone as far as possible from
• If you do not do press any keys in 10 seconds when
the following electronic devices: wireless routers, radio, radio
programming an entry, the procedure will time-out and you
towers, pager monitors, televisions, VCRs, personal computers,
need to begin the operation again.
kitchen appliances and other cordless telephones.
• Try calling the number to be stored in memory. When the call
• If the other telephones in your home are having the same
ends, press PROG, PAUSE/REDIAL, then a one-touch button (M1,
problem, the problem is in the wiring or local service. Contact
M2 or M3), or MEMORY and a memory location (0 through 9).
your local telephone company (charges may apply).
My handset screen is blank.
I hear other calls when using the telephone.
• Make sure the telephone handset cord is properly connected to
• Disconnect the telephone base from the telephone jack. Plug in
the handset and the telephone base.
a different telephone. If you still hear other calls, the problem is
• Make sure the telephone line cord is properly plugged into the
probably in the wiring or local service. Call your local telephone
company. telephone wall jack.
• Make sue you use only four AA alkaline batteries.
My caller ID features are not working properly.
• Make sure the four AA alkaline batteries are installed correctly
• Caller ID is a subscription service. You must subscribe to this
(page 5).
service from your local telephone company for this feature to
work on your telephone. Common cure for electronic equipment.
• The caller may be calling from an area which does not support
If your telephone does not seem to be responding normally, try
caller ID.
putting the handset in its base. If it does not seem to respond, do
the following (in the order listed):
• Both you and the caller's telephone companies must use
equipment which are compatible with caller ID service.
• Unplug the telephone line cord from the telephone wall jack.
• If you subscribe to digital subscriber line (DSL) high-speed
• Un-install the batteries from the battery compartment.
Internet service through your telephone lines, you must install a
• Wait a few minutes.
DSL filter between the telephone base and the telephone wall
• Re-install the batteries into the battery compartment and place
jack. The filter prevents noise and caller ID problems caused by
the corded handset back.
DSL interference. Please contact your DSL service provider for
more information about DSL filters. • Plug the telephone line cord into the wall jack.
23
Getting started
Parts checklist
Save your sales receipt and original packaging in case it is
necessary to ship your telephone for warranty service.
Check to make sure your telephone package contains the
following items.
User's manual
Telephone base with mounting
bracket attached and
telephone line cord fixed
Getting started
Installation options
You can select to install your telephone either for tabletop or wall
use. Follow the instructions below to install your telephone as desired.
2. Plug one end of the coiled
handset cord into the
Tabletop
handset jack on the left
side of the telephone base.
Plug the other end into the
handset and hang up.
Wall installation
Your telephone base is ready for tabletop use. If you want to
mount your telephone on a wall, use the provided wall mount
bracket to connect with a standard dual-stud telephone wall
mounting plate. If you do not have this mounting plate, you
can purchase one from many hardware or consumer electronic
retailers. You might need a professional to install the mounting
plate.
Make sure the other end of the telephone line cord is unplugged
from the telephone wall jack. Follow the instructions below to
install your telephone on the wall:
1. On the telephone base,
DSL filter (not included)
is required if you press and slide the handset
have DSL high-speed
cradle tab upwards until it
Internet service
is out of the slot. Rotate the
tab so that the end with the
hook is up, and then insert
the tab back into its slot
until it clicks into place.
Handset
cradle tab
6
Telephone settings
Set time/date
If you subscribe to caller ID service, the time and date are set
For calls within your area code
automatically with each incoming call.
Dial: Enter in step 2:
To set the time and date manually:
7 digits
Your area code 1. Press OPTIONS repeatedly until the screen displays SET TIME/
DATE.
10 digits 2. Press CALL LIST or CALL LIST
000
number (12 hour format) for the hour. Press DISPLAY DIAL to
save your setting and advance to the next setting.
11 digits
000
3. When the minutes start flashing, use
to scroll through the list of numbers from 00 to 59 to select the
appropriate number for the minutes. Press DISPLAY DIAL to
save your setting and advance to the next setting.
4. When the month is flashing, use
to scroll through the list of numbers from 1 to 12 to select the
appropriate number for the month. Press DISPLAY DIAL to save
your setting and advance to the next setting.
5. When the date is flashing, use
scroll through the list of numbers from 1 to 31 to select the
appropriate number for the date. Press DISPLAY DIAL to return
to step 2 above to make any corrections.
6. Press OPTIONS to save your setting and advance to the next
or CALL LIST to scroll through number
feature setup.
Set tone/pulse
This telephone comes factory set for touch tone dialing. If you do
not have touch tone dialing service, you can change this setting to
PULSE by following these steps:
1. Press OPTIONS repeatedly until the screen displays SET TONE/
PULSE.
2. Press CALL LIST or CALL LIST
3. Press OPTIONS to save your selection and return to idle mode.
NOTE:
For calls outside your area codes
If you have pulse dial (rotary) service, you can temporarily switch
Dial: Enter in step 2
to touch-tone dialing during a call by pressing
11 digits tone dialing on page 15). After you hang up, the telephone
No local area
(1+ area code +
automatically returns to pulse dialing mode.
code
telephone number)
10 digits Area codes
(area code + that do not
phone number) require 1
12
Caller ID operation
How caller ID works
If you subscribe to caller ID service provided by your local telephone
company, information about each caller appears between the first
and second ring. If you answer a call before the caller information
appears on the screen, it will not be saved in the call log.
• The caller ID history stores information about the last 80
incoming calls. Each call can hold up to 13 digits for the
telephone number and 16 characters for the name. If the number
has more than 13 digits, only the first 13 digits are shown and
saved in the call log. If the name has more than 16 characters,
only the first 16 characters are shown and saved in the call log.
• Calls stored in caller ID history appear in reverse chronological
order.
• You can review the call log to find out who has called, and to
return the call without dialing the number.
• TOTAL XX NEW XX displays when there is new call information
(including missed and unreviewed calls).
• END OF LIST displays when there are no call records stored in
caller ID history.
Time of call Date of call
12:00 AM
Caller's
number
MIKE SMITH
Caller's
name
• There are occasions when the screen displays special messages,
see the following table for reference.
Caller ID special messages:
Displays
PRIVATE The caller is blocking the name.
PPP The caller is blocking the telephone number.
PRIVATE CALLER The caller is blocking the name and number.
UNKNOWN This caller's name is unavailable.
UUU This caller's number is unavailable.
UNKNOWN CALLER No information is available about this caller.
It is a long distance call and there is no
LONG DISTANCE
information about this caller's name.
18
Appendix
Maintenance
Taking care of your telephone
Your telephone contains sophisticated electronic parts, so it must
be treated with care.
Avoid rough treatment
Place the handset down gently. Save the original packing materials
to protect your telephone if you ever need to ship it.
Avoid water
Your telephone can be damaged if it gets wet. Do not use the
telephone outdoors in the rain, or handle it with wet hands. Do not
install the telephone near a sink, bathtub or shower.
Electrical storms
Electrical storms can sometimes cause power surges harmful to
electronic equipment. For your own safety, take caution when
using electrical appliances during storms.
Cleaning your telephone
Your telephone has a durable plastic casing that should retain
its luster for many years. Clean it only with a soft cloth slightly
dampened with water or a mild soap. Do not use excess water or
cleaning solvents of any kind.
Remember that electrical appliances can cause serious injury if used when
you are wet or standing in the water. If the telephone base should fall into
the water, DO NOT RETRIEVE IT UNTIL YOU UNPLUG THE POWER CORD
AND TELEPHONE LINE CORD FROM THE WALL. Then remove the telephone
by the unplugged cords.
24
Getting started
Handset layout
OPTIONS
When the telephone is
idle, press to enter the
feature menu (page 10).
While in the feature
menu, press to save your
selection and advance
to the next feature setup
(page 11).
REMOVE
While viewing call log,
press to delete entry
currently displayed, or
press and hold to remove
all entries (page 20).
Coiled handset cord Handset
CALL LIST
When the telephone
is idle, press to review
caller ID information
(page 20).
Press to scroll through
options when in the
feature menu (page 10).
Mounting bracket
(attached)
1 2
Getting started
3. Rotate the bracket 180 4.
degrees to the wall
installation position, insert
the tabs on the bracket
into slots and on the
base, then push the bracket
upwards until it clicks into
place.
Wall
installation
a b
5. Plug one end of the coiled
handset cord into the
handset jack on the left
side of the telephone base.
2. Hold the telephone base
Plug the other end into the
with both hands and with
handset and hang up.
the bottom of the telephone
facing towards you. Then
slide the telephone bracket
upwards until it detaches
from the base.
PUSH
TO RELEASE
7 8
Telephone operation
Making and answering calls
To make a call:
1. Lift the handset and wait for a dial tone.
2. Use the dial pad keys to enter the number you want to dial.
3. Place the handset on the telephone base to hang up.
To answer a call:
to select the appropriate
1. Lift the handset while the phone is ringing.
2. Place the handset on the telephone base to hang up.
CALL LIST or CALL LIST Last number redial
The last number dialed is stored in redial memory automatically
(up to 32 digits).
CALL LIST or CALL LIST To redial the last number:
1. Lift the handset and wait for a dial tone.
2. Press PAUSE/REDIAL on the handset.
3. Replace the handset on the telephone base to hang up.
CALL LIST or CALL LIST to
Ringer volume
Use the RINGER switch on the right side of the telephone base
to adjust the ringer volume. You can set the ringer to off, low or
high (OFF, LO, HI). If you set the ringer to OFF, the telephone will
not ring when there is an incoming call. You can still see the caller
ID information of the incoming call if you subscribe to caller ID
service provided by your local telephone company.
Handset volume
When you are on a call, slide the volume switch on the handset to
adjust the listening volume. You can set the ringer to low, middle
or high (LO, MID or HI).
to choose TONE or PULSE.
(see Temporary
13 14
Caller ID operation
Reviewing call log
The calls received are stored in call log in reverse chronological
order. Press CALL LIST to review the last number called. Press
CALL LIST again and the screen displays END OF LIST. Press
CALL LIST to review the call log entries with the most recent
number first. When you reach the end of the call log entries, the
screen displays END OF LIST.
Display dial
1. When the telephone is idle, press
to find a desired entry.
2. Press DISPLAY DIAL and the screen displays LIFT RECEIVER.
-OR-
If you need to add or remove the area code or a 1 at the
beginning of the number, press OPTIONS repeatedly to scroll
through the various dialing formats (area code + seven digit
number, 1 + area code + seven digit number, seven digit
number, 1 + seven digit number). Then press DISPLAY DIAL.
3. Then lift the handset. The telephone dials the number
automatically.
New (unreviewed)
call information
NOTE:
The position of the
1/01 03
call stored in call log • If you do not lift the handset in 10 seconds after the screen
267-7377 77 displays LIFT RECEIVER, the telephone will return to idle mode.
The number has
• If you have entered a home area code, telephone numbers from
called more than once
that area code may be displayed without the preceding 1, but
they will be dialed correctly.
Deleting call log entries
You can delete an individual entry or all entries stored in the call log.
To delete a single entry:
• Press CALL LIST or CALL LIST
When
press REMOVE to delete the entry currently displayed. The
screen automatically displays the number received prior to the
one you deleted.
To delete all entries:
1. Press CALL LIST or CALL LIST
Press and hold REMOVE when viewing the entries, the screen
displays REMOVE ALL?
2. Press REMOVE again to delete all the entries, and the screen
displays END OF LIST and then automatically returns to idle
mode.
19 20
Appendix
Important safety instructions
When using your telephone equipment, basic safety precautions should
always be followed to reduce the risk of fire, electric shock and injury,
including the following:
1. Read and understand all instructions.
2. Follow all warnings and instructions marked on the product.
3. Unplug this product from the wall outlet before cleaning. Do not use
liquid or aerosol cleaners. Use a damp cloth for cleaning.
4. Do not use this product near water.
5. Do not place this product on an unstable table, shelf, stand or other
unstable surfaces.
6. Slots and openings in the back or bottom of the telephone base and
handset are provided for ventilation. To protect them from overheating,
these openings must not be blocked by placing the product on a soft
surface such as a bed, sofa or rug. This product should never be placed
near or over a radiator or heat register. This product should not be
placed in any area where proper ventilation is not provided.
7. This product should be operated only from the type of power source
indicated on the marking label. If you are not sure of the type of power
supply in your home or office, consult your dealer or local power
company.
8. Do not allow anything to rest on the power cord. Do not install this
product where the cord may be walked on.
9. Never push objects of any kind into this product through the slots in the
telephone base or handset because they may touch dangerous voltage
points or create a short circuit. Never spill liquid of any kind on the
product.
10. To reduce the risk of electric shock, do not disassemble this product,
but take it to an authorized service facility. Opening or removing parts
of the telephone base or handset other than specified access doors may
expose you to dangerous voltages or other risks. Incorrect reassembling
can cause electric shock when the product is subsequently used.
11. Do not overload wall outlets and extension cords.
12. Unplug this product from the wall outlet and refer servicing to an
authorized service facility under the following conditions:
• When the power supply cord or plug is damaged or frayed.
• If liquid has been spilled onto the product.
• If the product has been exposed to rain or water.
• If the product does not operate normally by following the operating
instructions. Adjust only those controls that are covered by the
operation instructions. Improper adjustment of other controls may
result in damage and often requires extensive work by an authorized
technician to restore the product to normal operation.
• If the product has been dropped and the telephone base and/or
handset has been damaged.
• If the product exhibits a distinct change in performance.
25 26
Getting started
Handset layout
IN USE indicator
Flashes quickly when
there is an incoming call. Switch hook
Flashes slowly when When held, the telephone
the telephone line cord One-touch keys is in idle mode.
is not plugged into a
(M1/M2/M3) When released, the
wall jack or another
Press to dial telephone telephone is ready to
telephone on the same make a call.
numbers stored into
line is in use.
one-touch locations
(page 17). PAUSE/REDIAL
CLEAR
When the telephone is
Press to return to idle
lifted, press to redial
mode (page 10).
the last number dialed
Press to temporarily
(page 14).
switch to tone dialing
DISPLAY DIAL
When storing a number
mode (page 15).
Press to dial the number
in memory, press to
currently displayed add a 3-second pause
(page 20).
MEMORY in the dialing sequence
Press to store numbers (pages 16, 17).
FLASH
in two-touch locations
When there is a call (page 17) HANDSET volume
waiting signal, press Slide to adjust the
FLASH to put the current
listening volume to LO,
MUTE
call on hold and connect MID, or HI (page 14).
to the new call. Press Press and hold to
FLASH again to return mute the microphone.
PROG
to the original call. The other party will
Press to access program
Also, press FLASH to not hear you, but you
mode to store numbers
activate other telephone will still be able to
in a one- or two-touch
hear them. Release to
company subscriber
location (pages 16, 17).
services (page 15). return to the two-way
conversation (page 15).
3
Getting started
Tabletop installation
Route the telephone line
cord through the channel
To return the bracket from wall installation to tabletop position,
as shown below. Then
follow the instructions below.
plug the other end of the
Make sure the other end of the telephone line cord is unplugged
telephone line cord into a
from the telephone wall jack.
telephone wall jack. Mount
the telephone base on the
1. Lift the handset and place 2. Hold the telephone base
mounting plate. Make sure
it aside. On the telephone with both hands with the
the mounting holes in the
base, press and slide the bottom of the telephone
telephone aligns with the
handset cradle tab upwards base facing towards you,
mounting studs on the
until it is out of the slot. then slide the bracket
mounting plate.
Rotate the tab so that the downwards until it detaches
end with the hook is down. from the telephone base.
Then insert the tab back
into its slot until it snaps
into place.
3. Rotate the bracket 180 4. Route the telephone line
degrees to the tabletop cord through the channel
position, insert the tabs as show below. Plug the
on the bracket into slots other end of the telephone
and on the base, line cord into a telephone
then push the bracket wall jack.
downwards until it clicks
into place.
PUSH
TO RELEASE
c d
9
Telephone operation
Flash
If you subscribe to call waiting service with your local telephone
service provider, you will hear a beep and the screen displays call
information for new incoming calls while you are already on a
call. Press FLASH on the handset to put your current call on hold
and answer the new call. You can press FLASH any time to switch
back and forth between calls. Contact your telephone company for
information about subscriber services.
Mute
You can press and hold MUTE to mute the microphone. The other
party will not hear you, but you will still be able to hear them.
Release to return to the two-way conversation.
Temporary tone dialing
If you have pulse dial (rotary) service, you can switch to touch-
tone dialing during a call. After you hang up or press FLASH, the
telephone automatically returns to its original dial mode.
1. During a call, press . Buttons pressed after this send touch-
tone signals.
2. Use the dial pad keys to enter the number. The telephone sends
touch-tone signals.
3. The telephone automatically returns to pulse dialing mode after
you hang up.
15
Caller ID operation
Storing a call log entry into a one-touch
location
You can store three call log entries in one-touch locations M1, M2,
M3. Each location can hold a number with up to 13 digits.
1. Lift the handset.
2. Press CALL LIST or CALL LIST to display the call log
entries.
-OR-
CALL LIST or CALL LIST
Press CALL LIST or CALL LIST to find an entry, then press
OPTIONS repeatedly to scroll to a desired dialing formats (area
code + seven digit number, 1 + area code + seven digit number,
seven digit number, 1 + seven digit number).
3. Press PROG on the handset.
4. Press a one-touch location ( M1, M2, or M3) where you want the
number to be stored. The screen displays E1 if you store the
call log entry in M1.
Storing a call log entry into a two-touch
location
You can store up to 10 call log entries into two-touch locations
(MEMORY 0 - MEMORY 9). Each location can hold a number with
up to 13 digits.
1. Lift the handset.
2. Press CALL LIST or CALL LIST to display the call log entries.
-OR-
3. Press CALL LIST or CALL LIST to find an entry, then press
OPTIONS repeatedly to scroll to a desired dialing formats (area
code + seven digit number, 1 + area code + seven digit number,
seven digit number, 1 + seven digit number).
4. Press PROG on the handset.
to review call log entries,
5. Press MEMORY, then press any dial pad key (0 through 9)
where you want the number to be stored. The screen displays
A0 if you store the call log entry into MEMORY 0.
NOTE:
to review call log entries.
If you do not press any key in 10 seconds, the procedure will time
out and you have to start from the beginning.
21
Appendix
Important safety instructions
13. Avoid using a telephone (other than cordless) during an electrical storm.
There is a remote risk of electric shock from lightning
14. Do not use the telephone to report a gas leak in the vicinity of the leak.
15. Only put the handset of your telephone next to your ear when it is in
normal talk mode.
16. The power adapters are intended to be correctly oriented in a vertical
or floor mount position. The prongs are not designed to hold the plug in
place if it is plugged into a ceiling or an under-the-table/cabinet outlet.
SAVE THESE INSTRUCTIONS
Technical specifications
Operating 32°F — 122°F
temperature (0°C — 50°C)
Size Handset: 7.2 in x 2.13 in x 1.93 in
(183 mm x 54 mm x 49 mm)
Telephone base (tabletop): 8.9 in x 3.15 in x 3.09 in
(226 mm x 80 mm x 78.5 mm) Telephone base
(wall installation): 8.9 in x 3.15 in x 2.28 in
(226 mm x 80 mm x 58 mm)
Weight Handset (including the coiled handset cord):
189 g (0.416 lb)
Telephone base (including the telephone line cord):
196 g (0.432 lb)
Battery 4 AA alkaline batteries
Memory Memory: 13 memory locations; up to 32 digits
Call log: 80 memory locations; up to 13 digits and
16 characters
27
Getting started
Base layout
Ringer volume
Slide to adjust
ringer volume
to OFF, LO or
HI (page 14).
Display screen messages
Screen icons
CALL# The position of the entry stored in
call log.
NEW New (unreviewed) call.
REP Repeat call from the same number. CALL#
12:00 AM 1/01 NEW 03
LOW REP
267-7377
The telephone line cord is not
plugged into a wall jack. MIKE SMITH
The telephone or another telephone
on the same line is in use.
LOW The battery power is low.
Display screen messages
REMOVE ALL? Remove all call log entries.
You have reached the end of
END OF LIST
the call log entries.
Program a one-touch or
Pro
two-touch memory.
A caller ID entry is ready
LIFT RECEIVER to be dialed by lifting the
handset.
TOTAL XX The total and new
NEW XX (unreviewed) calls in call log.
4
Telephone settings
You can use the feature menu to customize how this telephone
works. See the corresponding pages for function details. After
pressing OPTIONS, you can program the following features.
Feature summary (default settings indicated by *)
Features Options Functions
SET LANGUAGE ENGLISH* Choose a desired language for
ESPANOL the screen display (page 11).
FRANCAIS
SET CONTRAST 1, 2 ,3*, 4, 5 Adjust the screen brightness to
a comfortable level (page 11).
HOME AREA HAC-_ _ _* Set the telephone to recognize
CODE? calls from your home area code
if you subscribe to caller ID
service provided by your local
telephone company (page 11).
LOCAL AREA LAC1-_ _ _* Set up to 4 local area codes
CODE? LAC2-_ _ _* if you subscribe to caller ID
LAC3-_ _ _* service provided by your local
LAC4-_ _ _* telephone company (page 12).
SET TIME/DATE 12:00AM Set the time and date (page 13).
1/01*
SET TONE/ TONE* Choose tone or pulse dialing
PULSE PULSE mode (page 13).
The telephone screen will display prompts to help you set up the
telephone when you first install it. Use OPTIONS to enter, save and
move through menu operations.
1. When the first feature is displayed on the screen, press
OPTIONS repeatedly to move through the menu.
2. Press CALL LIST or CALL LIST to scroll through setting
options.
3. Press OPTIONS to save your selection and automatically
advance to the next feature setup.
-OR-
Press CLEAR to exit without saving the selection and return to
idle mode.
NOTE:
If you do not press any key to continue operations in 10 seconds,
the telephone automatically exits the menu and returns to idle
mode.
10
Memory
Memory overview
This telephone can store up to 13 (3 one-touch and 10 two-touch)
telephone numbers in memory locations for quick dialing. Each
memory location can store a number that is up to 32 digits. You
can write number and name information on the directory card that
is attached on the telephone base.
 

  
Write names
or numbers on
directory card
Directory card
Storing a number in a one-touch location
You can store up to 3 telephone numbers in one-touch locations
M1, M2 or M3. Each number can be up to 32 digits.
1. Lift the handset and press PROG,
2. Use the dial pad keys to enter the number you want to store.
Press PAUSE/REDIAL once to store a 3-second pause in the
dialing sequence, twice for a 6-second pause and so on.
- OR -
Press PAUSE/REDIAL to store the last number dialed.
3. Press a one-touch memory location ( M1, M2, M3) where you
want the number to be stored.
Reviewing a number stored in a one-touch
location
1. Lift the handset and hold the switch hook on the handset.
2. Press a one-touch key ( M1, M2, M3). The number stored in the
one-touch location is displayed on the screen.
16
Appendix
Troubleshooting
If you have difficulty with your telephone, please try the
suggestions below. For customer service or technical support,
please call our Customer Service Hotline or Technical Inquiry
Hotline in your respective country. Please refer to the hotline
number printed on the back cover page.
My telephone does not work at all.
• Make sure the other end of the telephone line cord is plugged
firmly into the wall jack.
• Disconnect the telephone base from the wall jack and plug
in a working telephone. If this telephone does not work, the
problem is probably in the wiring or the local service. Call the
local telephone company (charges may apply).
I cannot get a dial tone.
• First try all th e suggestions above.
• Inspect the coiled handset cord. Make sure both ends are
connected firmly.
• Make sure the switch hook is not held.
• Make sure the telephone line cord is plugged in properly.
• Disconnect the telephone base from the telephone jack and
connect a different telephone. If there is no dial tone on the
telephone either, the problem is in your wiring or local service.
Contact your local telephone company (charges may apply).
The telephone does not ring when there is an incoming call.
• Make sure the Ringer is on (page 14).
• Make sure the telephone line cord is plugged in properly.
• Make sure your handset is correctly put on the telephone base.
• There may be an extension telephone on the telephone line to
allow it to ring simultaneously. Try unplugging it.
• If the other telephones in your home are having the same
problem, the problem is in the wiring or local service. Contact
the local telephone company (charges may apply).
• Other electronic products can cause interference to your
telephone. Try installing your telephone as far as possible from
the following electronic devices: wireless routers, radio, radio
towers, pager monitors, televisions, VCRs, personal computers,
kitchen appliances and other cordless telephones.
• Test a working telephone at the same telephone jack. If
another telephone has the same problem, the problem is in the
telephone jack. Contact your local telephone company (charges
may apply).
I cannot dial out.
• First, try all t he above suggestions.
• Make sure th ere is a dial tone before dialing.
22
