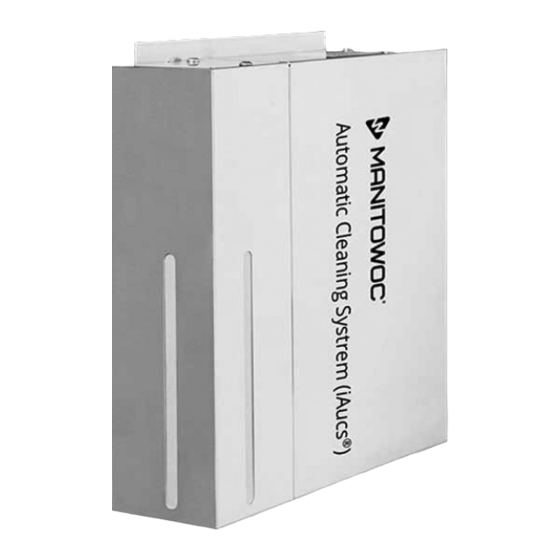

- Page 1 Automatic Cleaning System Installation, Operation and Maintenance Manual Caution Read this instruction before operating this equipment. Original Document Part Number 000009036 Rev03 6/18...
-
Page 3: Safety Notices
Safety Notices Warning Follow these electrical requirements during installation of Safety Notices this equipment. Read these precautions to prevent personal injury: • All field wiring must conform to all applicable codes of the authority having jurisdiction. It is the responsibility •... - Page 4 Warning DANGER Follow these precautions to prevent personal injury while Follow these precautions to prevent personal injury operating or maintaining this equipment: during use and maintenance of this equipment: • Read this manual thoroughly before operating, • It is the responsibility of the equipment owner to installing or performing maintenance on the perform a Personal Protective Equipment Hazard equipment.
-
Page 5: Table Of Contents
Connection to Ice Machine ................... 11 Section 3 Operation Determine Type of Solution Needed ................15 Manitowoc Ice Machine Cleaner .................. 15 Manitowoc Ice Machine Sanitizer ................. 15 Installing/Replacing Cleaner or Sanitizer Bottles .............. 15 Indigo® NXT Model Procedures ..................16 Indigo®... -
Page 6: Part Number 000009036 Rev03
Table of Contents (continued) THIS PAGE INTENTIONALLY LEFT BLANK Part Number 000009036 Rev03 6/18... -
Page 7: General Information
Location IR0906A IR0906W IR0996N ID0976C ID0906A ID0906W ID0906WM ID0996N IY0976C The iAuCS® is mounted on the wall near the ice machine, or IY0906A IY0906W IY0906WM IY0996N ---- on the bin with the included bracket and hardware. ID1002A ID1003W ID1092N... - Page 8 General Information Section 1 THIS PAGE INTENTIONALLY LEFT BLANK Part Number 000009036 Rev03 6/18...
-
Page 9: General
115/1/60 Notie 208-230/1/60 The iAuCS® accessory must be protected if it will be Line voltage is obtained from the ice machine. Refer to the subjected to temperatures below 32°F (0°C). Failure Model/Serial plate on the ice machine and iAuCS® to verify caused by exposure to freezing temperatures is not both voltages are the same. -
Page 10: Height Requirement
Installation Section 2 HEIGHT REQUIREMET MOUTIG Either the base or the top of the iAuCS® accessory must Paros be within 2" (5 cm) of the base of the ice machine. Do not 1/2" PVC CNnduto mount the iAuCS® unit too high or too low. -
Page 11: Connection To Ice Machine
MNunotng oN Wall diagram for the ice machine you are working on. The iAuCS® is mounted to the wall using the two key slots in 2. Remove the front, top, and right side panels from the ice the back wall of the accessory. Screw fasteners (not supplied) machine. - Page 12 B. Allow front of water trough to drop as you pull 2. Install conduit from the iAuCS® unit to the ice machine. forward to disengage the rear pins. A pulling elbow is recommended for easier routing of the vinyl tubing and modular wire.
- Page 13 Section 2 Installation 3. Locate and remove either the membrane material or the 5. Determine the amount of tubing required in the iAuCS® plug from the ice machine. control box and cut off the excess tubing. 4. Apply food grade silicone and install Y connector through 6.
- Page 14 Installation Section 2 THIS PAGE INTENTIONALLY LEFT BLANK Part Number 000009036 Rev03 6/18...
-
Page 15: Operation
Refer to the ice machine The iAuCS® accessory will dispense Cleaner OR Sanitizer. It installation operation and maintenance manual for cannot dispense both at the same time. -
Page 16: Indigo® Nxt Model Procedures
The dispense pump requires priming after initial installation, INDIGO® NXT AUTOMATIC OPERATION or if the hose between the iAuCS® reservoir and pump has been pumped dry or the tubing between the iAuCS® pump The following occurs when the ice machine is in ice making and the ice machine has been pumped dry. -
Page 17: Indigo® Nxt Manual Start Operation
3. Repeat the following a minimum of two times: cycle will resume from the beginning of the washing cycle and automatically start ice making when the clean cycle is A. Navigate to iAuCs® on the touchscreen and select : complete. Menu/Service/iAuCs®. -
Page 18: Indigo® Model Procedures
The dispenser pump requires priming after initial installation, INDIGO® MODEL AUTOMATIC OPERATION or if the hose between the iAuCS® reservoir and pump has been pumped dry or the tubing between the iAuCS® pump The following occurs when the ice machine is in ice making and the ice machine has been pumped dry. -
Page 19: Indigo® Model Changing The Solution Type
Clean Mode. Do not use 1 gallon bottles of Cleaner or Sanitizer on the iAuCS® accessory. The iAuCS® pump energizes automatically to add cleaner or sanitizer to the ice machine. Use the following procedure to flush the system prior to... -
Page 20: Removal From Service/Winterization
A failure of this nature is not covered by the warranty. If the iAuCS® is to be removed from service for extended periods, or if it is to be exposed to ambient temperatures 32°F (0°C) or below, follow this procedure:... - Page 24 MANITOWOC ICE 2110 SOUTH 26TH STREET, MANITOWOC, WI 54220 844-724-2273 WWW.MANITOWOCICE.COM WWW.WELBILT.COM Welbilt provides the world’s top chefs, and premier chain operators or growing independents with industry leading equipment and solutions. Our cutting-edge designs and lean manufacturing tactics are powered by deep knowledge, operator insights, and culinary expertise.
