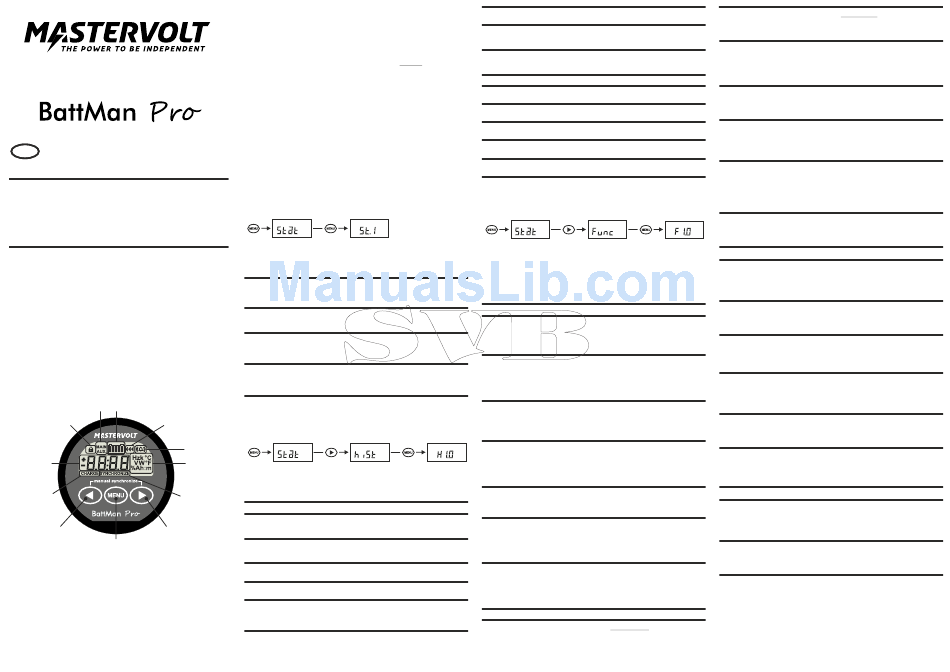

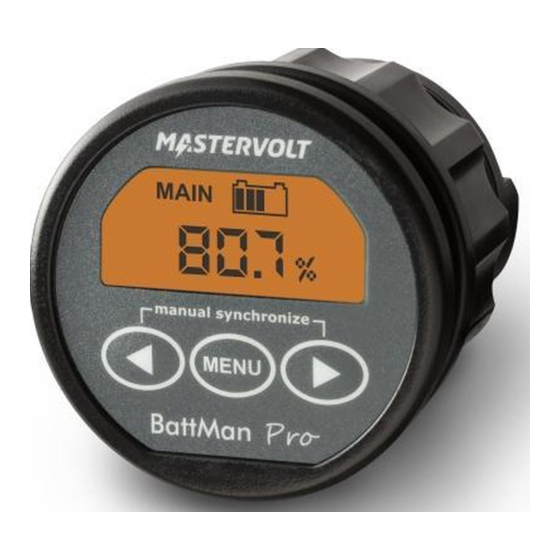

High precision battery monitor

Advertisement

Quick Links

High Precision Battery Monitor
EN
EN
Owner's manual
Thank you for purchasing a Mastervolt Battery
Monitor.
Please read this owner's manual for information
about using the product correctly and safely.
Keep this owner's manual close to the battery
monitor for future reference.
Mastervolt International BV
Snijdersbergweg 93, 1105 AN Amsterdam,
The Netherlands
www.mastervolt.com
Before proceeding with this owner's manual, please make
sure you have carefully read the enclosed installation and
quick start guide as well!
1. BattMan Pro display and control overview
4 5
3
6
7
2
8
1
9
12
10
11
1. Charge battery indicator
2. Numeric value indicator field
3. Setup lock / Master lock indicator
4. Main battery or Auxiliary battery indicator
5. State-of-charge bar
6. Charging in progress indicator
7. Alarm activated indicator
8. Readout units
9. Synchronize indicator
10. Next value or Right key (>)
11. Menu key
12. Previous value or Left key (<)
2. Synchronisation
In order to keep your battery monitor delivering accurate status information about your
battery, it is important to regularly synchronize your battery monitor with your battery. As
explained in the quick start guide, a synchronisation step is also needed before you can
actually use your battery monitor. During operation, the battery monitor automatically
indicates when a synchronisation is required, by displaying the message SYNCHRONIZE.
A synchronisation step means nothing more than performing a complete charge cycle on
your battery. A charge cycle will be considered complete when all discharged energy is
restored in the battery and Auto-sync parameters F1.0, F1.1 and F1.2 (see chapter 5) are
met. This typically means : when the battery charger switches to float mode. By meeting
these conditions, the battery is considered full, which will be indicated by a flashing FULL
message on the display. Besides this, the State-of-charge readout will be set to 100% and
the Amphour readout reset to 0Ah. The FULL message will disappear when a key is
pressed, or automatically, when the battery starts discharging again.
Performing synchronisations regularly is also important to keep your battery healthy and to
increase it's lifetime. You will notice that if you are often performing full charge cycles
yourselves, the battery monitor will most likely not display the SYNCHRONIZE message,
since the battery is already kept in good sync with the battery monitor.
Besides automatic synchronisations based on meeting the Auto-Sync Functions, you can
also manually synchronize the battery monitor with your battery when you are sure your
battery is fully charged. This can be accomplished by pressing both < and > keys
simultaneously for three seconds. After these three seconds, the flashing FULL message
appears on the the display just like when it is automatically synchronized.
3. Status menu
The Status menu is a read only menu that shows the battery monitor's current status of
several items. This menu can be accessed by the following sequence:
[3 sec]
[1x]
When the Status menu is entered, you can use the < and > keys to browse through the
different status items. By pressing the MENU key, the selected status item can be viewed.
Pressing the MENU key again, will then step back to the Status menu. From any menu
position, the Normal Operating Mode can be accessed again by pressing the MENU key
for 3 seconds. The following Status menu items are available :
St.1
Alarm Status. When multiple alarms are activated, use the < or > keys to browse
through the currently active alarms. When no alarms are activated, this item
displays "----".
St.2
Days running. The number of days the battery monitor is operating to monitor your
battery. This item resets when a battery reset is executed (see Reset menu).
Days since last synchronized. The number of days the battery monitor has not
St.3
been synchronized. This item resets when the battery monitor is synchronized or
when a battery reset is executed (see Reset menu).
St.4
Charge Efficiency Factor (CEF). The charge efficiency factor used by the battery
monitor. Depending on the value set in Function F5.6, this item displays the
automatically calculated CEF or the manually set CEF.
4. History menu
The History menu is a read only menu that shows the battery monitor's History data.
History data are special events that are stored in internal memory. This menu can be
accessed by the following sequence :
[3 sec]
[1x]
[1x]
When the History menu is entered, you can use the < and > keys to browse through the
different History items. By pressing the MENU key, the selected History item can be
viewed. Pressing the MENU key again, will then step back to the History menu. From any
menu position, the Normal Operating Mode can be accessed again by pressing the MENU
key for 3 seconds. The following History menu items are available :
H1 : BATTERY HISTORY :
H1.0
Average discharge in Ah. This number will be recalculated after each
synchronization.
H1.1
Average discharge in %. This number will be recalculated after each
synchronization.
H1.2
Deepest discharge in Ah.
H1.3
Deepest discharge in %.
H1.4
Total Amphours removed. The total number of Amphours removed from the
battery. When exceeding 10000Ah, the units are kAh and the value displayed
must be multiplied by 1000.
H1.5
Total Amphours charged. The total number of Amphours charged to the battery.
These Amphours are not compensated by the Charge Efficiency Factor (CEF).
When exceeding 10000Ah, the units are kAh and the value displayed must be
multiplied by 1000.
H1.6
Number of cycles.
H1.7
Number of synchronizations. This is the number of times the battery is fully
charged meeting the Auto-sync Functions.
H1.8
Number of full discharges. The number of times the battery has been fully
discharged reaching a State-of-charge of 0.0%.
H2 : ALARM HISTORY
H2.0
Number of Low Battery alarms.
H2.1
Number of Main battery low voltage alarms.
H2.2
Number of Auxiliary battery low voltage alarms.
H2.3
Number of Main battery high voltage alarms.
H2.4
Number of Auxiliary battery high voltage alarms.
5. Function setup menu
In the Function setup menu, your battery monitor can be adjusted to fit into your system.
Lots of parameters, called Functions, can be set according to your needs. This menu can
be accessed by the following sequence :
[3 sec]
[2x]
[1x]
When the Function setup menu is entered, you can use the < and > keys to browse
through the different Functions. By pressing the MENU key, the selected Function value
can be viewed. The < and > keys can now be used to change this value. Pressing the
MENU key again, will then step back to the Function menu. From any menu position, the
Normal Operating Mode can be accessed again by pressing the MENU key for 3 seconds.
This will also save any Function value changes to internal memory. When no keys are
pressed for 90 seconds while operating in the Function setup menu, the battery monitor
will automatically return to the Normal Operating Mode again without saving any Function
value changes.The following Functions are available :
F1 : SYSTEM PROPERTIES
F1.0
Charger's float voltage (Auto-sync parameter). This value must be equal to your
battery charger's float voltage. which is the last stage of the charging process. In
this stage the battery is considered full.
Default : 13.2V
Range : 8.0V - 33.0V
Step size : 0.1V
F1.1
Charger's float current (Auto-sync parameter). When the charge current is below
this percentage of the battery capacity (see Function F5.0), the battery will be
considered as fully charged. Make sure this Function value is always greater than
the minimum current at which the charger maintains the battery or stops charging.
Default : 2.0%
Range : 0.5 - 10.0%
Step size : 0.1%
F1.2
Auto-sync time (Auto-sync parameter). This is the time the Auto-sync parameters
F1.0 and F1.1 must be met in order to consider the battery as fully charged.
Default : 240sec
Range : 5 - 300sec
Step size : variable
F1.3
Discharge floor. This is the reference point at which the battery needs to be
recharged. When the State-of-charge percentage falls below this value the
Charge battery indicator starts flashing while the time remaining readout shows
0:00 and the State-of-charge bar is empty.
Default : 50%
Range : 0 - 99%
Step size : 1%
F1.4
Battery temperature. In this Function the average battery temperature can be
adjusted.
Default : +20°C
Range : -20..+50°C
Step size : 1°C
F1.5
Time remaining averaging filter. Specifies the time window of the moving
averaging filter. There are three settings, where setting 0 gives the fastest Time
remaining readout response and setting 2 the slowest. The best setting will
depend on the type of battery load and your personal preference.
Default : 1
Range : 0 - 2
Step size : 1
F1.6
Auto-sync sensitivity. Only change this setting when F1.0, F1.1 and F1.2 are set
correctly and automatic synchronization still fails. If automatic synchronization
takes too long or does never occur, lower this value. When the battery monitor
synchronizes too early, increase this value.
Default : 5
Range : 0 - 10
Step size : 1
F2 : LOW BATTERY ALARM SETTINGS
F2.0
Low battery alarm On (% SOC). When the State-of-charge percentage has fallen
below this value, the alarm relay will be activated (depending on F2.6).
Default : 50%
Range : 0 - 99%
Step size : 1%
F2.1
Low battery alarm On (Volts). When the battery voltage has fallen below this
value, the alarm relay will be activated (depending on F2.6).
Default : 10.5V
Range : 8.0 - 33.0V
Step size : 0.1V
F2.2
Low battery alarm Off (% SOC). When the State-of-charge percentage has risen
above this value and the alarm relay was activated, the alarm relay will deactivate
again. When "FULL" is selected, the alarm relay is deactivated when the Auto-
sync parameters are met.
Default : 80%
Range : 1 - 100% / FULL
Step size : 1%
F2.3
Low battery alarm On delay time. This is the time the Low battery alarm On
conditions, F2.0 and F2.1, must be met before the alarm is activated.
Default : 10sec
Range : 0 - 300sec
Step size : variable
F2.4
Minimum 'Alarm On' time. Minimum time that the alarm relay stays activated even
if the State-of-charge percentage has risen above the Low battery alarm Off
setpoint (F2.2). Function units are hours:minutes.
Default : 0:00
Range : 0:00 - 12:00
Step size : variable
F2.5
Maximum 'Alarm On' time. Maximum time that the alarm stays activated even if
the the State-of-charge percentage is still below the Low battery alarm Off setpoint
(F2.2). The value "-:--" indicates an unlimited time, and the relay will stay activated
until the State-of-charge percentage has risen above the Low battery alarm Off
setpoint (F2.2). Function units are hours:minutes
Default : -:- -
Range : 0:00 - 12:00 / -:- -
Step size : variable
F2.6
Enable Low battery alarm / Use contact. Select "OFF" to disable the low battery
alarm. Select "[1]" to use the battery monitor's internal alarm relay.
Default : [1]
Range : OFF / [1]
F3 : LOW VOLTAGE ALARM SETTINGS
F3.0
Main battery low voltage alarm On. When the Main battery voltage falls below this
value, the message "Lo" will appear on the display and the selected alarm relay
will be activated (depending on F3.2).
Default : 10.5V
Range : 8.0 - 33.0V
Step size : 0.1V
F3.1
Main battery low voltage alarm Delay. This is the time the Main battery low voltage
alarm On condition, F3.0, must be met before the alarm is activated.
Default : 10sec
Range : 0 - 300sec
Step size : variable
F3.2
Enable Main battery low voltage alarm / Use contact. Select "OFF" to disable the
Main battery low voltage alarm. Select "[1]" to use the battery monitor's internal
alarm relay.
Default : OFF
Range : OFF / [1]
F3.3
Auxiliary battery low voltage alarm On. When the Auxiliary battery voltage falls
below this value, the message "Lo" will appear on the display and the selected
alarm relay will be activated (depending on F3.5).
Default : 10.5V
Range : 8.0 - 33.0V
Step size : 0.1V
F3.4
Auxiliary battery low voltage alarm Delay. This is the time the Auxiliary battery low
voltage alarm On condition, F3.3, must be met before the alarm is activated.
Default : 10sec
Range : 0 - 300sec
Step size : variable
F3.5
Enable Auxiliary battery low voltage alarm / Use contact. Select "OFF" to disable
the Auxiliary battery low voltage alarm. Select "[1]" to use the battery monitor's
internal alarm relay.
Default : OFF
Range : OFF / [1]
F4 : HIGH VOLTAGE ALARM SETTINGS
F4.0
Main battery high voltage alarm On. When the Main battery voltage rises above
this value, the message "Hi" will appear on the display and the selected alarm
relay will be activated (depending on F4.2).
Default : 16.0V
Range : 10.0 - 35.0V
Step size : 0.1V
F4.1
Main battery high voltage alarm Delay. This is the time the Main battery high
voltage alarm On condition, F4.0, must be met before the alarm is activated.
Default : 5sec
Range : 0 - 300sec
Step size : variable
F4.2
Enable Main battery high voltage alarm / Use contact. Select "OFF" to disable the
Main battery high voltage alarm. Select "[1]" to use the battery monitor's internal
alarm relay.
Default : OFF
Range : OFF / [1]

Advertisement

loading
Need help?

Need help?

Do you have a question about the BattMan Pro and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Mastervolt BattMan Pro

  • Page 1 CEF or the manually set CEF. 1. BattMan Pro display and control overview below this value, the message “Lo” will appear on the display and the selected Default : 2.0%...
  • Page 2 During this period Mastervolt will repair the defective RoHS Directive 2002/95/EC F5 : ‘MAIN’ BATTERY PROPERTIES product free of charge. Mastervolt is not responsible for any costs of the transport of this Default : 0 Range : 0 / 1 product.
  • Page 3: Installation Guide

    Alarmkontakt (Anschluss 1) contact sec alarme (borne 1) potential free alarm contact (terminal 2) potentiaal vrij alarm contact (terminal 2) potentialfreier Alarmkontakt (Anschluss 2) contact sec alarme (borne 2) Mastervolt BattMan Pro installation guide rev2endf - Printed in The Netherlands...
  • Page 4 QUICK START GUIDE BEKNOPTE HANDLEIDING SCHNELLSTARTANLEITUNG GUIDE DE DEMARRAGE RAPIDE This column decribes the absolute minimum number of required steps in order to Deze kolom beschrijft het minimum aantal stappen dat ondernomen moet worden Dieser Abschnitt beschreibt alle Installationsschritte, die mindestens benötigt Cette rubrique décrit le nombre minimum absolu des étapes requises pour installer setup your Battery Monitor.
  • Page 5: General Battery Precautions

    General battery precautions : 1. Have someone within range of your voice or close enough to come to your aid when you work near a lead -acid battery. WARNING 2. Have plenty of fresh water and soap nearby in case battery acid contacts skin, clothing, or eyes. 3.
