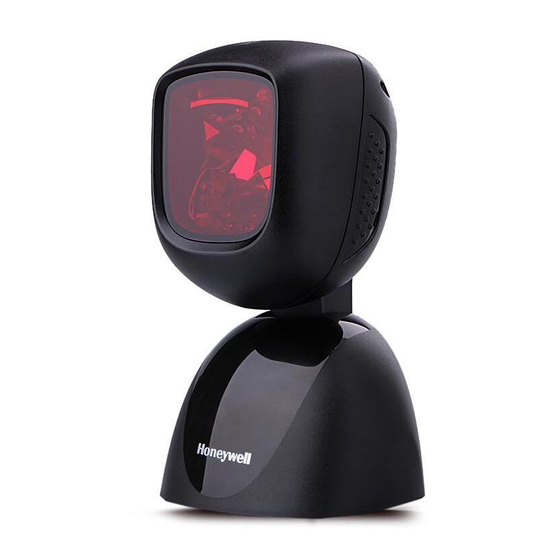

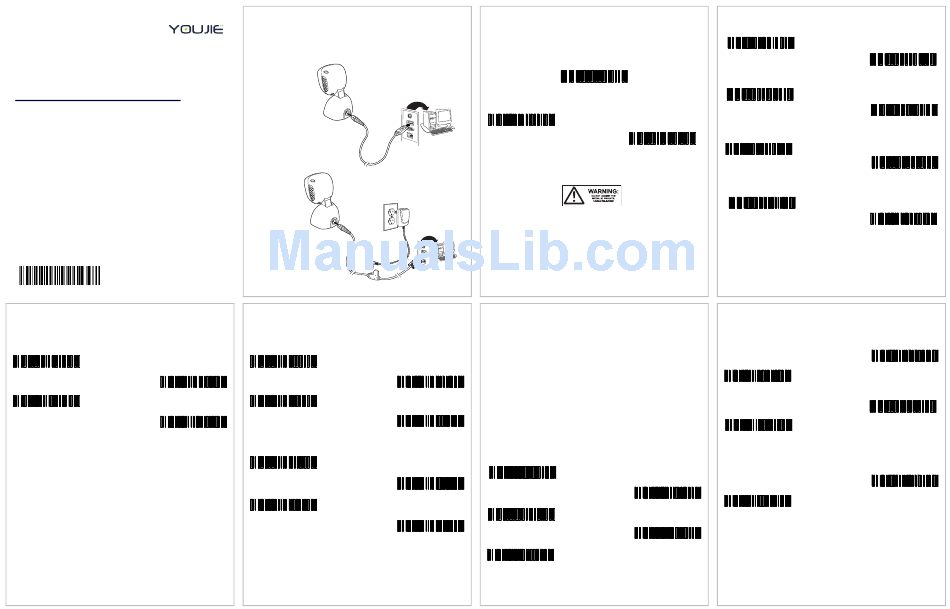

Youjie YJ5900 Quick Start Manual

YJ5900

Bar Code Scanner

Quick Start Guide

YJ5900-QS Rev A
Prefix
Scan one of the following bar codes to program your scanner to add
or remove a start of text character, or AIM or Nixdorf identification
characters before each bar code.
³ 1 1 6 6 1 5
STX Prefix On
³ 1 1 6
STX Prefix Off
³ 1 0 7 9 1 5
AIM ID Prefix On
³ 1 0 7
AIM ID Prefix Off
Getting Started
Turn off the computer's power before connecting the scanner, then
power up the computer once the scanner is fully connected.
Connecting the Scanner
USB:
RS232:
Adapter Rating:
Input: 100-240V AC, 50-60Hz, 0.3A
Output: 5VDC, 1A
Model: 3A-052WP05
8/13
Suffix
Scan one of the following bar codes to program your scanner to add
or remove a carriage return, line feed, tab, or end of text after each
bar code.
³ 1 1 6 6 1 3
CR Suffix On
6 0 5
³ 1 1 6 6 1 2
LF Suffix On
9 0 5
³ 1 1 6 6 1 0
Tab Suffix On
³ 1 1 6 6 1 4
ETX Suffix On
Default Primary Scan Pattern
The primary default scan pattern is omnidirectional and is active
when the scanner starts.
Recall Defaults
The following bar code resets all standard product default settings.
³ 9
Recall Defaults
Interface Selections
³ 3 1 6 4 0 0
USB Keyboard
Emulation
Notice:
Warning: Do not loosen the metallic pin until cable released.
User Configurable Prefix/Suffix
One or two prefix or suffix characters can be added and assigned for
data transmission. Use one of the codes with a 3 code byte
sequence that represents the desired character (see
Assistance, end of document) for your prefix or suffix.
Scan the Enter/Exit Programming bar code to begin. Then scan
the 3 digit decimal equivalent of the ASCII character into the
appropriate character location with the code byte bar codes (see
Code Bytes, end of document). To save, scan the Enter/Exit
³ 1 1 6 6 0 3
Programming bar code again.
CR Suffix Off
Example: To add an asterisk (*) as a prefix, scan the bar codes:
1. Enter/Exit Programming
2. Configurable Prefix #1
³ 1 1 6 6 0 2 3. Code Byte 0
LF Suffix Off
4. Code Byte 4
5. Code Byte 2
6. Enter/Exit Programming
³ 9 9 9 9 9 9
Enter/Exit Programming
³ 1 1 6 6 0 0
Tab Suffix Off
³ 9 0 3 6 0 0
Configurable Prefix #2
³ 1 1 6 6 0 4
ETX Suffix Off
³ 9 0 4 6 0 0
Configurable Suffix #2
Beeper Tones
Scan one of the following bar codes to program your beeper tones.
³ 3 1 8
Normal Tone Normal Tone
9 9 9 9 8
³ 3 1 8
Optional Tone 2
³ 4 1 5 5 5 4
Enable RS232
³ 3 1 8
Optional Tone 4
³ 3 1 8
Optional Tone 6
Supplements
Scan one of the bar codes below to program your scanner for 2 or 5
digit bar code supplements.
Technical
³ 1 0 1
2 Digit Supplements Off
³ 1 0 1
5 Digit Supplements Off
977 (2 Digit) Supplement Required: Turn on this feature when a 2
digit supplement is required for EAN-13 codes that begin with 977.
³ 9 0 3 5 0 0
Configurable Prefix #1
³ 1 0 1
977 Supplements Off
³ 9 0 4 5 0 0
Configurable Suffix #1
5 7 5
³ 3 1 8 5 6 5
Optional Tone 1
5 5 5
³ 3 1 8 5 4 5
Optional Tone 3
5 3 5
³ 3 1 8 5 2 5
Optional Tone 5
5 1 5
³ 3 1 8 5 0 5
No Beep
³ 1 0 1 2 1 7
2 Digit Supplements
On
2 0 7
³ 1 0 1 2 1 6
5 Digit Supplements
On
2 0 6
³ 1 0 1 3 1 4
977 Supplements On
3 0 4
