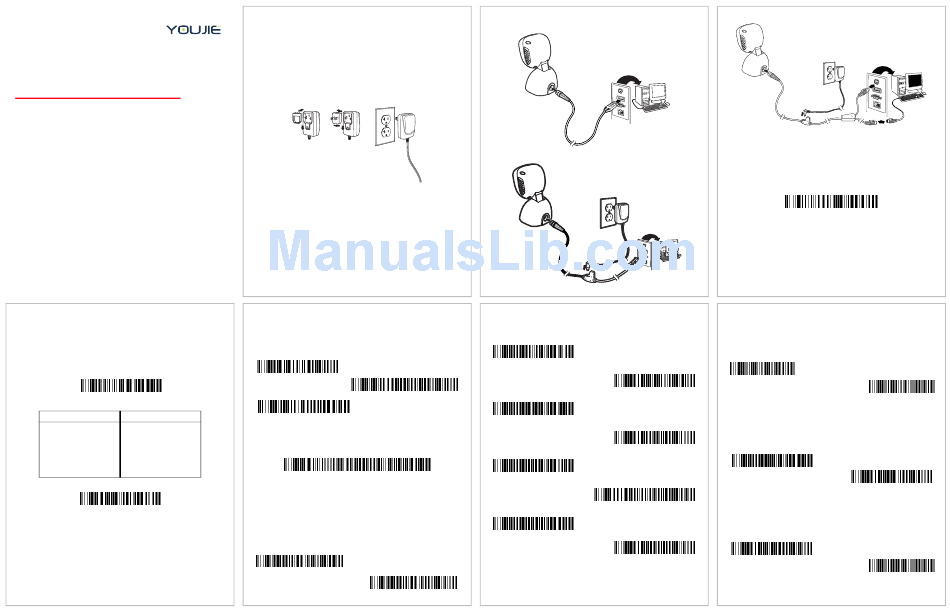

Youjie YJ-HF600 Quick Start Manual

YJ-HF600
Area-Imaging Scanner

Quick Start Guide

YJ-HF600-QS Rev (a)
Keyboard Country
Scan the Program Keyboard Country bar code below, then scan
the numeric bar code(s) from page 2, then the Save bar code to
program the keyboard for your country. As a general rule, the
following characters are not supported by the scanner for countries
other than the United States:
@ | $ # { } [ ] = / ' \ < > ~
Program Keyboard Country
Country Code Scan Country Code Scan
Brazil 16 Turkey F 27
Brazil (MS) 59 Turkey Q 24
Russian 26 Poland 20
Russian (MS) 67 Latin America 14
Russian
68 USA (Default) 0
(Typewriter)
Save
Note: For a complete list of country codes, see the User's Guide for
your product at our website, www.youjieaidc.com.
Note: Refer to your user's guide for information about cleaning your
device.
For localized language versions of this document, go to
www.youjieaidc.com.
Getting Started
Turn off computer's power before connecting the scanner, then
power up the computer once the scanner is fully connected.
Power Supply Assembly (if included)
12/14
Suffix
If you want a carriage return after the bar code, scan the Add CR
Suffix bar code. To add a tab after the bar code, scan the Add Tab
Suffix bar code. Otherwise, scan the Remove Suffix bar code to
remove the suffixes.
Add CR Suffix
Add Tab Suffix
Remove Suffix
Add Code ID Prefix to all Symbologies
Scan the following bar code if you wish to add a Code ID prefix to all
symbologies at once.
Add Code ID Prefix To All Symbologies (Temporary)
Note: For a complete list of Code IDs, see the User's Guide for your
product at our website, www.youjieaidc.com.
Function Code Transmit
When this selection is enabled and function codes are contained
within the scanned data, the scanner transmits the function code to
the terminal. Charts of these function codes are provided in your
User's Guide. When the scanner is in keyboard wedge mode, the
scan code is converted to a key code before it is transmitted.
Enable
(Default)
Connecting the Scanner
USB:
RS232:
Programming the Interface
Scan one of the following bar codes to program your interface.
Keyboard Wedge
IBM PC AT and Compatibles with
CR suffix
USB IBM SurePos
(USB Tabletop Scanner)
Interface
USB Keyboard (Mac)
USB HID Bar Code Scanner
Disable
Keyboard Wedge:
Reading Techniques
Present the bar code to the scanner. The LEDs turn up to read the
code.
Standard Product Defaults
The following bar code resets all standard product default settings.
Scan Modes
When in IR Trigger mode, the scanner is activated when it "sees" a
bar code After the bar code is read, the scan illumination will turn off.
When in IR Trigger - Mobile Phone mode, your scanner is optimized
to read bar codes from mobile phone or other displays.
IR Trigger Mode
(Default)
USB IBM SurePos
(USB Handheld Scanner)
Interface
When in Presentation mode, the scanner is activated when it "sees"
a bar code. After the bar code is read, the scanner continuously
searches for bar codes for 5 seconds. After 5 seconds and no bar
code is read, the scan illumination will turn off. When in
Presentation - Mobile Phone mode, your scanner is optimized to
read bar codes from mobile phone or other LED displays.
USB Keyboard (PC)
Presentation Mode
USB Japanese Keyboard (PC) When in Streaming Presentation - Normal mode, the scanner
leaves the scan illumination on all the time and continuously
searches for bar codes. When in Streaming Presentation - Mobile
Phone mode, your scanner is optimized to read bar codes from
mobile phone or other LED displays.
RS232 Interface
Streaming Presentation -
Normal
Default = IR Trigger mode.
Standard Product Defaults
IR Trigger Mode - Mobile Phone
Presentation Scanning - Mobile
Phone
Streaming Presentation - Mobile
Phone
