PART NAMES AND FUNCTIONS

V
1. Camera/LED module
2. Insertion Tube
3. On-Off/Charging indicator
4. Joystick
5. Live Camera/Video/
Image Preview toggle
6. Zoom/Playback button
7. Image "Freeze Image"/
Back button
8. Image capture/Video start-stop
9. Image Rotation / Down button

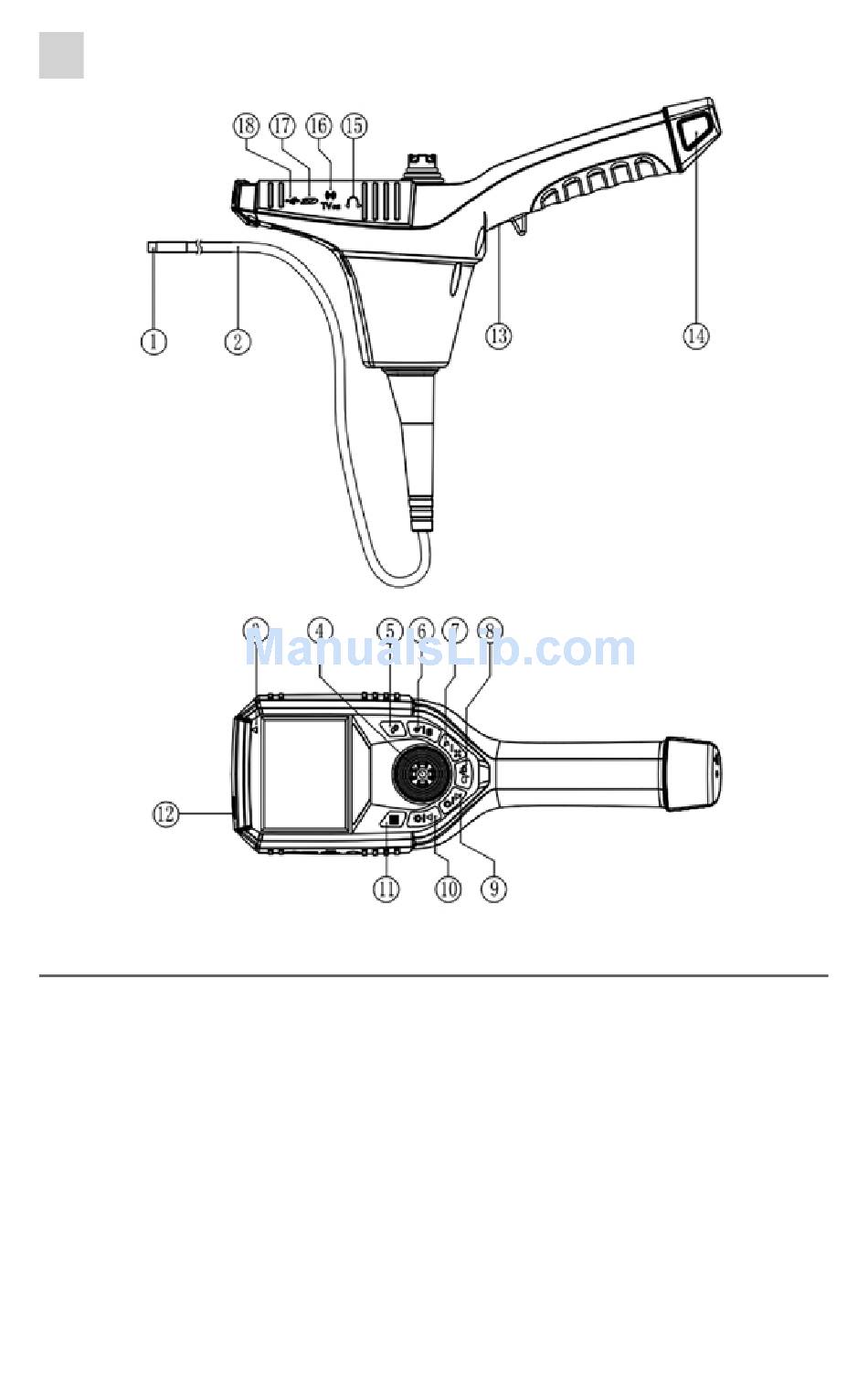

Fig. 5-1 Part names of the unit
10. Brightness control/Up button
11. Access device settings
12. On/Off button
13. Image capture /Video start-stop
14. Battery compartment
15. Headset/mic jack
16. TV Video Output Interface
17. SD card slot
18. Micro USB / battery
recharging port
