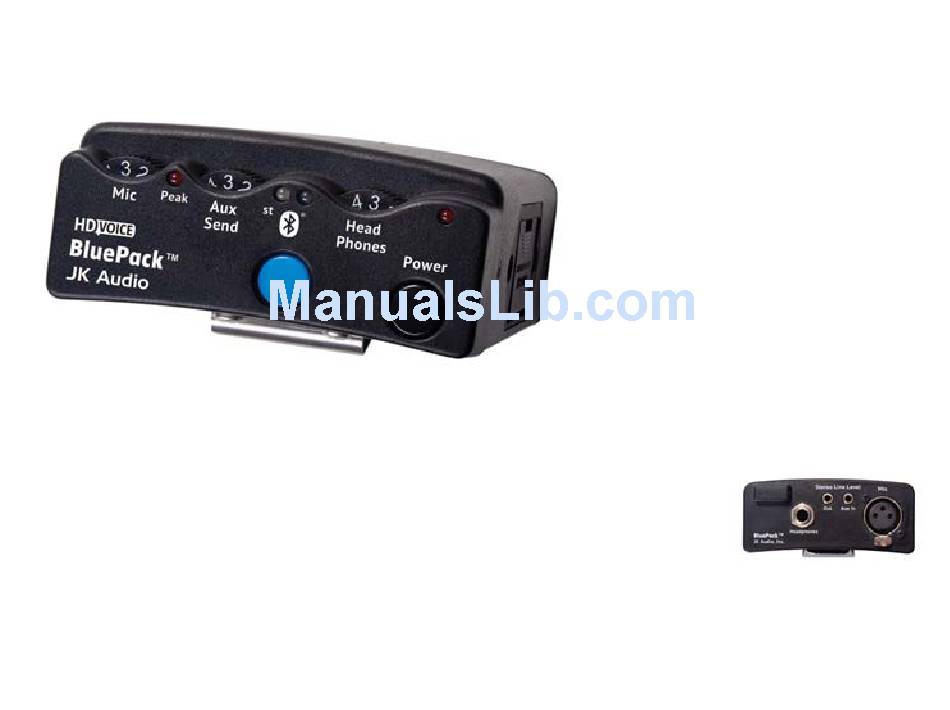

  • Page 1 BluePack ™ Wireless interview tool User Guide JK Audio...
  • Page 2 Welcome Thank You Limited Warranty Thank you for purchasing the BluePack is covered by a 2 year JK Audio BluePack. Please read this warranty to be free from defective guide for instructions on using it. workmanship and materials. To obtain...

  • Page 3: Safety Precautions

    Outerloop 3.5 contains a headphone amplifier that is more powerful than the typical consumer product. JK Audio products are designed for the broadcast industry. The broadcast professional must be able to hear headphone signals over the ambient noise level. From the cheering crowd at a football game to trackside at a car race, the program material or cues must be heard at high volumes without distortion.

  • Page 4: Table Of Contents

    Overview Applications Controls & Indicators Getting Connected Bluetooth Wireless Technology 7 Bluetooth Status LED 8 Pairing 9 Master or Headset Mode 10 Connection History, Disconnecting from a Device, Reconnecting to a Device FAQs Technical Information BluePack Wireless Interview Tool...
  • Page 5 Contents Features HD Voice* 3.5 Mm Stereo Line Input and Output Bluetooth Wireless Technology ¼" Stereo Headphone Jack XLR Mic Input >10 Hours on one 9 Volt Alkaline Battery HD Voice While standard phone calls have a narrow bandwidth of 300 Hz to 3.4 kHz, HD Voice calls offer 50 Hz to 7 kHz bandwidth.

  • Page 6: Overview

    Overview Truly Mobile Field Reporting BluePack allows live reporter audio on the right channel. This allows on-the-street interviews through you to make a full bandwidth backup a phone or tablet using Bluetooth recording using your favorite recorder. Wireless Technology. Simply pair to...

  • Page 7: Applications

    Compatible Apps subject's hand.  Cinema FV-5 While a smartphone's built-in mic picks  FILMIC PRO up every sound in the area, BluePack   isolates the audio you want and allows LU-Smart  Bluetooth audio recording directly into Movie Pro...

  • Page 8: Controls & Indicators

    The microphone and Aux Send are a combined input. If you see this red LED flashing, you should decrease the <Mic> and/or <Aux Send> input levels. BluePack Wireless Interview Tool...
  • Page 9 4. Stereo LED (Listen-Only) 7. Power Indicator The <st> LED flashes Red when LED indicates when the power the BluePack has a stereo listen- is turned on and dims when the only (Headset) audio connection battery charge is getting low.

  • Page 10: Getting Connected

    XLR your full bandwidth microphone mic input, 3.5 mm Aux Send input signal on the left channel and and the Headset Interface audio. the Bluetooth audio on the right channel. BluePack Wireless Interview Tool...
  • Page 11 Getting Connected This stereo output jack allows you 4. Mic Input to make a full bandwidth recording Connect your dynamic microphone using your favorite recorder for to the XLR jack. This device will transfer back at the station or over not provide phantom power for a the web.

  • Page 12: Bluetooth Wireless Technology

    After bonding is complete, the other Bluetooth wireless technology connection to that device is secure. enabled devices within range that BluePack returns to Idle Mode when a might also be in Pairing Mode. connection is dropped or terminated. Once the pairing process is complete the unique device ID is stored in Connection History.

  • Page 13: Bluetooth Status Led

    Bluetooth Wireless Technology Bluetooth Status LED The blue LED on the front of the unit flashes in different sequences to indicate the current connection status. Pairing 100ms off, 100ms on Idle 2s off, 200ms on Connected 2s off, 1s on HD Connected 2s off, 4s on Bluetooth Wireless Technology...
  • Page 14 ID. Depending on the press the blue <MFB> button on gender of model, the device ID is the BluePack for at least 6 seconds. "JKBPxxxx" where: xxxx = last four Upon release, the blue LED should digits of the serial number.
  • Page 15 Green when it is in Master mode. Red when it is in Headset mode. The <st> LED only indicates whether the BluePack is in Master or Headset Mode on Startup and when the Master/Headset role is switched. Bluetooth Wireless Technology...
  • Page 16 Bluetooth Wireless Technology Disconnecting from a Device Connection History BluePack retains a history of the To disconnect from the Bluetooth 16 most recent devices. To clear device, simply press the <MFB> and connection history and return to hold for 5 seconds or simply power the unit off.

  • Page 17: Faqs

    FAQs What is the range of the Can I pair my BluePack to Bluetooth transmitter/ two cell phones and send receiver? my audio to two locations simultaneously? BluePack will transmit and receive audio signals up to 65 feet from your No, your BluePack can only connect Bluetooth device.
  • Page 18 This input would be a good place to will be connected to our device as add background music or sound clips if the BluePack were a headset. during a live interview that is being So you need to use a microphone...
  • Page 19 If this is the first time you have paired more control over the call, such as the BluePack with this cell phone, volume, accept/reject/end a call. make certain you are in Pairing Mode A2DP (Advanced Audio Distribution and not Idle Mode.

  • Page 20: Technical Information

    Technical Information Specifications Input Impedance / Level Female XLR Mic: 2k ohms / -34 dBu nom. 1/8” (3.5mm) Stereo Line: 20k ohms / -10 dBu nom. Output 1/8” (3.5mm) Stereo: 100 ohms / -10 dBu nom. Headphone 1/4” Stereo: 8 ohms / ½ watt per channel Bluetooth Wireless Technology Standard: Bluetooth 3.0...
  • Page 21 Block Diagram Block Diagram...

  • Page 22: Declaration Of Conformity

    Manufacturer’s Address: 1311 E 6 Street Sandwich, Illinois 60548 USA Declares that the product: Product Name: BluePack™ Wireless Interview Tool Model Numbers: BluePack Conforms to the following Product Specifications: ESD: ESD: EN 61000-3-2, 3-3, 4-3, 4-4, 4-5, 4-6, 4-11 EN 301 489-17 V1.2.1...
  • Page 23 CE marking accordingly: R&TTE Directive 1999/5/EC EMC Directive 89/336/EEC, 92/31/EEC, 93/68/EEC RoHS Directive 2002/95/EC The Technical File containing supporting documentation is maintained at: JK Audio, Inc (Corporate Headquarters) Compliance Manager 1311 E 6th Street Sandwich, Illinois 60548 USA 815-786-2929 phone...
  • Page 24 Toll Free: 1.800.jkaudio Fax: 815.786.8502 www.jkaudio.com © 2018 JK Audio, Inc. All rights reserved. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by JK Audio, Inc. is under license.
