Summary of Contents for Glem CK75UCF

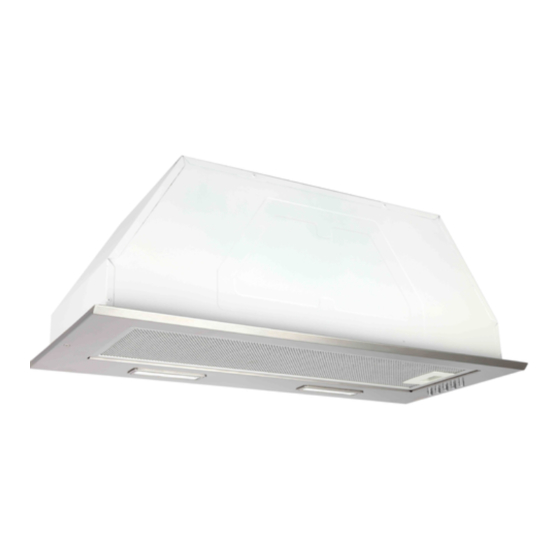

- Page 2 CK53UCF UNDERCUPBOARD RANGEHOOD CK75UCF UNDERCUPBOARD RANGEHOOD...
- Page 3 CONTENTS RECOMMENDATIONS AND SUGGESTIONS CHARACTERISTICS INSTALLATION & USE MAINTENANCE TROUBLE SHOOTING Product Specification & Technical Parameters Model CK53UCF/CK75UCF Rated Voltage 230V Rated Power Frequency 50Hz Light Power 2x2W (LED) Motor Power...
- Page 4 Only a qualified and trained service technician can undertake the work of installation and servicing. Check that the main voltage corresponds to the one indicated on the rating plate fixed inside the hood. Do not connect the hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.) If the hood is used in conjunction with non-electrical appliances (e.
- Page 5 * DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary. WARNING!! In certain circumstances electrical appliances may be a danger hazard. * Do not check the status of the filters while the rangehood is operating. * Do not touch the light bulbs after appliance use.
- Page 6 INSTALLATION & USE Note 1 : On stainless steel hoods, carefully remove the plastic protective film from all exterior surfaces of the hood prior to final installation. Note 2: At least two people will be required to mount the hood. DESCRIPTION / CONNECTIONS The hood is only installed in the Ducting version.
- Page 7 3. Long duct runs, elbows, and transitions will reduce the performance of the hood. Use as few of them as possible. Larger ducting may be required for best performance with longer duct runs. 4. It is recommended that φ150mm round duct is to be used, however a reducer from φ150mm to φ120mm can be ordered supplied should φ120mm be required.
- Page 8 is also advisable to avoid any drastic changes duct cross-section (recommended diameter: 150mm). Fitting under wall unit 1. Before fixing the hood to the unit, drill a hole of 165mm diameter for φ150mm exhaust Ducting or 135mm for φ120mm exhaust Ducting in the wall unit.
- Page 9 OPERATION This hood may be operated using the push button on the face plate. The light switch turns the lamps on and off. The fan switch turns the fan on to three speed settings: 0 – OFF 1 - LOW SPEED 2 - MEDIUM SPEED 3 - HIGH SPEED MAINTENANCE...
- Page 10 3. To remove the charcoal filters, remove the charcoal filter by turning anti-clockwise. LAMPS This rangehood may require two LED lamps (AC 230V, 2W Max) WARNING: Always switch off the electrical supply before carrying out any operation on the appliance. To change lights: 1.
-
Page 11: Trouble Shooting
* Hot water with soap or detergent is all that is usually needed. * Follow all cleaning by rinsing with clear water. Wipe dry with a clean, soft cloth to avoid water marks. * For discolorations or deposits that persist, use a non-scratching household cleanser or stainless steel polishing powder with a little water and a soft cloth. - Page 12 1. Ensure that the plug is put 1. The plug is off from into power socket the power socket. properly. 2. The power cord is 2. Replace the power cord if the damaged. power cord is damaged. The fuse on the PCB Replace the fuse on the PCB board is damaged.
