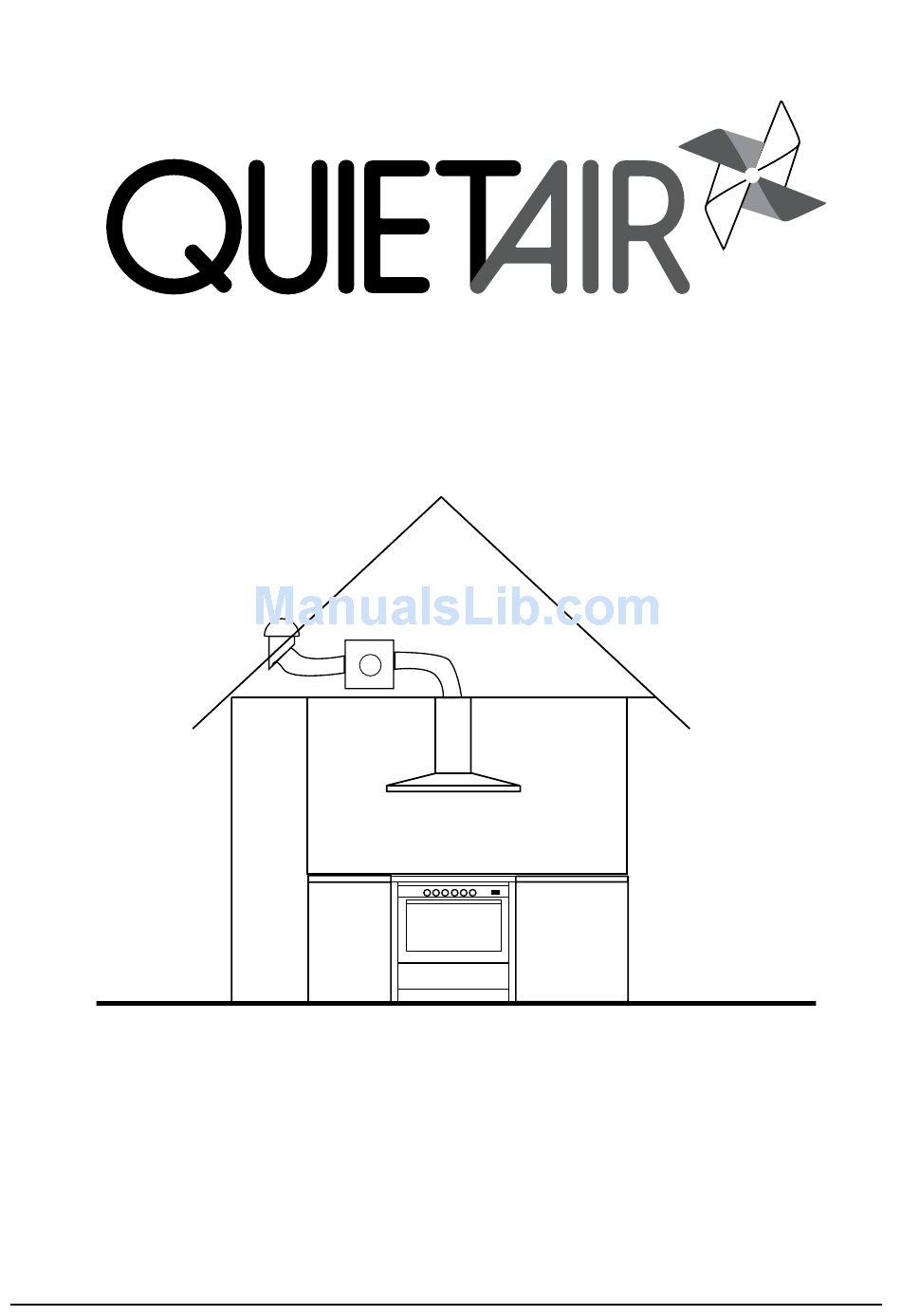

OFF BOARD RANGEHOOD SOLUTIONS by GLEM
INSTALLATION AND OPERATION GUIDE

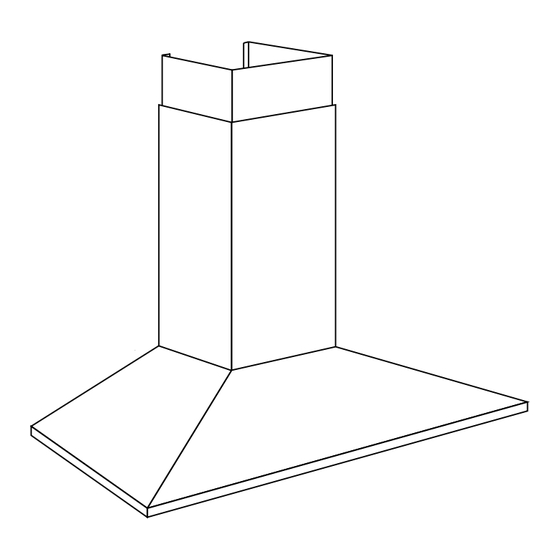

Rangehood models GQA90SC - GQA120TB - GQA90TB - GQA85UC
Quiet Air rangehoods take the noise out of the kitchen.
The fan motor and housing are located separate from the hood. If there isn't a space available in
which to locate the fan motor (such as in an apartment) then this rangehood should be consid-
ered unsuitable for installation.
Call Glem Service on 1 300 307 917 if in doubt.
Quiet Air Rangehoods are a product of Glem Gas Australasia Pty. Ltd.
