1

OVERVIEW

The xPC560B EVB is an evaluation system supporting Freescale MPC560xB
microprocessors. The complete system consists of an xPC56XXMB
Motherboard and an xPC560BADPT Mini-Module which plugs into the
motherboard. Different Mini-Modules are available for evaluating devices with
different footprints in the MPC560xB family of microprocessors. The
evaluation system allows full access to the CPU, all of the CPU's I/O signals,
and the motherboard peripherals (such as CAN, SCI, LIN). The Mini-Module
may be used as a stand-alone unit, which allows access to the CPU, but no
access to the I/O pins or any motherboard peripherals.

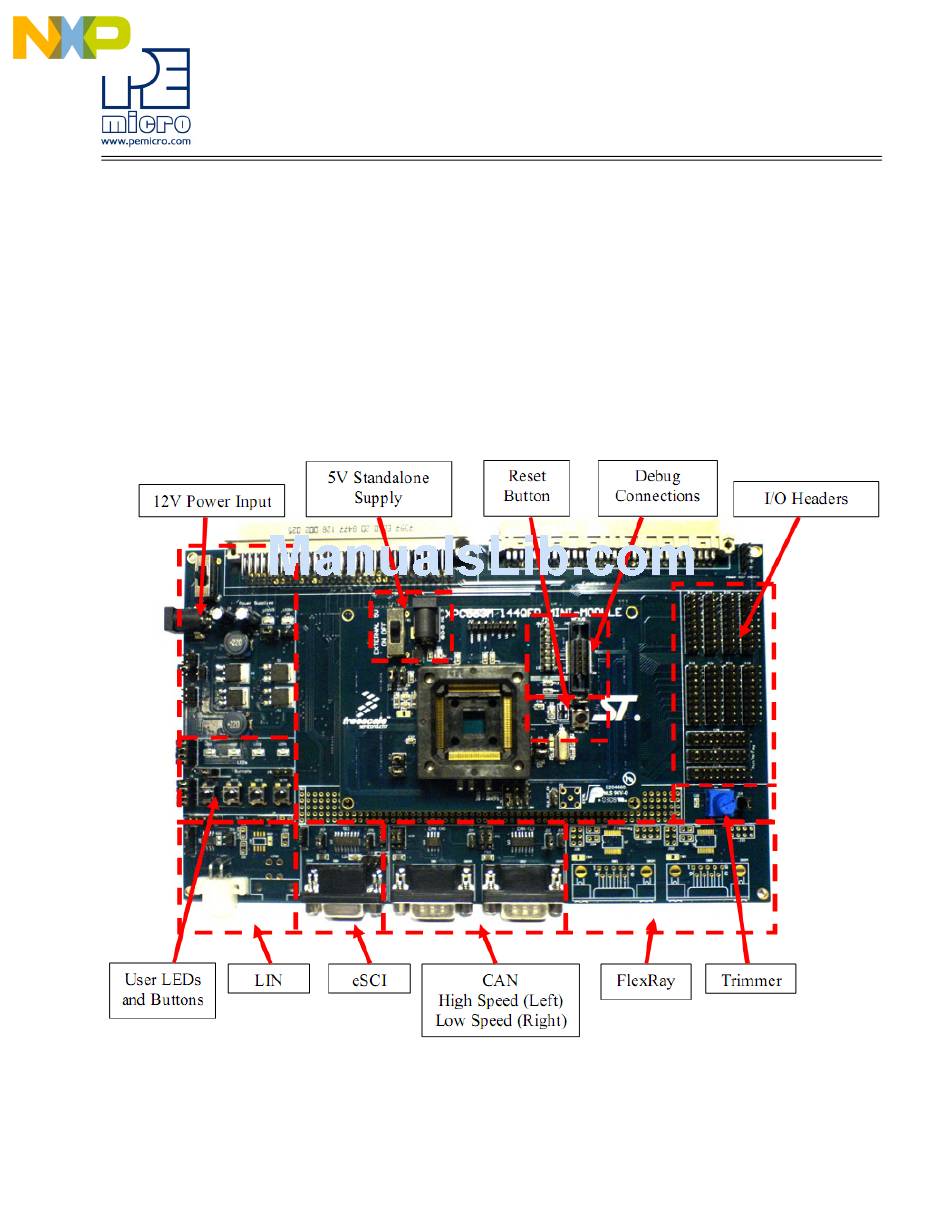

Figure 1-1: Overview of the xPC560B EVB
