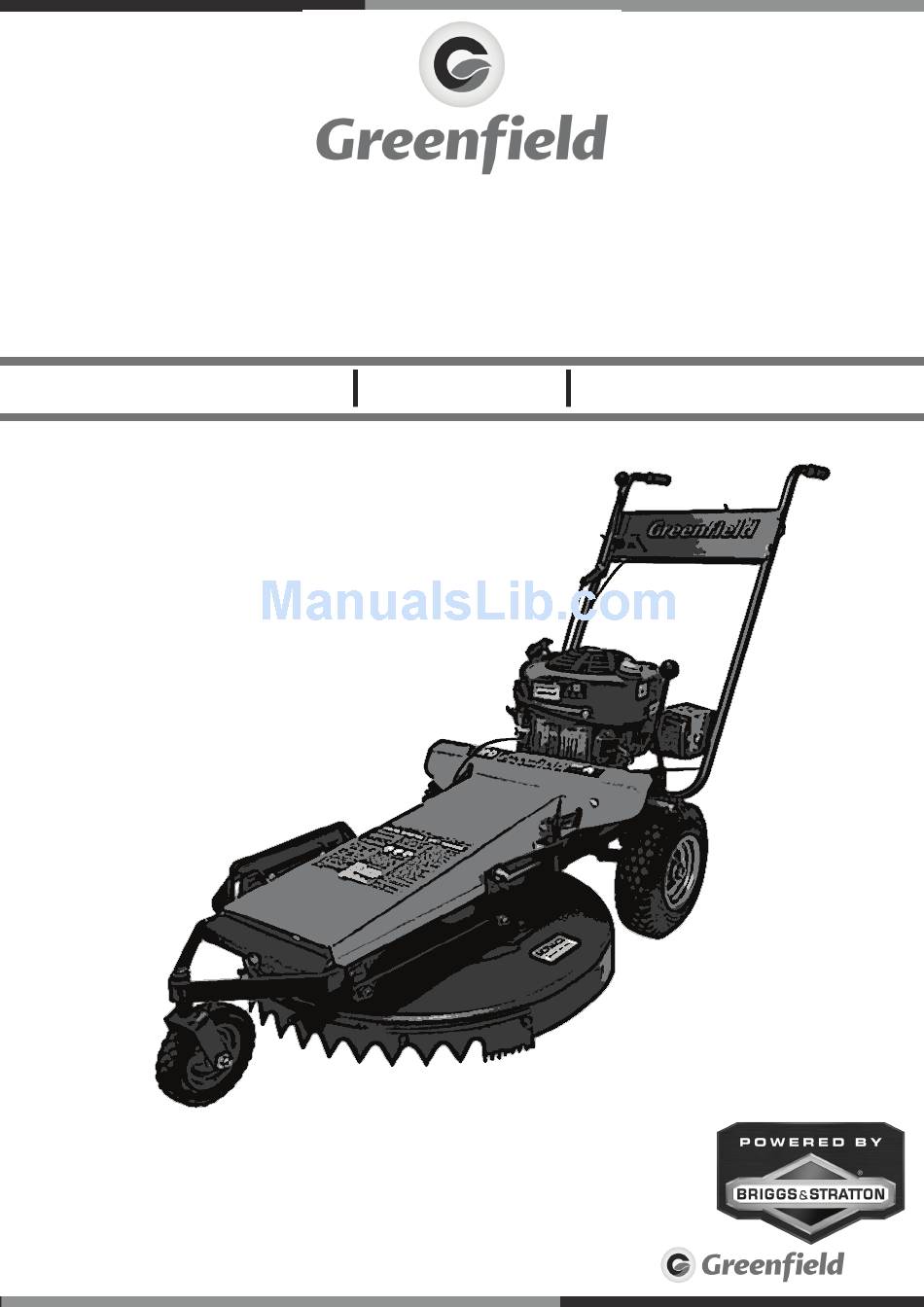

- Page 1 Owners Manual Instructions & Original Parts Listings Model GT04350 I.P.D Slasher Greenfield Mowers Pty Ltd 123 Boundary Rd, Rocklea. QLD 4106 Ph: (07) 3875 9400 F: (07) 3875 9425 E: info@greenfield.com.au www.greenfield.com.au...
-
Page 2: Table Of Contents
Contents Safety Instructions Mowing On Slopes Operating Instructions Maintenance V Belts Blades Cutter Deck Handles, Controls & Covers Engine, Frame & Wheels Warranty... -
Page 3: Safety Instructions
Before operating the mower, read the owners manual carefully. Do not allow children or any person unfamiliar with the safe operating procedure to operate this mower. Your Greenfield has been designed to meet stringent safety stan- dards - but we remind you that a mower is a cutting device - used incorrectly, it may cause personal injury or death. -
Page 4: Mowing On Slopes
15. Watch out for traffic when crossing or operating the mower near roadways. Always mow with the safety grass deflector properly fitted. 16. Disengage the drive to the cutting blades and stop engine: (a) Before refueling. (b) Before removing the grass catcher or any attachment. (c) Before making a height adjustment, unless adjustment is being made from the operators position. -
Page 5: Operating Instructions
Drive The Greenfield I.P.D Slasher can be operated with or without the drive engaged. The drive engagement lever is located on the console panel between the upper handle bars. Shift the lever up and into the catch to disengage the drive. Shift the lever out of the catch and down to engage the drive. -
Page 6: Maintenance
Warning: Persons not trained in the proper procedure to transfer fluids containing acid or do not have the necessary safety equipment on hand in case of a spill or exposure, should not attempt this procedure. Contact the battery manufacturers local agent or an authorized Greenfield dealer. Maintenance Lubrication Change the engine oil after the first five (5) hours. -
Page 7: Belts
Re-oil all pivots after washing. V Belts Inspect both V belts and replace if damaged or worn. Both the drive belt and cutter belt on the Greenfield I.P.D Slasher have automatic tension adjusters. Lubricate the sliding and pivoting mechanisms of these adjusters regularly. -
Page 8: Cutter Deck
3. Release the tension spring from the drive belt idler pulley and slide the pulley back. 4. Remove the drive belt from the pulleys and replace with a Genuine Greenfield GT00383 V Belt. 5. Replace the tension spring to the idler pulley. -
Page 9: Handles, Controls & Covers
Handles, Controls & Covers Index Part Number Description Index Part Number Description GT04335 Handle Bar Assembly GT04324 Latch GT00757 Handle Grip GT10037 Bush GT04325 Rod - Drive GT01567 Belville Washers GT01012 Washer GT02413 Nyloc Nut GT00579 Wave Washer GT20169 Throttle Lever GT00730 Pivot Bush GT02026... -
Page 10: Engine, Frame & Wheels
Engine, Frame & Wheels Index Part Number Description Index Part Number Description GT01069 H.T Belt GT04285 Height Adjuster Lever GT02021 Spring Washer GT04080 Gear Box & Shaft Complete GT01750 Flat Washer GT00760P Flagette Plate GT12022 Extension GT00760 Bearing GT00731 V Pulley GT04305 Cutter Clutch Lever GT01500... -
Page 11: Warranty
Warranty Registration Details Please Record Your Reference This record should be completed and held by the purchaser and presented should service under warranty be required. To register your warranty, please visit www.greenfield.com.au/product-registration/ or alternatively, complete and return the enclosed warranty card. Surname:...
Need help?
Do you have a question about the GT04350 and is the answer not in the manual?
Questions and answers

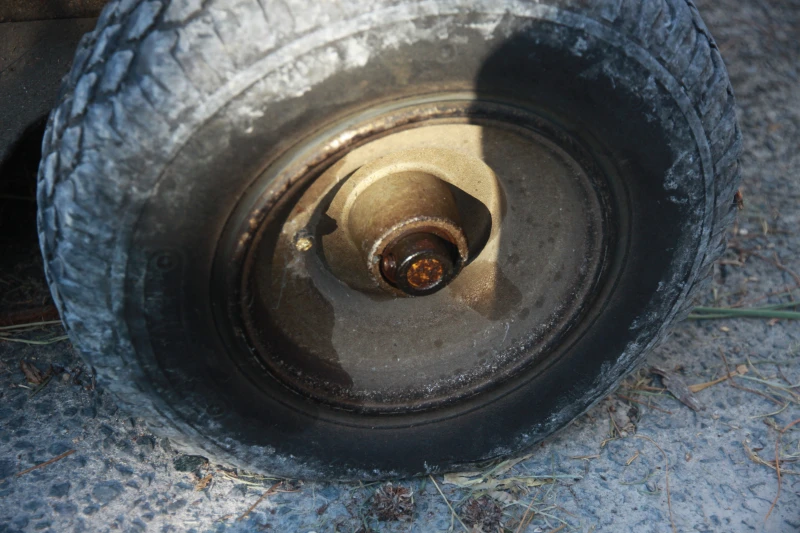

I need to remove a wheel to fix a damaged valve - stopping me from inflating the tyre. How do I remove - I think it's the hub cap (#50?) - the part that holds the wheel on the axle. Is it an allan key? I could not get sufficient purchase to remove the screw. (Enquiring from New Zealand)
