YOKOGAWA 99025 User Manual

User's
99025
Manual
Clamp Adapter

Precautions for Safe Use of the Instrument

When handling the instrument, ALWAYS observe all of the cautionary notes on
safety given below. Yokogawa M&C Corporation is not at all liable for damage
resulting from misuse of this product by the user that is contrary to these cautionary
notes.
The instrument and this manual use the following safety symbols:
Danger! Handle with Care.
This symbol indicates that the operator must refer to an explanation in
the instruction manual in order to avoid the risk of personal injury or
death and/or damage to the instrument.
Double Insulation
This symbol indicates double insulation.
AC Voltage/Current
This symbol indicates AC voltage or current
Ground
This symbol indicates ground (earth)
WARNING
Indicates that there is a possibility of serious personal injury or loss of life if the
operating procedure is not followed correctly and describes the precautions for
avoiding such injury or loss of life.
CAUTION
Indicates that there is a possibility of serious personal injury of damage to the
instrument if the operating procedure is not followed correctly and describes the
precautions for avoiding such injury or damage.
NOTE
Draws attention to information essential for understanding the operation and
features.
WARNING
● Never make measurement on a circuit above 300V AC.
● Do not use the instrument in an atmosphere where any flammable or explosive
gas present.
● Avoid using the instrument if it has been exposed to rain or moisture or if your
hands are wet.
● Do not exceed the maximum allowable input of any measurement range.
● As to current measurement of more than 1000A, do not make measurement
continuously.
The main unit is heated, so there is danger which damages safety.
● Do not use the instrument if there is any damage to the casing or when the
casing is removed.
● Do not install substitute parts or make any modification to the instrument.
WARNING
To avoid damage to the instrument or electric shock!
The restrictions on the maximum voltage level for which the 99025 testers can be
used, depend on the over-voltage categories specified by the safety standards.
These category specifications are formulated to protect operators against transient
impulse voltage in power lines.
Maximum Allowable Input
Function
OVERVOLTAGE CATEGORY III
A
Measuring circuit voltage : AC 300V rms
Over-voltage category I (CAT.I):
Signal level, special equipment or parts of equipment, telecommunication, electronic etc., with
smaller transient over-voltages than CAT.II.
Over-voltage category II (CAT.II)
Local level, appliance, portable equipment etc., with smaller transient over-voltages than CAT.III.
Over-voltage category III (CAT.III):
Distribution level, fixed installation, with smaller transient over-voltages than CAT.IV.
CATION
Do not expose the instrument to the direct sun, extreme temperatures or dew fall.
NOTE
● If equipment generating strong electromagnetic interference is located nearly,
the testers may malfunction.
IM 99025
1st Edition: Apr.2003(MC)
AC 3000A rms

1. Features

Model 99025 are designed to increase the measuring capability of your clamp-on
testers. With the use of the Clamp Adapter, you can not only extend current
ranges, but clamp on a conductor of a larger diameter.

2. How to Use

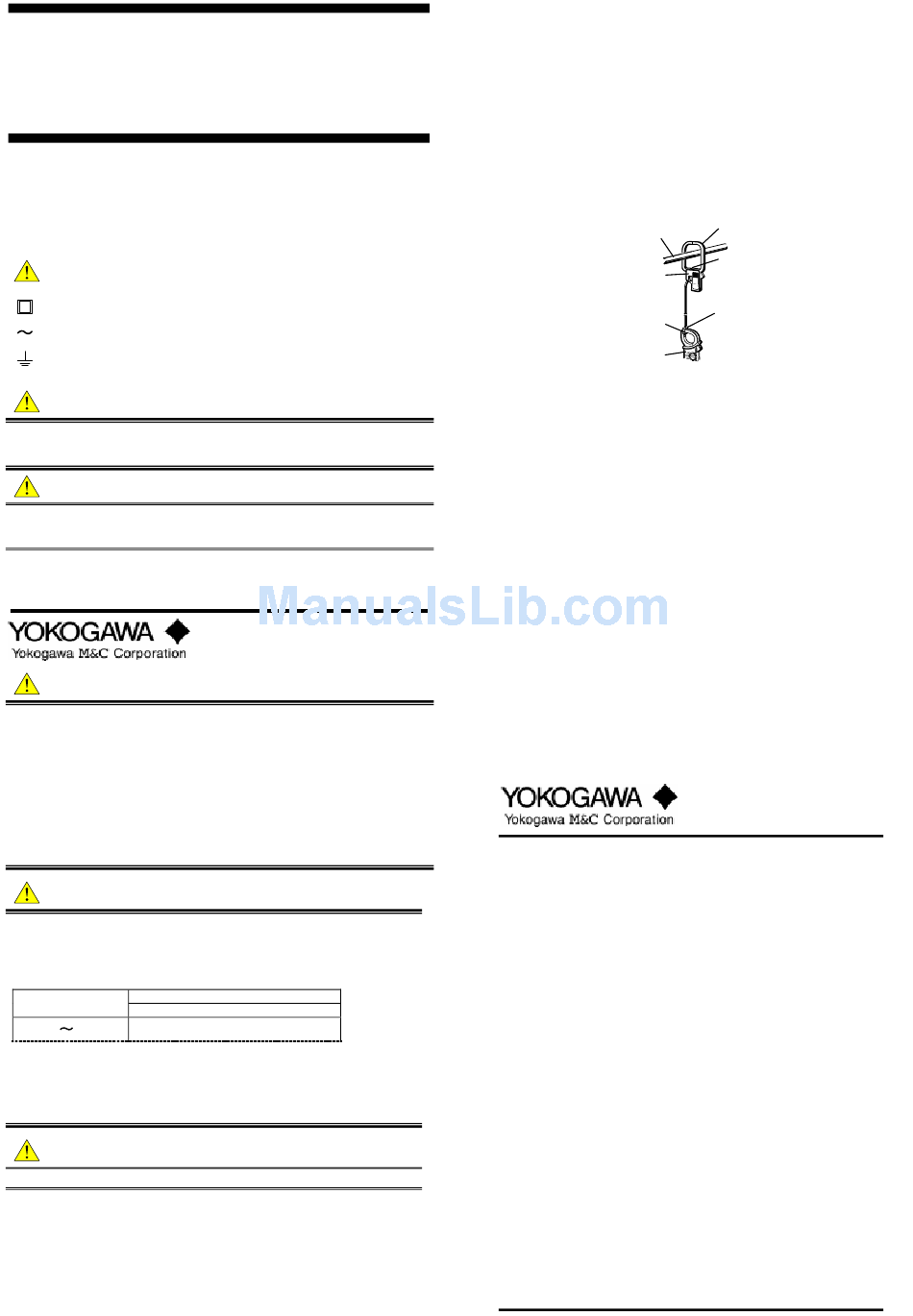

(1) Clamp your clamp-on tester on the pick-up coil of the Clamp Adapter. Then
clamp the Clamp Adapter on the conductor as shown bellow.
(2) When you use Clamp Adapter for power or power factor measurement;
Clamp your clamp-on tester on the pick-up coil of the Clamp Adapter,
assuming that the arrow mark on the pick-up coil points the load side.
Then clamp the Clamp Adapter on the conductor so that the arrow mark on
the Clamp Adapter jaw points the load side of the conductor.

3. SPECIFICATIONS

Measuring Range
Input / Output
Accuracy
Withstand Voltage
Dimensions
Weight
Conductor Size
Frequency
Duty Cycle
Safety Standards
IM 99025
Accessories

After-sales Service

Should any failure occur while you are using the tester, follow the instructions
given below.
contact the vendor from whom you purchased the instrument or the nearest
Yokogawa M&C sales office.
YOKOGAWA M&C CORPORATION
International Sales Dept.
2-9-32 Nakacho, Musashino-shi, Tokyo, 180-8750 Japan
Phone: 81-422-52-5716 Facsimile: 81-422-55-8654
YOKOGAWA CORPORATION OF AMERICA (U.S.A.)
Phone: 1-770-253-7000 Facsimile: 1-770-251-2088
YOKOGAWA EUROPE B. V. (THE NETHERLANDS)
Phone: 31-334-64-1611 Facsimile: 31-334-64-1610
YOKOGAWA AMERICA DO SUL S. A. (BRAZIL)
Phone: 55-11-5681-2400 Facsimile: 55-11-5681-1274
YOKOGAWA ENGINEERING INSTRUMENTS KOREA CORPORATION (KOREA)
Phone: 82-2-551-0660 to -0664 Facsimile: 82-2-551-0665
YOKOGAWA AUSTRALIA PTY. LTD. (AUSTRALIA)
Phone: 61-2-9805-0699 Facsimile: 61-2-9888-1844
YOKOGAWA BLUE STAR LTD. (INDIA)
Phone: 91-80-227-1513 Facsimile: 91-80-227-4270
LTD. YOKOGAWA ELECTRIC (RUSSIAN FEDERATION)
Phone: 7-095-737-7868 Facsimile: 7-095-737-7869
計 測 機 器 営 業 部
〒180-8750 東京都武蔵野市中町 2-9-32
電話：0422-52-5984 ファクシミリ：0422-55-8953
関 西
〒564-0063 大阪府吹田市江坂町 1-23-101 大同生命江坂ビル 10 階
電話：06-6368-7041 ファクシミリ：06-6368-7045
中 部
〒450-0003 名古屋市中村区名駅南 1-27-2 日本生命笹島ビル 12 階
電話：052-581-7490 ファクシミリ：052-581-7664
広 島
〒730-0037 広島市中区中町 8-12 広島グリーンビル８階
電話：082-240-7676 ファクシミリ：082-541-4567
九 州
〒812-0037 福岡市博多区御供所町 3-21 大博通りビジネスセンター7 階
電話：092-262-5740 ファクシミリ：092-262-5741
本
〒180-5679 東京都武蔵野市中町 2-9-32
電話：0422-52-5679 ファクシミリ：0422-51-8455
Transformer Jaws
Conductor
Arrow Mark
Clamp Adapter
Pick-up Coil
Arrow Mark
Clamp-on Tester
0 to 3000A AC
10 : 1
±2% of input ±0.5A
3700V AC for one minute
Clamp Adapter except Pick-up coil
150(W) X 317(H) X 33(D)mm
Pick-up coil
45(W) X 40(H) X 10(D)mm
Approx. 750g
100mm max. Diameter
100 X 150mm Bus-Bar
50Hz / 60Hz
Continuous for 0 to 1000A
10 minutes for 1000 to 1500A
30 seconds for 1500 to 3000A
EN 61010-1
EN 61010-2-032
AC 300V CAT. III / AC 600V CAT. II, Pollution degree2
Carrying Case (Model 93035)
If the adapter still fails to operate correctly and needs repair,
支 店
支 店
営 業 所
営 業 所
社
1
KIM1JE-2003.2
