Luowice LWS Series User Manual

Wireless security camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

LWS Wireless Security Camera User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LWS Series and is the answer not in the manual?

Questions and answers

James Rowlands
June 4, 2025

sd card needs to be replaced.where do you find it?

0
Tsun Keung
April 7, 2025

Can not pair a LWS Camera to my iPhone using CamHiPro?

User image 67f42bba530f7
0
Janet Scott
March 24, 2025

What size sad card do I need for wireless security camera QG15

0
Frank
January 30, 2025

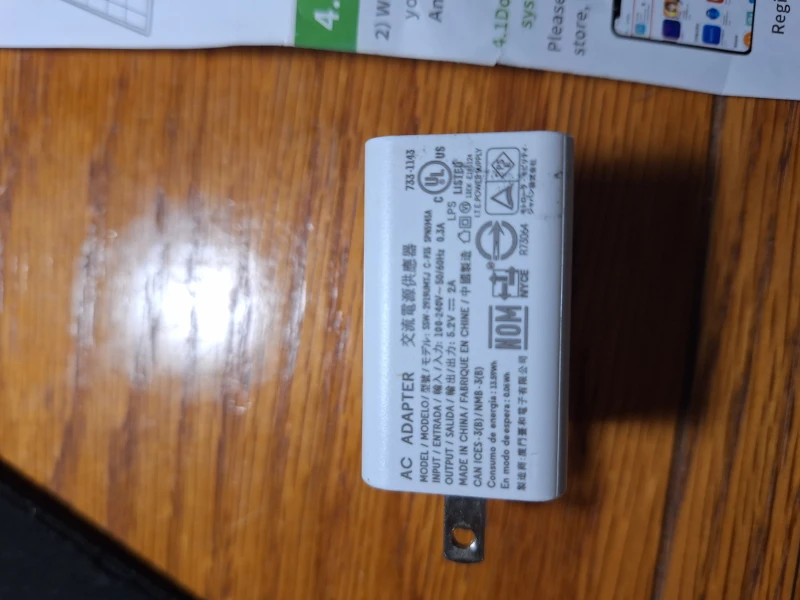

I bought the Luovisee QG15 solar battery outdoor security camera. My question is can I charge this by using ac power wall current constantly and disconnect solar panel charge.Does this camera have a power safety shutdown when batteries are fully charged, if so would 5.2V=Amp work. If not what would work?

User image 679bf470eb82f
0

Related Manuals for Luowice LWS Series

Summary of Contents for Luowice LWS Series

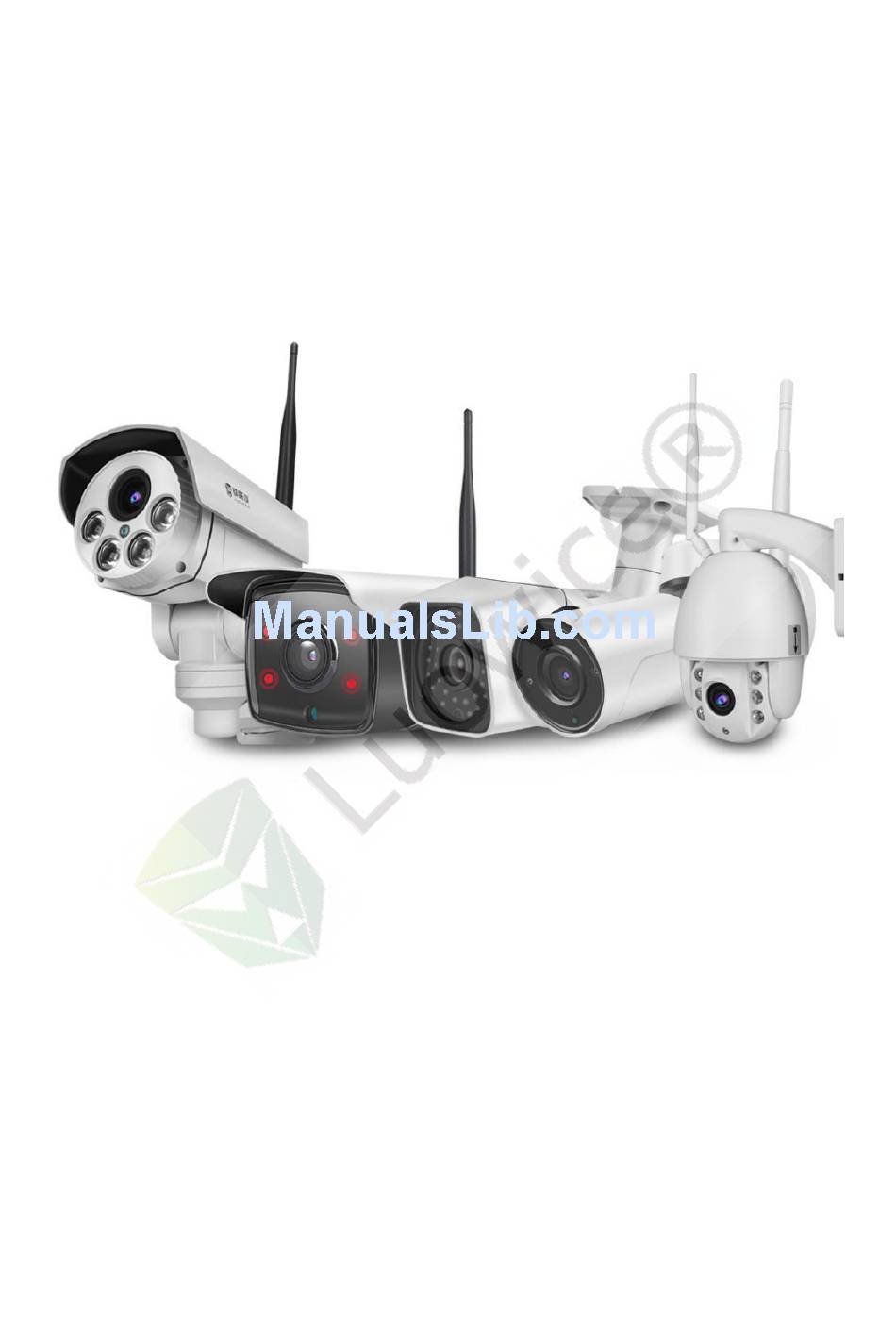

  • Page 1 LWS Wireless Security Camera User Manual...

  • Page 2: Table Of Contents

    Preface........................1 Default Setting....................1 1. Camera Installation..................2 1.1 Precautions....................... 2 1.2 Preparation......................2 1.3 Installation......................3 1.3.1 Camera Panel..................3 1.3.2 Screw the Antenna.................4 1.3.3 Assemble the Camera and the Bracket..........5 1.3.4 Pair the Camera with Your Phone............6 1.3.5 Remote View Setup................13 1.3.6 Camera Installation Tips..............15 2.
  • Page 3 2.3.12 FTP Setting..................36 2.3.13 System Setting...................37 2.3.14 Device Information................38 3. Instruction for Operation on PC Client............38 3.1 Operation Environment.................. 38 3.2 Default Setting of PC Client................39 3.3 PC Client Interface Instruction...............39 3.4 PC Client Operation Instruction..............41 3.4.1 The Config Interface................41 3.4.1.1 Device Management..............41 3.4.1.1.1 Methods to add cameras to the PC Client.....
  • Page 4 3.4.1.4 User Management..............60 3.4.1.5 Other Settings................61 3.4.2 The Preview Interface................62 3.4.2.1 List....................62 3.4.2.2 PTZ...................63 3.4.2.3 PRESET..................64 3.4.2.4 COLOR..................65 3.4.2.5 Real-Time Live View............... 65 3.4.2.6 Alarm Info................67 3.4.3 The Automatically add devices interface..........67 3.4.4 The Local Playback Interface..............67 3.4.5 The Remote Playback Interface............68 3.4.6 The Logs Interface................69 3.4.7 The Logout user Interface..............

  • Page 5: Preface

    For FAQ and troubleshooting, please refer to: www.luowice.com/en/faq For tech support, please kindly contact us via Email: support@luowice.com or Skype: Luowice Tech Support, and there will be response within 24 hours or sooner. Video Instruction available on YouTube, please kindly search: luowice on Youtube.com.

  • Page 6: Camera Installation

    The default setting of SD card is to overwrite the oldest recorded videos when storage is full. The camera can be paired to Luowice wireless NVR 1. Camera Installation Note: Please kindly note that the camera cannot recognize Wi-Fi user name or password that include special characters (e.g.

  • Page 7: Installation

    a) Internet Connection The camera can work without Internet. But if you want to have remote view, which means viewing the camera when you are not within the camera’s Wi-Fi Hotspot range, please kindly connect the camera to your local Wi-Fi network to get the camera online for remote access. 1.3 Installation 1.3.1 Camera Panel...

  • Page 8: Screw The Antenna

    1． Lens 2． Led Light 3． Photosensitive Sensor 4． Antenna 5． PTZ Component (Please avoid adjusting the PTZ component manually by hand. Adjusting it via phone APP or PC Client only.) 6． Power Interface 7． Network Cable Interface 8． Reboot Interface (Keep pressing the button for around 10 seconds and the camera will reboot.) 1.3.2 Screw the Antenna As the below images shown, please adjust the Antenna till it is at an angle of...

  • Page 9: Assemble The Camera And The Bracket

    1.3.3 Assemble the Camera and the Bracket Please avoid adjusting the angles of the camera bracket directly by hand. The angles of camera shall be adjusted via the PTZ function on the mobile APP or PC Client. Adjusting the bracket manually can cause damage to the PTZ function.

  • Page 10: Pair The Camera With Your Phone

    1.3.4 Pair the Camera with Your Phone Note: Please kindly keep the camera within your local Wi-Fi range. After finish assemble the camera with the antenna and the bracket, please kindly plug the camera in power.
  • Page 11 First of all, please kindly download the APP(LWSCAM) and install it to your smartphone. You can search lwscam in Apple Store or Google Play Store. And then download and install it. There are two ways to pair the camera with your smartphone. 1) AP Mode: Connect the camera to your smartphone via the camera’s Wi-Fi Hotspot Step 1: Please kindly click ‘Einstellungen’...
  • Page 12 Choose the WLAN with the name starts with ‘IPC’ - Insert the default password ‘01234567’ - Click ‘Verbinden’. And your phone has been connected the the camera’s Wi-Fi Hotspot now. Step 2: After confirming your phone has been connected to the camera’s Wi-Fi Hotspot, please kindly open the APP on your phone.
  • Page 13 Step 3: The default name of the camera on the APP is ‘Camera’. Please kindly change the name of the camera first. And then please kindly click ‘Scan QR Code’, and take your phone near to the camera and scan the QR Code label on the camera to get the UID.
  • Page 14 Step 4: When the camera indicates ‘Online’, you can click on the image to live view the camera, or click the icon to enter the main menu.
  • Page 15 Note: Please kindly note that once the camera is connected to your local Wi-Fi network, the camera’s Wi-Fi Hoptspot will disappear automatically. 2) LAN Mode: Connect the camera to your smartphone via your local LAN network. Step 1: Please kindly connect the camera to your local router via the network cable.
  • Page 16 ‘EEEE’ - Click ‘Done’. Wait for around one minute, and the camera shall indicates ‘Online’. Step 3: When the camera indicates ‘Online’, you can click on the image to live view the camera, or click the icon to enter the main menu.

  • Page 17: Remote View Setup

    1.3.5 Remote View Setup The camera has to be connected to your local Wi-Fi network for remote view. To have remote view, please kindly enter the main menu, and click ‘Wi-Fi Setting’ - Choose your local Wi-Fi network - Insert the password of your local Wi-Fi network - Click ‘Save’.
  • Page 18 After finishing the remote setting, you can pick any places within your local Wi-Fi range to install the camera.

  • Page 19: Camera Installation Tips

    1.3.6 Camera Installation Tips...

  • Page 20: Instruction For Operation On Phone App

    Instruction for Operation on Phone APP 2.1 Phone APP Default Interface and Operation Instruction After you pairing the camera to your phone and setting up the remote view function, when you open the APP on the phone, you will see the interface as the left image on the above image.

  • Page 21: Phone App Live View Interface And Operation Instruction

    4. Click the icon , and you can enter the main menu interface of the camera. 5. Click ‘Camera’, and you can see a list of camera paired with the phone. 6. Click ‘Picture’, and you can check the snapshots you took while live watching the camera.
  • Page 22 Lens Adjusting: Mirror/Flip. Mirror will make the view swap from left  to right and vise versa; Flip will make the view upside down and vise versa. When you install the camera under a roof or on a wall where there is restriction on space, you may need this function to get a right view of the camera.
  • Page 23 the view to be clear automatically after zooming. If the view is not clear enough, then press on Focus in/Focus out to get clear view. Position Preset: this function allows you to set up specific position to  adjust the lens precisely.
  • Page 24 Operation: a) First, please kindly move your finger on the default interface from left/right, up/down to choose a position that you want to set up as a preset position. b) Then click the icon , and the Position Preset interface will appear. And then click ‘1’...
  • Page 25 Operation: please kindly click the icon , and it will turn into . Then the recording will be with audio. Press on the intercom icon , and the intercom function is activated. Please keep pressing on the intercom icon during speaking. And then loosen the intercom to send out the voice message to the other side.
  • Page 26 appear then. If you want to delete a snapshot, click the snapshot to open the image, and then click the icon , and click on ‘Delete’ on the pop-out page. You can also email the snapshot or save the snapshot to your phone album on the pop-out page.
  • Page 27 Operation: please kindly click the icon , and the video recording on the phone will be activated. Click the icon , and the recording will stop. Then exit the default interface. Click ‘Video’ – click ‘Local’. And the camera list will appear. Click the camera you want to check the local records and the record list will appear.
  • Page 28 Resolution Adjusting: to adjust the resolution of the video.  Operation: please kindly click the icon , and the resolution interface will...

  • Page 29: Phone App Camera Setting Interface And Operation Instruction

    appear. Then click HD/SD based on your need. 2.3 Phone APP Camera Setting Interface and Operation Instruction 2.3.1 Instruction on Entering the Main Menu Operation: please kindly open the APP on your phone. And click the icon after the camera indicating as ‘Online’. And the main menu page will appear.

  • Page 30: Change Password

    2.3.2 Change Password Operation: please kindly click ‘Change Password’ on the main menu interface. And insert the relevant information. And then click ‘Done’ and the password will be changed successfully. Note: a) Default password: admin b) Please keep the password within 15 letters and avoid using special characters such as #, *, &.

  • Page 31: Alarm Setting

    2.3.3 Alarm Setting Operation: please kindly click ‘Alarm Setting’ on the main menu interface. And move the icon to the right side to activate the motion detection function. And then choose a sensitivity level (Low/Medium/High) based on your need. And click ‘Back’ and the setting will be saved. Note: The camera is very sensitive to the lightning change.

  • Page 32: Action With Alarm

    2.3.4 Action with Alarm Operation: please kindly click ‘Action with Alarm’. And move the icon to the right side to activate the functions you want to have. And click ‘Back’ and the setting will be saved. Note: a) the Alarm Notification function is not applicable, which means it can not push notification to the APP on your phone.

  • Page 33: Timing Record

    e) Save Video on FTP Server: saving motion-triggered video on your FTP Server. f) Snapshot Number: the default snapshot number is 1. You can choose from 1/2/3 based on your need. 2.3.5 Timing Record Operation: please kindly click ‘Time Record’ on the main menu interface. And then modify the record settings based on your need, and click ‘Done’...

  • Page 34: Audio Setting

    2.3.6 Audio Setting Operation: please kindly click ‘Audio Setting’ on the main menu interface. Your camera will choose Line in/Mic as its transmission method automatically. Please do not change the default transmission method. You can modify the setting of Input Volume/Output Volume based on you need. Simply press on the icon and move it to the left/right side to get the volume you want.

  • Page 35: Video Setting

    2.3.7 Video Setting Operation: please kindly click ‘Video Setting’ on the main menu interface. And the camera will gain the proper video setting based on your network environment automatically. Please do not change the default setting. If the screen splashes, please choose from 50Hz/60Hz to fix the problem. And click ‘Done’...

  • Page 36: Sd Card Setting

    2.3.9 SD Card Setting Operation: please kindly click ‘SD Card Setting’ on the main menu interface. And then you can check the storage space information of the SD card. Or Format the SD card. Please kindly remember to backup the data before formatting the SD card.

  • Page 37: Time Setting

    2.3.10 Time Setting Operation: please kindly click ‘Time Setting’ on the main menu interface. And then you can click on ‘Sync with Phone Time’ to make the device time zone the same as your phone’s time setting. Or you can choose to set up ‘Device Time Zone’...

  • Page 38: Email Setting: To Set Up Email Alert Function

    2.3.11 Email Setting: to set up email alert function Operation: please kindly click ‘Email Setting’ on the main menu interface. And then insert the relevant information in the pop-out page. Then click ‘Test’ to check whether the email setting works. After confirming the email setting working, click ‘Save’...
  • Page 39 Note: a) please get your SMTP Server information from the email account you want to use as ‘Sender’. Operation: please kindly log in your email account. Here we use hotmail as an example. After logging in, click ‘Setting’ – ‘Options’ – ‘POP and IMAP’ – ‘Yes’.

  • Page 40: Ftp Setting

    can go directly to click on ‘Save’. And the Email Setting is successful then. 2.3.12 FTP Setting Operation: please kindly click ‘FTP Setting’ on the main menu interface. And insert the relevant information on the pop-out page. And then click ‘Test FTP Settings’...

  • Page 41: System Setting

    2.3.13 System Setting Operation: please kindly click ‘System Setting’ on the main menu interface. And choose ‘Reboot Camera’/’Reset Camera’ based on your need. And then click ‘Yes’ to apply your choice and click ‘Back’ to save all the settings. Note: a) When there is view delay, or other abnormal situation, please choose ‘Reboot Camera’...

  • Page 42: Device Information

    2.3.14 Device Information Operation: please kindly click ‘Device Information’ on the main menu interface. And you can check the basic information of the device on the pop-out page. 3. Instruction for Operation on PC Client 3.1 Operation Environment Hardware environment: Pentium IV series, CPU basic frequency not smaller than 2.0G;...

  • Page 43: Default Setting Of Pc Client

    Hard disk not smaller than 120G; Display resolution not smaller than 1024 x 768. Software environment: Windows2000/Windows XP/Windows2003/Windows Vista/Windows7/Windows8 3.2 Default Setting of PC Client The address to download PC Client for the camera: cd.sxt123.com/k Please kindly download the PC Client (HiP2P Client) and install it on your The default User Name of the PC Client: admin (cannot be modified).
  • Page 44 Click any button on the middle of the top and the Log In page will pop out. The log in interface is as follows: Default user name: admin, and can not be modified. Password: no password , just leave it blank and click ‘OK’ to log in.

  • Page 45: Pc Client Operation Instruction

    Note: please kindly note that only the users with admin permissions can exit the PC client. Common user and guest can not exit the PC client. 3.4 PC Client Operation Instruction 3.4.1 The Config Interface There are five sub categories on the config interface: Device Management, Parameter settings, Reocord Management, User Management, and Other Settings.

  • Page 46: Methods To Add Cameras To The Pc Client

    Zone 4: Region list. 3.4.1.1.1 Methods to add cameras to the PC Client Function: Add cameras to the PC Client. There are two ways to add cameras to the PC Client. Method A—Add cameras via inputting UID Operation: Please kindly click the Config button and log in the PC Client. Then click the ‘Input UID’...
  • Page 47 can be modified. User Name: default is: admin, and cannot be modified. Password: default is: admin, and can be modified. Please keep the modified password within 15 letters and avoid using special characters such as %, #. Area: default is ‘Region’ and cannot be modified. Then click the ‘Preview’...
  • Page 48 Method B—Add cameras via searching LAN device Operation: Please kindly click the ‘Config’ icon, and then click ‘Search’. When the camera appears on the left box, check the camera, and then click ‘Add’. And the camera will appear under the ‘Region’ list on the right box.
  • Page 49 Then check the camera under the ‘Region’ list. And click the ‘Modify Device’ icon. Input the name and password of the camera, and then click ‘OK’ on the pop-out page. Then click the ‘Preview’ icon and get the live view on the screen as Method A indicated above.

  • Page 50: Delete Device

    3.4.1.1.2 Delete Device Function: delete cameras from the PC Client. Operation: Click the ‘Preview’ icon, and then take the mouse cursor to ‘Camera’ and right click the mouse. And click ‘Disconnect Device’ on the pop-out page. Wait for seconds and the camera’s live view will disappear from the screen.

  • Page 51: Classify Cameras Into Regions

    3.4.1.1.3 Classify Cameras into Regions To classify cameras into regions, please kindly set up regions first. And then add the cameras to the region you want to classify to when adding cameras to the PC Client.

  • Page 52: Adjusting Image Quality (Sd/Hd)

    Operation: please kindly click the ‘Config’ icon, then click ‘Add Area’, and set up area based on your need, and then click ‘OK’ and the area name will show under the ‘Region’ list on the top right side. Now you can add cameras to the region you set.

  • Page 53: Parameter Settings

    and switch the image quality between Quality: Max/Quality: Min. 3.4.1.2 Parameter Settings There are five sub categories in the parameter settings interface:Video, Image, Audio, Alarm Setting, Network, SD Card, Timed capture, PTZ, Login Info, System, Wi-Fi. 3.4.1.2.1 Video Function: modify the video settings. Operation: the device will obtain the appropriate settings automatically based on your network condition.

  • Page 54: Image

    Note: When the internet speed is too slow, you can choose a smaller ‘Resolution’, change the ‘Stream Type’ to ‘Sub Stream’, choose a smaller ‘Bit rate, a smaller ‘Frame Rate’, and a larger ‘Image quality’. 3.4.1.2.2 Image Function: modify the image settings. Operation: the device will obtain the appropriate settings automatically based on your network condition.

  • Page 55: Audio

    Note: please kindly note that if you change the ‘IR LED Control’ to ‘On’ all day long, the image quality in day time will be affected. And if you change the ‘IR LED Control’ to ‘Off’ all day long, the camera will have no night vision, which means the camera view will be completely dark without showing images.

  • Page 56: Alarm Setting

    3.4.1.2.4 Alarm Setting Function: modify the settings of alarm. Operation: the operation is similar to those via phone APP. Please kindly refer to the instruction of phone APP above. Note: a) Sound Alarm: only applicable to devices that support sound alarm function.

  • Page 57: Network

    3.4.1.2.5 Network Function: modify the audio settings. Operation: the device will obtain the appropriate settings automatically based on your network condition. We suggest not to modify the settings manually.
  • Page 58 Note: a) you can modify the IP Address to make it be compatible with specific router only. b) When the camera cannot be connected with you router, please check whether the ‘Subnet mask’, ‘Gateway’, ‘Primary DNS’ and Http Port’ is in compatible with your router.

  • Page 59: Sd Card

    3.4.1.2.6 SD Card Function: modify the audio settings. Operation: the device will obtain the appropriate settings automatically based on your network condition. We suggest not to modify the settings manually. Note: a) the default setting of record length is 600 seconds per video record. You can modify the length from 15-600 seconds per record.

  • Page 60: Timed Capture

    to SUN ‘1’. Then press the mouse and move it slightly. Loosen the mouse and the area of SUN ‘1’ will turn into green color and there will be video record during 1:00am-2:00am on Sunday then. 3.4.1.2.7 Timed capture Function: to modify the storage location of the snapshots you take when live view the camera on the PC Client.

  • Page 61: Login Info

    3.4.1.2.9 Login Info Function: modify the password. Operation: please kindly input the old password and set up new password. Please keep the password the same in both ‘New Password’ and ‘Check Password’. And keep the password within 15 letters while avoid using special characters such as #, %.

  • Page 62: System

    3.4.1.2.10 System Function: check the system settings or reboot the settings back to factory settings. Note: please kindly note that you can reboot the device via clicking ‘Reboot’ or ‘Restore’. There is no difference. 3.4.1.2.11 Wi-Fi Function: modify the Wi-Fi settings of the camera.

  • Page 63: Record Management

    3.4.1.3 Record Management Function: modify the local record settings. Operation: please kindly check ‘Enable the plan of record’ to activate local recording function. And then you can set up the recording schedule according to your need. Please refer to 3.4.1.2.6 SD Card about how to set up the schedule.

  • Page 64: User Management

    3.4.1.4 User Management Function: modify users of the PC Client Operation: the default user of the PC Client is: admin. You can add/delete other users.

  • Page 65: Other Settings

    3.4.1.5 Other Settings Function: modify other settings. Operation: the device will obtain the appropriate settings automatically based on your network condition. We suggest not to modify the settings manually.

  • Page 66: The Preview Interface

    3.4.2 The Preview Interface Function: modify the live view of the cameras. 3.4.2.1 List Region: shows the cameras classifications. Current Screen: shows the cameras with live views on the PC Client at the moment.

  • Page 67: Ptz

    3.4.2.2 PTZ To control PTZ directions, please kindly click the any of the eight direction icons. Iris enlarge button. Only applicable for cameras with lens supporting this function. Iris shrink button. Only applicable for cameras with lens supporting this function. Zoom in button.

  • Page 68: Preset

    this function. Focus out button. Only applicable for cameras with lens supporting this function. 3.4.2.3 PRESET Function: to set up preset points. Then the camera view can be move from one point to another point precisely via a click. Operation: First, please kindly click the live view of the camera you want to set up preset function.

  • Page 69: Color

    function to move the camera view to a point you want to set up as a specific position, such as the door. Then click ‘Preset001’ and then click ‘Set’. And the chosen position will be set up as position 1 successfully. Now go back to the PTZ interface and choose positions to set up as position 2, position 3, …...
  • Page 70 Intercom: choose the live view camera you want to apply intercom. Then click the intercom icon. And when this icon appears on the live view interface, intercom is applicable. Please kindly note that only one camera applies intercom each time. This function only is only applicable to devices that support intercom function.

  • Page 71: Alarm Info

    entire screen. Alarm message list shrink/extend: click it to display or hide the alarm message list. 3.4.2.6 Alarm Info Function: There will be alarm info at the bottom of the interface which shows the status of the cameras, such as connect success, password error, etc. 3.4.3 The Automatically add devices interface Function: to add those cameras in the same LAN with the PC via a simple click.

  • Page 72: The Remote Playback Interface

    Operation: please click the ‘Local Playback’ icon. And then choose the camera you want to playback from the region list. And choose the date you want to playback. Then the local video records will show record bar in green color on the schedule form at the bottom. Click the green record bar and it will start playback automatically.

  • Page 73: The Logs Interface

    Operation: please click the ‘Remote Playback’ icon. And choose the record type, select the channel, date, start time/end time. And then click ‘Search’ and the record list will show on the left side. Double click the time you want to playback and the recorded video will start playback.

  • Page 74: The Logout User Interface

    Operation: please click the ‘Logs’ icon. And then choose the log type, device, start time/end time, and click ‘Search’ to get the logs list. 3.4.7 The Logout user Interface Function: to log out the current user and log in with another user. 3.4.8 The Exit Interface Function: to exit the PC Client.
  • Page 75 Luowice Manufacturer: Guangzhou Lieju Electronic Technology Co., Ltd. Website: http://www.luowice.com/en Email: support@luowice.com Skype: Luowice Tech Support Address: Dongfeng Industry Park, Lingshan East Road, No.15, Zhucun, Tianhe District, Guangzhou, China, 510665...
