Summary of Contents for Humimeter RP6

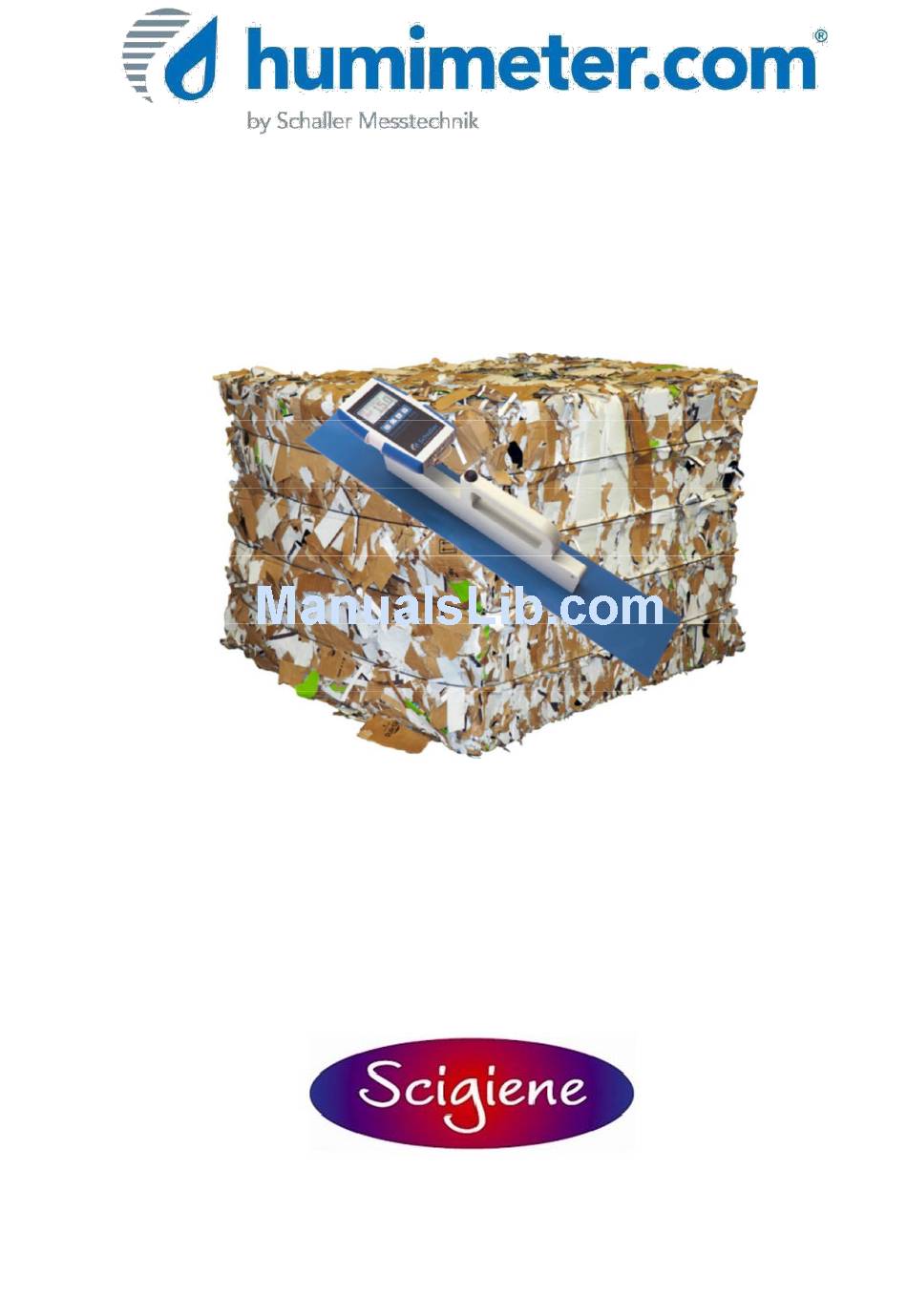

- Page 1 User manual Recycling Paper Moisture Meter humimeter RP6 2018...
- Page 2 1.) For accurate measurements, please ensure that the device has the same temperature (+/-3°) than the material being tested. For that reason, let your humimeter adjust to the surrounding temperature of the material for at least half an hour before measuring (protect from direct sunlight!).
- Page 3 During the startup for a short time the serial number, the software version, the battery state and the free memory space will be displayed. After that, the humimeter RP6 is ready for use. To switch off the device, press and hold the power button ( ) for 5 seconds.
- Page 4 List of calibration curves Press the key in the measuring window for at least 3 seconds, to display a list of all available calibration curves. Select your desired calibration curve by pressing and confirm by pressing the key. Calibration curves displayed in grey are not available for the actual sensor and cannot be chosen.
-
Page 5: Menu Level Overview
Menu level overview Keypad symbols Measuring window: rolling menu power ON / OFF switch upper Store menu switch lower Watch or edit saved logs save Number of logs hold Enter new log watch saved data enter supplier´s Type selection menu data Next calibration curve Menu:... - Page 6 Operating the instrument Switching on: Press for three seconds. Setting date and time: Two times -> Options -> date/time Saving: Press the button to save the shown measuring value. To name the saved results press the button. Select the menu item “Options”, then Hold: select “datalog time”.
- Page 7 Adjustment (device calibration) Turn on the instrument and select the calibration curve “Test Characteristic” using the arrow keys. Hold the humimeter RP6 up in the air with one hand. There must not be any wall or other objects within 1 meter from the device.
- Page 8 . This menu item must be unlocked. To unlock, enter the 4-digit serial number of your humimeter RP6. You can find it on the top right edge of the display a short time after turning on the instrument.
- Page 9 Battery Charge If the battery symbol appears in the measuring window or if a critical charge of battery is shown in the status (!), the batteries must be charged IMMEDIATELY. Charging the batteries Connect the provided USB cable to the device and the other end of the cable to a PC or another USB charging adapter.
- Page 10 Transfer saved data to the PC To send your saved logs to the PC, connect the humimeter device to your PC using the USB cable that was provided with your device. Carefully loosen the protection cap on your humimeter and plug in the USB mini B connector.
- Page 11 To print your saved data, connect the device to the printer using the printer cable that was delivered with your device. Carefully loosen the protection cap on the humimeter RP6. First plug in the side of the connector with the close plastic casing on the humimeter RP6.
- Page 12 Hardware Reset In case your humimeter device does not respond when keys are pressed or cannot be turned on any more, you can carry out a hardware reset. Please make sure that the accumulator has been charged before starting the following procedure: Remove the blue plastic handle by sliding it off.
- Page 13 Page 13...
-
Page 14: Technical Data
620 mm x 100 mm x 147 mm Weight 1 kg (incl. accumulator) Degree of protection IP 64 Scope of supply RP6 with integrated accumulator, user manual, plastic case, USB interface incl. cable and PC software, calibration certificate Optional Bluetooth module, portable printer, proof... -
Page 15: Important! Please Read
Product temperature out of application range The temperature of the measuring device and the material under test should be approximately the same. Put the humimeter device in same room temperature as the material, for half an hour before starting the ...
