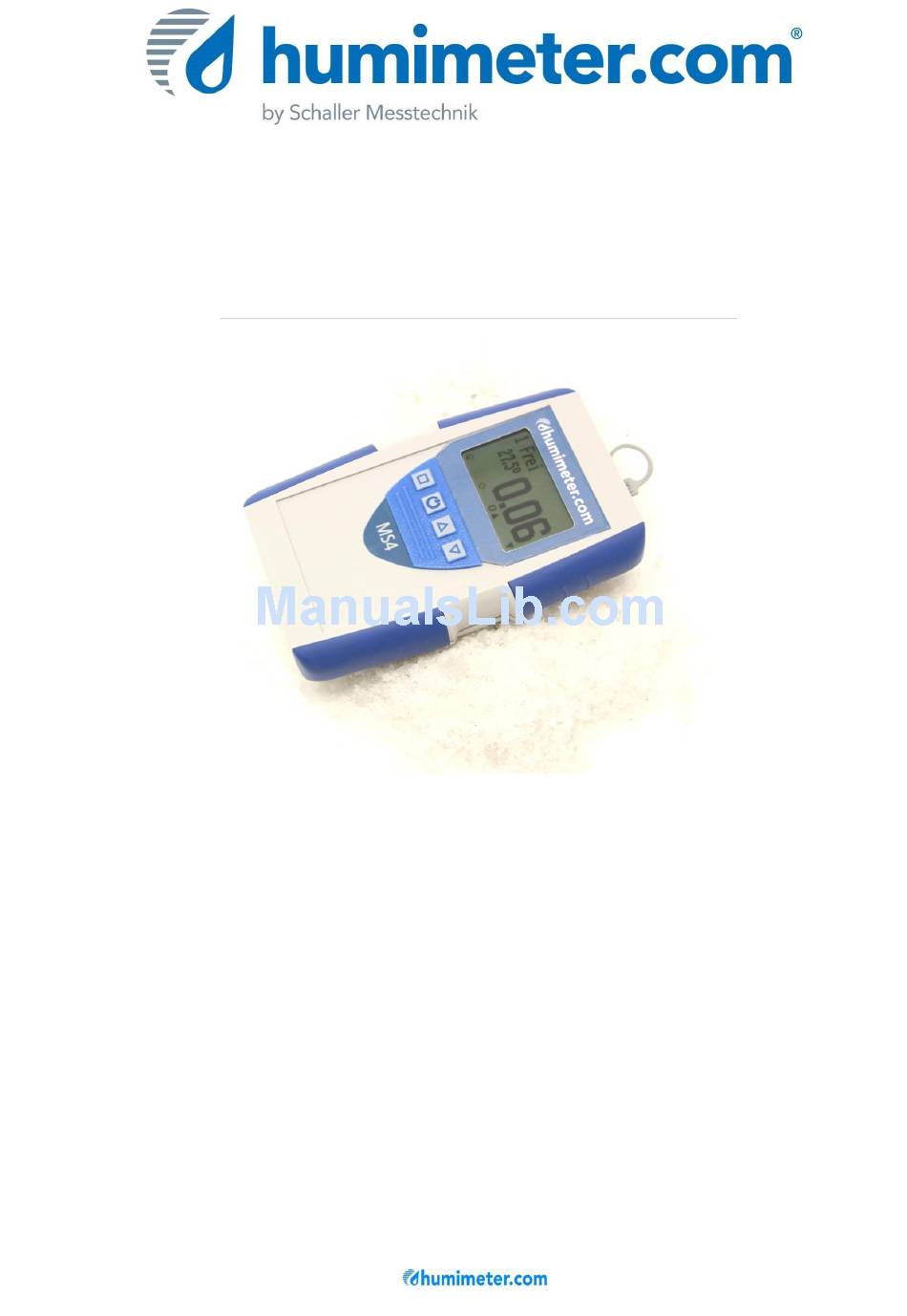

- Page 1 User manual moisture meter for road salt humimeter MS4 Version 1.4_en © Schaller GmbH 2017...
- Page 2 After that the humimeter MS4 is ready to use. For switching off the device, press the power button ( ) for 3 sec. If you do not push any button for 4 minutes, the device switches off automatically.
- Page 3 Measuring procedure 1. To ensure accurate measuring results, it is necessary that the moisture meter nearly has the same temperature than the mate- rial to measure. For that, we advise to store the moisture meter and the material to measure in the same place for at least 30 minutes before measuring.
- Page 4 Please note: The humimeter MS4 shows an average value of the material covered by the sensor plate, the maximum measuring depth is 30mm. Please ensure a minimum material thickness of 50mm below the sensor! 5. To save the results in the save menu press the button).
-
Page 5: Menu Level Overview
Menu level overview Keypad symbols Measuring window: store menu Rolling Menu Power ON / OFF Watch the saved data (logs) Switch upper Enter new log Power off (3 sec.) Switch lower type selection menu Save Hold Next calibration curve Autolog Previous calibration curve Power off (3 sec.) Watch saved data... - Page 6 Switch on the instrument and select the calibration curve „reference“ using the arrow keys. Hold the humimeter MS4 in one hand and press it onto the grey proof plate with a compacting pressure of 4kg. The shown measuring value should range between 17.5 and 19.0.
- Page 7 Hold the humimeter MS4 in one hand up in the air and make sure that nothing stands behind the sensor plate. Then confirm the query “Calibrate?” by pressing the second button ( ) with one finger.
- Page 8 Operating the instrument Switching on: Press for three seconds. Setting date and time: two times -> Options -> date/time Saving: Press the button to save the shown measuring value. To name the saved re- sults press the button. Select the menu item „Options“, then Hold: select „datalog time“.
- Page 9 Device maintenance instructions To provide a long life of your device please do not expose it to strong mechanical loads or heat e.g. dropping it or direct sunlight exposure. Clean your device using a dry cloth. Any kind of wet cleaning may damage the device.
- Page 10 PC using the USB cable that was delivered with your device. Carefully loose the protection cap on your humimeter and plug in the USB mini B connector. The bigger connector has to be connected to a USB slot on your PC.
- Page 11 Carefully loose the protection cap on the humimeter MS4. At first plug in the side of the connector with the close plastic casing at the humimeter MS4. Then switch on the device. Not till then the other side of the cable has to be plugged in at the printer.
- Page 12 Notes ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- page 12 Version 1.4_en...
- Page 13 Notes ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- ------------------------------------------------------------------------------- Version 1.4_en page 13...
-
Page 14: Hardware Reset
Hardware Reset In case that your humimeter device does not respond to any key press or cannot be switched on any more, you can carry out a hardware reset. Please make sure that the accumulator has been charged before starting the following procedure: Remove the blue plastic handle by sliding it off. -
Page 15: Technical Data
145 mm x 95 mm x 28 mm Weight 265g (incl. battery) Degree of protection IP 64 Scope of supply MS4 with integrated battery, user manual, wooden case (incl. proof plate), USB interface incl. cable and PC software Optional Bluetooth module, portable printer Version 1.4_en... -
Page 16: Exemption From Liability
If those are broken, no claims for guarantee can be made. In case of a faulty device, please contact Schaller GmbH (www.humimeter.com) or your dealer. Common reasons for incorrect measurements Product temperature out of application range The material temperature has to be between 0 and +50°C (32...
