Summary of Contents for Humimeter SLW

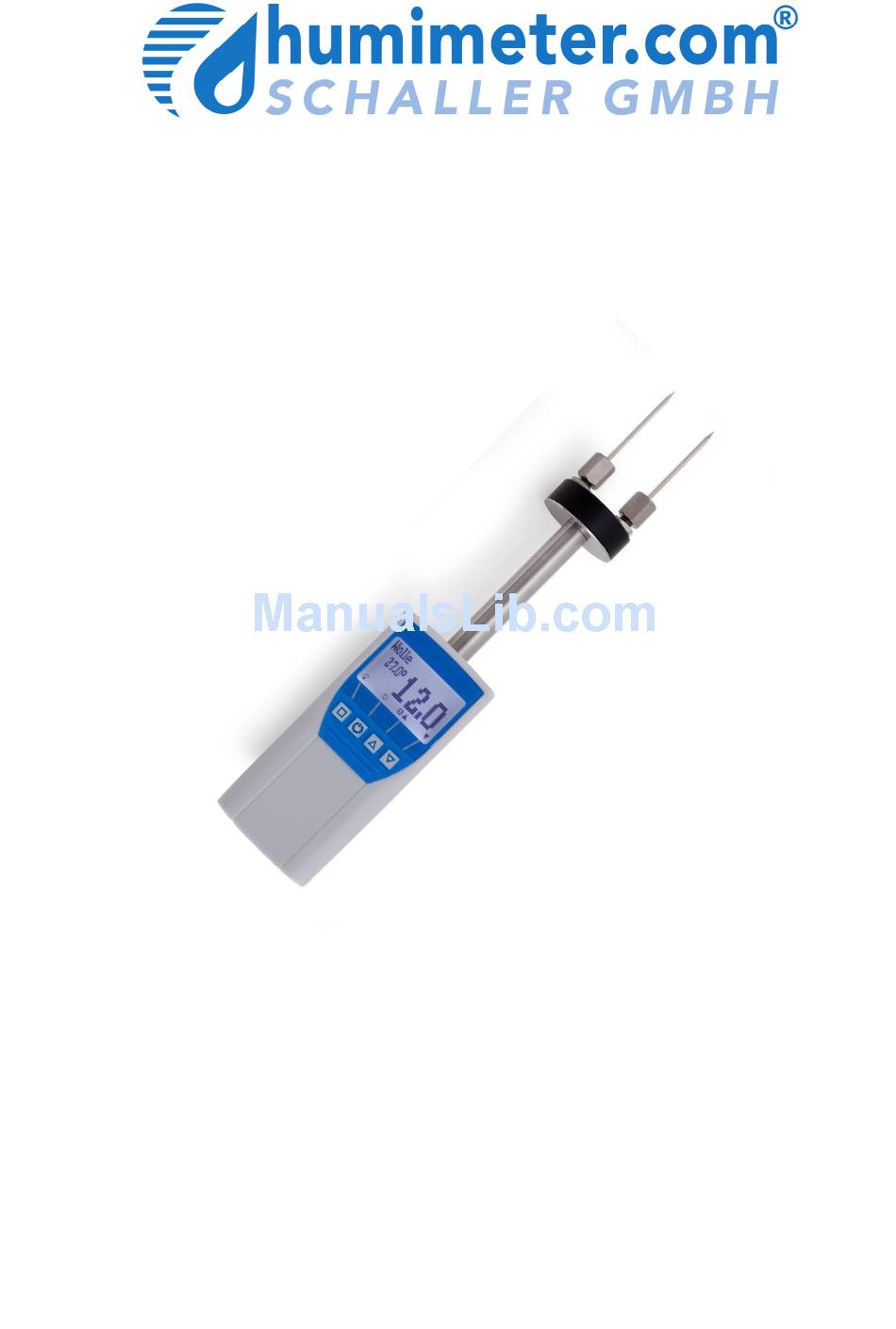

- Page 1 User Manual humimeter SLW moisture meter for textile and yarn Version 1.0 © Schaller GmbH 2010...
-
Page 2: Measuring Procedure
1.) For a correct measurement please ensure that the device has the same temperature than the material under test (+/-3°C). For that reason, let your humimeter SLW adjust to the surrounding temperature of the material for at least half an hour before measuring. - Page 3 Measuring value The measuring value shown on your humimeter SLW represents the “water content” of the testing material (textile). This means that no conversion from “textile moisture” into “water content” is necessary. If you prefer to change the shown value into “textile moisture”, please contact...
- Page 4 View of the instrument electrodes measuring head Power On key rolling menu / type of HOLD key material temperature value measuring value change sort batteries (flipside) page 4 Version 1.0...
- Page 5 Menu level overview Keypad symbols Measuring window: Rolling Menu Power ON / OFF Switch upper Type selection menu Switch lower Save Hold Previous calibration curve Next calibration curve Watch the Power Off saved data Suppliers data Store menu can be added Menu: Watch the saved data (logs) Save new value...
- Page 6 Running the instrument Switch on the device: Press the key for 3 seconds. Change the kind of textile: Press the key. Set the clock: press 3 times the key - Options – Date / Time Set date and the time by pressing the key (YY.MM.DD).
- Page 7 Keep both the buttons pressed directly after switching on the device. Your humimeter automatically starts the main menu. Activate the “super user” functions according to the instructions above. Navigate to “Options – o Userlevel” and confirm by pressing the button.
- Page 8 Carefully loose the protection cap on the humimeter SLW. At first plug in the side of the connector with the close plastic casing at the humimeter. Then switch on the device.
- Page 9 IMMEDIATELY. If you do not use your humimeter device for a longer period, remove the batteries. For eventual resulting damages we cannot provide any warranty.
- Page 10 Each device includes a serial number and the guarantee stamp. If those are broken, no claims for guarantee can be made. In case of a faulty device, please contact Schaller GmbH (www.humimeter.com) or our dealer. Device maintenance instructions To provide a long life of your device please do not expose it to strong mechanical loads or heat e.g.
-
Page 11: Technical Data
740 x 65 x 40 mm Weight app. 450 g (including batteries) Degree of protection IP 40 Scope of supply humimeter SLW, 4 pcs. 1.5 Volt AA Alkaline batteries, plastic case, nails for reserve Optional humimeter USB data interface module for connecting to a PC Option 2 (only with Opt. - Page 12 • Not adjusted temperature of the device Let your humimeter adjust to the surrounding temperature of the material for approximate half an hour. A very high temperature difference has a negative effect on the stability of the measurement results.
