Summary of Contents for SJCAM SJ8 AIR

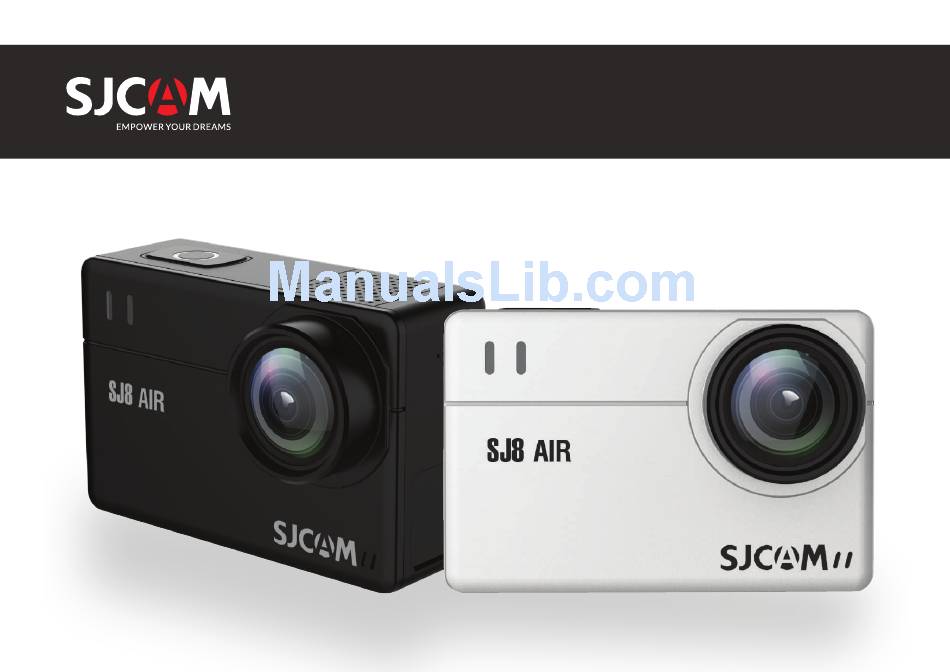

- Page 1 USER MANUAL SJ8 AIR...
- Page 2 Having our own factory, controlling the whole producton process, and a facility with more than 500 employees, makes us more versatile and able to reach the market fast, ensuring that the highest quality standards are met. It is all about dreams. Dare to join the SJCAM Revolution. -SJCAM CEO...
- Page 3 It is important to keep your camera’s firmware up to date. You may connect your camera via WiFi to the SJCAM ZONE app to automa cally download and install the latest firmware, or visit www.sjcam.com/firmware.
- Page 4 SJ8 AIR p. 4 www.sjcam.com SJ8 AIR SPECIFICATIONS CHIPSET: Novatek NT96658 SENSOR: PANASONIC MN34112PA SENSOR RESOLUTION: 14.24 MEGA PIXELS FRONT SCREEN: MAIN SCREEN: 2.33ʺ IPS TOUCH SCREEN LENS: ANGLE: 160° APERTURE: F 2.6 FOCAL LENGTH: 3.1 MM VIDEO RESOLUTION: 1296P:1728X1296 30FPS, 1080P:1920X108 30FPS, 720P: 1280X720P 30FPS, VGA :640×480 240FPS...
- Page 5 SJ8 AIR p. 5 www.sjcam.com SJ8 AIR - PARTS OF YOUR CAMERA SPEAKER SHUTTER MICROPHONE /OK BUTTON POWER BUTTON STATUS LEDS 2.33” TOUCHSCREEN BATTERY DOOR (BOTTOM)
- Page 6 Remote Control Pairing Remote Control Pairing? To pair your remote to your SJ8 AIR: Swipe down from the top > Select Remote Control choose “Remote Control Pairing”. A picture instruction will appear. Press the Video and the Photo buttons on the Remote simultaneously. “Pairing Completion ID” will show.
- Page 7 SJ8 AIR p. 7 www.sjcam.com REPLACING THE SJ8 AIR BATTERY Open the battery cover by sliding it to the side (on the bottom of the Grab the pull-tab camera). with your fingers. The battery cover will spring outward. Pull the battery out.
- Page 8 SJ8 AIR p. 8 www.sjcam.com INSERTING A MICRO SD CARD INTO THE CAMERA Gently push the card in until Open the battery cover by sliding it Insert the card into the slot as it clicks into place. to the side.
- Page 9 SJ8 AIR p. 9 www.sjcam.com REMOVING THE CAMERA FROM THE WATERPROOF HOUSING Release clasp by sliding Lift the front side of the Unhinge the clasp Swing the backdoor Pull the camera out from and holding the lock. clasp as shown.
-
Page 10: The Main Screen
SJ8 AIR p. 10 www.sjcam.com THE MAIN SCREEN Video Lapse WVGA... - Page 11 SJ8 AIR p. 11 www.sjcam.com THE SCREENS Power O WVGA30fps Video Video Lapse Still Photo Lapse Long Exposure Video+Photo MotionDetection Car Mode Under Water...
- Page 12 SJ8 AIR p. 12 www.sjcam.com THE TOGGLES SCREEN WIFI Enable or disable the WIFI by tapping this and setting it. Remote Enable the remote by tapping this and setting it to ON. You will also see the Pair SJ Remote option here.
-
Page 13: The Playback Screen
SJ8 AIR p. 13 www.sjcam.com THE PLAYBACK SCREEN 720P30fps WVGA... - Page 14 SJ8 AIR p. 14 www.sjcam.com THE MODES SCREEN SWIPE UP to open mode settings Video Video Lapse Still Photo Lapse Long Exposure Video/Photo VIDEO> Mode for recording videos. VIDEO LAPSE> Timelapse photography stitched on-cam to produce a video. STILL> Still photograph mode.
- Page 15 SJ8 AIR p. 15 www.sjcam.com THE MODES SETTINGS Resolution WVGA30fps Loop Recording 3Minutes 1 Second Video Lapse Off Audio Time Stamp...
-
Page 16: Video Mode Options
TIME STAMP> Allows you to set between (On, Off) When enabled will display the date and time of your recording. LOGO WATERMARK> Allows you to set between (On, Off). Adds the SJCAM logo at the bottom of your recording. SHARPNESS> Allows you to set between (Strong, Normal, Soft). Changing the sharpness setting will make your images either crisper or smoother, White Balance adjust according to your preference. - Page 17 SJ8 AIR p. 17 www.sjcam.com VIDEO LAPSE OPTIONS VIDEO LAPSE> Allows you to set between (1 second to 1 minute). Video Lapse Sets the time interval between shots. RESOLUTION> Allows you to set between ( 1296P 30fps, 1080P 30fps, 720P 30fps, WVGA 30fps, VGA640x480).
- Page 18 SJ8 AIR p. 18 www.sjcam.com STILL MODE OPTIONS IMAGE SIZE> Allows you to set between (from 16M - 2M HD). Changes the size of still photos that will be recorded. Image Size Of course, the bigger the size the more detailed your pictures are at the expense of filesize.
- Page 19 SJ8 AIR p. 19 www.sjcam.com PHOTOLAPSE OPTIONS PHOTO LAPSE TIME> Allows you to set between (from 5S-20S Timer). Sets the interval between shots. IMAGE SIZE> Allows you to set between (16M4608x3456, 14M4320x3240, 12M4032x3024, 10M3648x2736, 8M3264x2448, 5M2592x1944, Photo Lapse Time 3M2048X1536, 2MHD). Changes the size of still photos that will be recorded.
-
Page 20: Long Exposure
SJ8 AIR p. 20 www.sjcam.com LONG EXPOSURE EXPOSURE TIME> Allows you to set between (Auto, 1/10 Second-2 Second). Sets how long the sensor collects light through the lens. Exposure Time IMAGE SIZE> Allows you to set between (from 16M - 2M HD). Changes the size of still photos that will be recorded. - Page 21 TIME STAMP> Allows you to set between (On, Off). When enabled, will display the date and time of your recording. LOGO Watermark LOGO WATERMARK> Allows you to set between (On, Off). Adds the SJCAM logo at the bottom of your recording. Sharpness SHARPNESS>...
-
Page 22: Motion Detection
TIME STAMP> Allows you to set between (On, Off). When enabled, will display the date and time of your recording. LOGO WATERMARK> Allows you to set between (On, Off). Adds the SJCAM logo at the bottom of your recording. SHARPNESS> Allows you to set between (Strong, Normal, Soft). Changing the sharpness setting will make your White Balance images either crisper or smoother, adjust according to your preference. - Page 23 TIME STAMP> Allows you to set between (On, Off). When enabled, will display the date and time of your recording. LOGO Watermark LOGO WATERMARK> Allows you to set between (On, Off). Adds the SJCAM logo at the bottom of your recording. Sharpness SHARPNESS>...
- Page 24 TIME STAMP> Allows you to set between (On, Off). When enabled, will display the date and time of your recording. LOGO WATERMARK> Allows you to set between (On, Off). Adds the SJCAM logo at the bottom of your recording. SHARPNESS> Allows you to set between (Strong, Normal, Soft). Changing the sharpness setting will make your images either crisper White Balance or smoother, adjust according to your preference.
-
Page 25: General Settings
SJ8 AIR p. 25 www.sjcam.com GENERAL SETTINGS LANGUAGE > Options for system language. This is the possibility to set between (English, Francais, Deutsch, Espanol, Italiano, Portugues, Language Chinese, Japanese, Polish, Czech, Polish, Dutch, Turkish, Slovak, Magyar and Dansk). DATE/TIME> Make adjustments to the camera’s system date and time. -
Page 26: File Management
Your device will show as a drive on ypur File Manager (Explorer on Windows, Finder in OSX) 2. Via WIFI though the SJCAM Zone App: a) Connect your camera to your phone: Device Settings > Wifi > Choose Your Camera b) Go to the app, tap the Gallery icon, then download the files you wish to transfer by tapping the Down arrow icon next to each file. - Page 27 SJ8 AIR p. 27 www.sjcam.com SMALL BOX - INCLUDED ACCESSORIES...
- Page 28 SJ8 AIR p. 28 www.sjcam.com BIG BOX - INCLUDED ACCESSORIES...
- Page 29 SJ8 AIR p. 29 www.sjcam.com OPTIONAL ACCESSORIES COMPATIBLE WITH SJ8 AIR (NOT INCLUDED)
- Page 30 SJ8 AIR p. 30 www.sjcam.com GET THE APP FOLLOW US Visit us at www.sjcam.com For technical assistance, go to support.sjcam.com...
