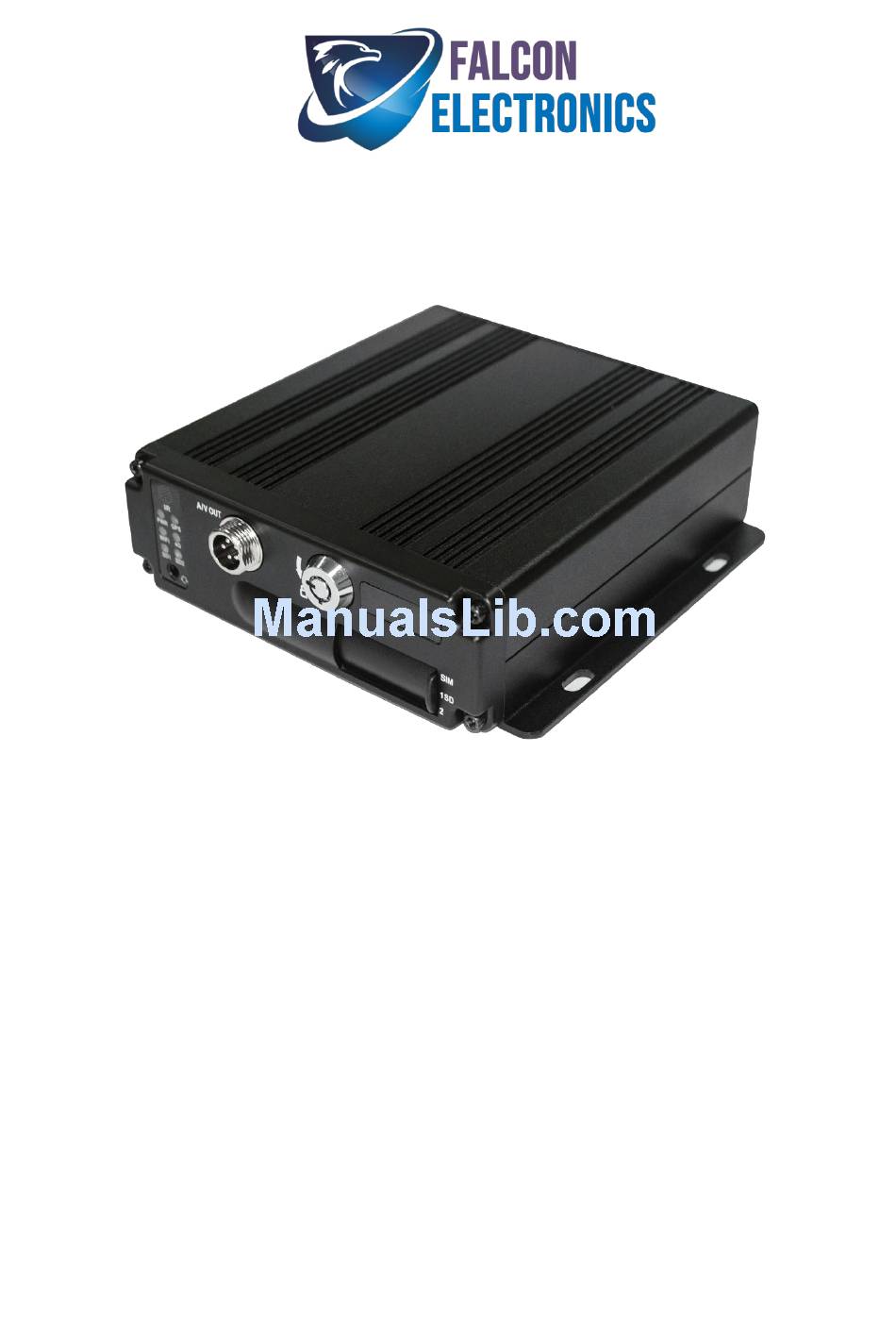

Falcon 4CH 960H Manual

Mini sd mobile dvr
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4CH 960H and is the answer not in the manual?

Questions and answers

Related Manuals for Falcon 4CH 960H

Summary of Contents for Falcon 4CH 960H

  • Page 2: Table Of Contents

    How to Build Server ..................Error! Bookmark not defined. 1 .Technical Parameters Items Device parameters Performance index Name Product Name 4CH 960H Mini SD Mobile DVR 4CH 720P Mini SD Mobile DVR Operation System Linux Operation Interface Graphical Interfaces, Chinese/English optional System...
  • Page 3 Image Compression H.264 Fixed Code Stream PAL: 4*960H（960*576） Image Format NTSC:4*960H（960*480） Video Stream 192Kbps-2.0Mbit/s（channel） Video Taking Up Of Hard Disk D1、960H:85M-675MByte/hour 720P:85MB-900MByte/hour Digital Processing & PAL: 1 or 4*960H(960*576) Playback Resolution NTSC: 1 or 4*960H(960*480) Storage Audio Bitrate 4KByte / s / channel Audio Taking Up Of Hard 14MByte / hour / channel Disk...

  • Page 4: Instruction Of Installation

    2 Instruction of Installation Instruction of External Interface Wiring Remarks:  If the power supply is 12V, then the current of 12V output can be just 1A. So if there are more than 3pcs cameras, we suggest customers to get power for other cameras from the 12V vehicle power directly or use Our special car power supply.
  • Page 5 Page 4...
  • Page 6 Page 5...

  • Page 7: Instruction Of Sd Card Installation

    2.2 Instruction of SD Card Installation Unlock the main board with key, make sure the “arrowhead” point to the left “turn on” and then switch it to the “turn off”. Note: The lock in the main board can also control the power. When the main board is locked, it also means the machine starts.

  • Page 8: Instruction Of Remote Control Operation

     LOCK: while removing the hard drive, use the key to unlock in order to remove the hard drive, unlock after machine’s auto-disconnects the power, the power auto-connect after being locked.  1: SD card1 slot  2: SD card2 slot ...
  • Page 9  :①Upward for MENU selection. ②”UP” direction for PTZ control mode.  :①Downward for MENU selection. ②”Down” direction for PTZ control mode.  : ①Towards to left for MENU selection or MENU setup. ②”Left” direction for PTZ control mode.  : ①Towards to right for MENU selection or MENU setup.

  • Page 10: Menu Setting Instruction

    Menu Setting Instruction: First press" "key, next press" " to enter the default password"6666", ”to enter the main menu interface; then press“ There are "System"、"Disk"、"Record"、"Playback"、"Network" and "Alarm"options, select the option by pressing these buttons" " ,then press " "to enter. Basic Settings: includes options of “system setting”, “PTZ setting”...
  • Page 11  Setup: Set the System time, Car Number, TV system, Language，etc.  Date format: Offer 3 display methods like “y/m/d, m/d/y, d/m/y” for personal habit.  Daylight saving time: suitable for according countries or areas.  Date: Adjust the date of HDD recorder ...
  • Page 12 enter the original password after press "OK", otherwise the DVR will keep staying in the changing password status, and the remote control will not work.  New password：Enter the new password Operating Way: Enter the menu, press“ ”to select the options ,then press“ ”to enter the 、...
  • Page 13  Device encoding: only for this DVR, the code is unique.  Software version: the version No. of DVR software.  IMIE: IMIE No. of 3G network or module  Strength Of 3G signal: strength value:99, unknown: 0-31  Strength Of GPS signal: AA-BB(AA: GPS No.;BB: GPS strength. Show signal strength of max.3 ...
  • Page 14  Car plate number: can be showed by English, Chinese simplified language, Numbers or common symbols.  Route: the driving route and code  Driver code: set up the driver code information  G-sensor:  GSensor-X：0000mg( default value, this value will change accordingly if the X direction gravity accelerated speed value is changeable) ...
  • Page 15  User action log, alarm logging, equipment status log  Disk：Check and format  Disk Name：Display the system recognized HDD name  Total Size: Display the total size of HDD  Free Size: Display the remaining Capacity of HDD  Format: Format HDD(only format the head files of HDD) Select this item，...

  • Page 16: Lan Setting

     Channel: select the channel setting (the information of each channel could be set independently)  Resolution：CIF/HD1/D1/720P； The left side is the local storage information, The right side is network transmission information; local “CIF,HD1,D1,720P” is optional, only “CIF” for network transmission ...

  • Page 17: Setting

    There are video date in the menu, it will display the vide time after enter the date, choose the playback time range as needed, press “Play” or click the interface “Playback “button to replay the video. Said is power outage file suffix "_P", suffix "_S" indicates an alarm trigger video files. ...

  • Page 18: C.wifi Setting

     LAN: connecting via RJ45  3G: NOT OFFERED ON THIS UNIT  WIFI: connecting the network of WIFI  IPC: To connect the IPC camera Settings  Local Network Setting（LAN）：  Network Type: LAN  DHCP: On (Recommend)  Server IP: 219.134.190.134 ...
  • Page 19 Noted: If you build your own server, pls kindly input the corresponding Server IP and Server Port,  Access Network setup →“WIFI”  SSID: WIFI router device name.  Password: using password for SSID  Certificate: Support both “WPA-PSK” and “WPA2-PSK” ...
  • Page 20  Alarm ：  Alarm REC：Alarm-triggered video duration （30-330s optional，30s unit）  Positioning Interval：GPS Data upload interval, used with other system interface Alarm output time (5s-900s)  Alarm out：  Over speed：Set the over speed alarm value  Motion Detect：Open and close motion detect record and motion detect sensitivity selection such as“off”,“high”,“medium”,“low”.Opening motion detect recording, also need to set the icon“S”(alarm record)for time range of the detect record in “Record Setting”...

  • Page 21: Video Backup

    High sensitivity Low sensitivity No detect  Record Sequence：Set the record mode of the different time range White blank：no record Red blank：record S blank：Alarm record If the record mode set to“continuous recording”or alarm recording”,the remote control stop key playback. 3.5 Video Backup Our company System support 2 video backup ways.

  • Page 22: Ptz Control

    3.7 Video Data Volume The required volumes of video and video-related settings ，please see the following table： Total Record 4CH 960H Data 4CH 720P Data Size VIDEO QUALITY Frame Size Per Hour Per Hour 2.0 Mbps （HIGHEST）...

  • Page 23: How To Build Server

    1.2 Mbps HIGH（default） 100 frame 2.1GB 3.09GB （BETTER） 1.0 Mbps 100 frame 1.8GB 2.58GB 768 Kbps （NORMAL） 100 frame 1.35GB 1.93GB （LOW） 512 Kbps 100 frame 0.9GB 1.29GB （LOWER） 320 Kbps 100 frame 0.55GB 0.81GB （LOWEST） 192 Kbps 100 frame 0.335GB 0.48GB Note: Based on users matching conditions to apply the appropriate drive and related settings.
  • Page 24 step: Come into DVR_Server installation directory: Step: Click “DVR Server” and “Server Install” to run them please, and them it will come out “DVR Server” configuration file: Page 23...
  • Page 25 Steps: Open “DVR_Server configuration file, you will find there ports: 8001,8101,9001 and open the three ports on your router: Noted: If the three ports have been used for other things, you just need to change the ports, like 7001,6001,6101 and then open 7001,6001,6101 three ports on your router, it will be ok. Also, all the server management will go on in the this configuration file.
  • Page 26 Step: After all this setting, the server should be built successfully, so that you better ask your partner to log in the CMS software to make sure of it. Steps:install the SQL_Server 2003 or SQL_Server 2005 to build your own database to use our new Page 25...
  • Page 27 powerful functions. And at first, pls come into DVR_Server configuration file to input your SQL IP, user name, and password: ” to configurate the database: Log in CMS software and click “ Page 26...
  • Page 28 Falcon Electronics LLC 3000 Custer Rd, Ste 270-542 Plano, TX 75075 972.600.1320 www.dashcam.co Page 27...
