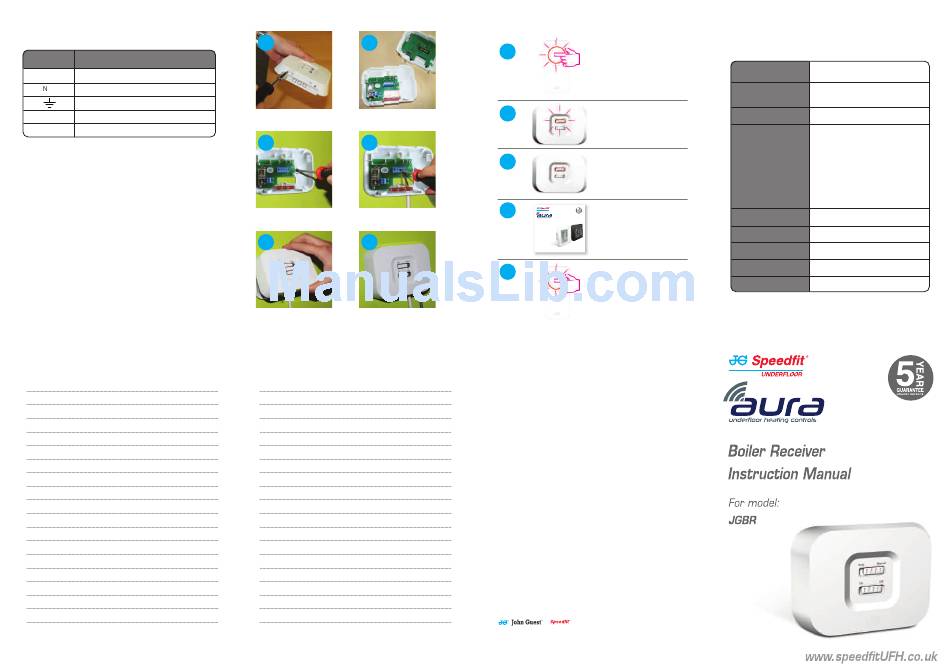

Aura JGBR Installation Manual

Installation

Electrical Connection
Terminal Function
COM Common Contact (volt free input)
O Normally Open Contact (volt free output)
Earth Parking
L Incoming Mains - Live
N Incoming Mains - Neutral
The JGBR Receiver should be mounted in a suitable location that is both
accessible for the connection of mains and control wiring, and allows good
reception of the wireless signal. The Receiver needs a 230v AC mains
supply to operate, and this should be fused appropriately (16A max.).
The Receiver should be mounted in a location where it will not come into
contact with water, moisture or condensation. There are few electrical
connections required to the JGBR, and these connections should be made
to the terminal block inside the Receiver. No Earth connection is required
for the correct and safe operation of the JGBR, but a parking terminal is
provided to connect an Earth wire if one is present.

Installer Notes

1 2
Loosen the screws at the bottom of the Unclip the front of the unit.
receiver unit.
3 4
Fit the back of the receiver unit to the Use schematics to wire up, selecting
wall using the fittings supplied. RX1 or RX2.
5 6
Clip the front of the unit back on by Securely screw the front of the receiver
aligning the fittings and pushing into place. in place.
Installer Notes
Power Up
Ensure Coordinator is powered up
1
and ready for pairing.
2 Power up the receiver.
The red light will flash.
When the receiver has successfully
3
joined the Zigbee network, the red
LED will go steady.
4
Please refer to JGSTATW1
/JGSTATW2 Installation Manual for
Wireless Thermostats
230v and Battery Operated system pairing.
Installation Manual
For models:
JGSTATW2W
JGSTATW2B
JGSTATW1W
JGSTATW1B
www.speedfitUFH.co.uk
5 Once your system setup is
complete, remember to take the
coordinator out of pairing mode.
John Guest Speedfit Limited
Horton Road, West Drayton, Middlesex UB7 8JL, England.
Tel: 01895 449233
Fax: 01895 420321
www.speedfitUFH.co.uk
Technical Help Desk: 01895 425333
and
The above namestyles are all trademarks of John Guest International Limited.
© John Guest International Limited 2014. All rights reserved.
Z2105/420/1114

Technical Detail

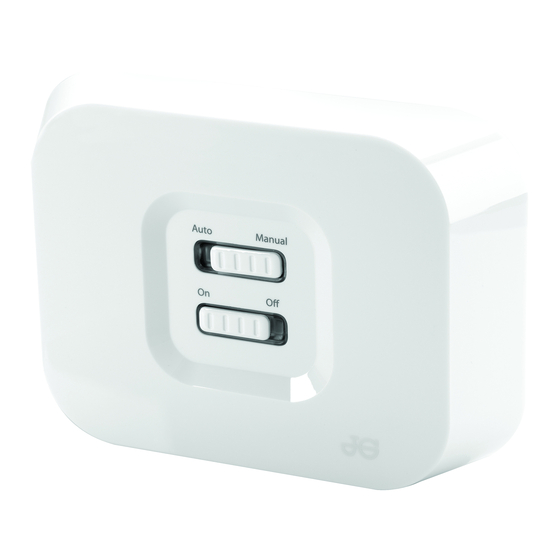

Model JGBR
Type Wired system receiver designed for
230v AC heating applications
Control ON-OFF control
Environment Ratings
Operating Temperature 0ºC to +50ºC
Storage Temperature -20ºC to +60ºC
Operating Humidity 5-95 %RH
Switch Voltage 0-230v AC 16AMP
Power Source 230v AC 50Hz

User Interface

Slide switch, Bi Colour LED, RED/GREEN
Operating Temperature 0ºC to 50ºC
Storage Temperature -20ºC to 60ºC
Frequency 2.4 GHz
