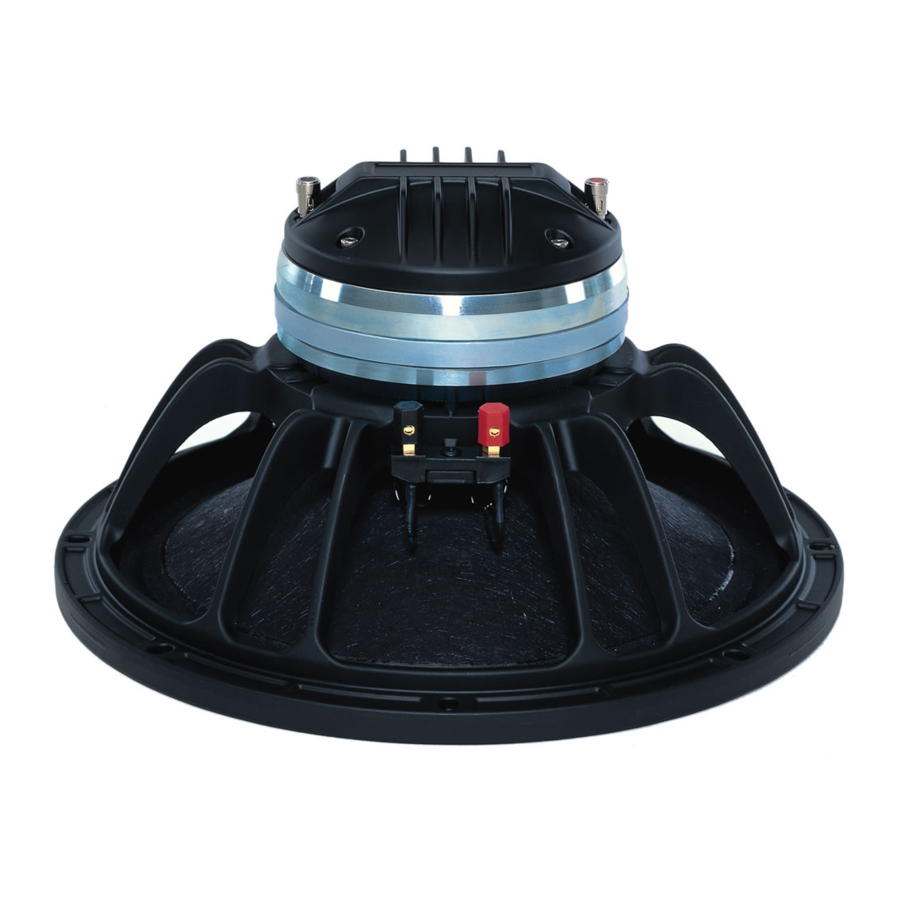

B&C Speakers Coaxials 12CXN76 Specifications

12CXN76
Coaxials
700 W continuous program power capacity
Single Neodymium magnet assembly
80° nominal coverage
45 – 18000 Hz response
99 dB sensitivity

Specifications

Nominal Diameter 320 mm (12 in)
Nominal Impedance
Minimum Impedance 6.5 ohm (LF)
8.0 ohm (HF)
Frequency Range 45 - 18000 Hz
Dispersion Angle (1)
LF Unit
Sensitivity (1W/1m) (2)
Nominal Power Handling (3)
Continuous Power Handling (4)
Voice Coil Diameter
Winding Material
HF Unit
Sensitivity (1W/1m) (5)
Nominal Power Handling (6)
Continuous Power Handling (7)
Voice Coil Diameter
Winding Material
Diaphragm Material Polyester/Titanium
Recom. Crossover (8)
Parameters
Fs
Re
Qes
Qms
Qts
Vas 120 dm3 (4.2 ft3)
Sd 522 cm2 (80.9 in2)
Eta Zero
Xmax
Xvar
Mms
Bl
Le
Mounting and Shipping Info
Overall Diameter 315 mm (12.4 in)
Bolt Circle Diameter 298 mm (11.7 in)
Baffle Cutout Diameter 282 mm (11.1 in)
Depth 168 mm (6.6 in)
Flange and Gasket Thickness 14 mm ( 0.55 in )
Net Weight 5.0 kg (11.0 lb)
Shipping Weight 5.9 kg (13.0 lb)
Shipping Box 380x380x240 mm
(15x15x9.4 in)
1 Included by –6 dB down points, averaged from 1 kHz to 8 kHz
8 ohm
80°
99 dB
350 W
700 W
76 mm (3 in)
Copper
105 dB
80 W
160 W
75 mm (3 in)
Aluminium
1.2 kHz
42 Hz
5.0 ohm
0.20
8.0
0.19
4.1 %
+/- 4 mm
+/- 6 mm
47 g
17.6 Txm
0.8 mH
