Trane TR-BAC-1000-DX2 User Manual

Touch Screen Room Thermostat
User Guide
Model： TR-BAC-1000-DX2
Welcome
Your new thermostat will provide year of reliable
service. Using this digital thermostat will provide
more uniform comfort in your home through the
seasons. Thank you for buying the product!
Please read this manual for complete instructions
on installing and operating your thermostat. If you
require further assistance, please feel free to
contact us.
In the box you will find
1pc Screws
Thermostat
Wall plate
1pc
User Guide
External Sensor 1pc
Service
We offer the warranty of 18 months from the sales day.
If it is not the problem of quality or beyond the warranty
time, we will charge for the after-sale service.
Technical Data of your thermostat
Sensor：NTC Accuracy：±0.5℃
Temp. Range：5 -35℃ Power Consumption：<1.5W
Timing error：<1％ Dimension：86x86x13.3mm
Current Load：3A for Compressor, 5A for Fan
Shell Material：PC （Fireproof）
Power Supply ： AC24V , 50 ~60Hz
Installation box：86*86mm or European 60mm
Ambient Temp.：0 ~ 45℃，5 ~ 95％RH(Non condensing）
Storage Temp：-5~ 55℃

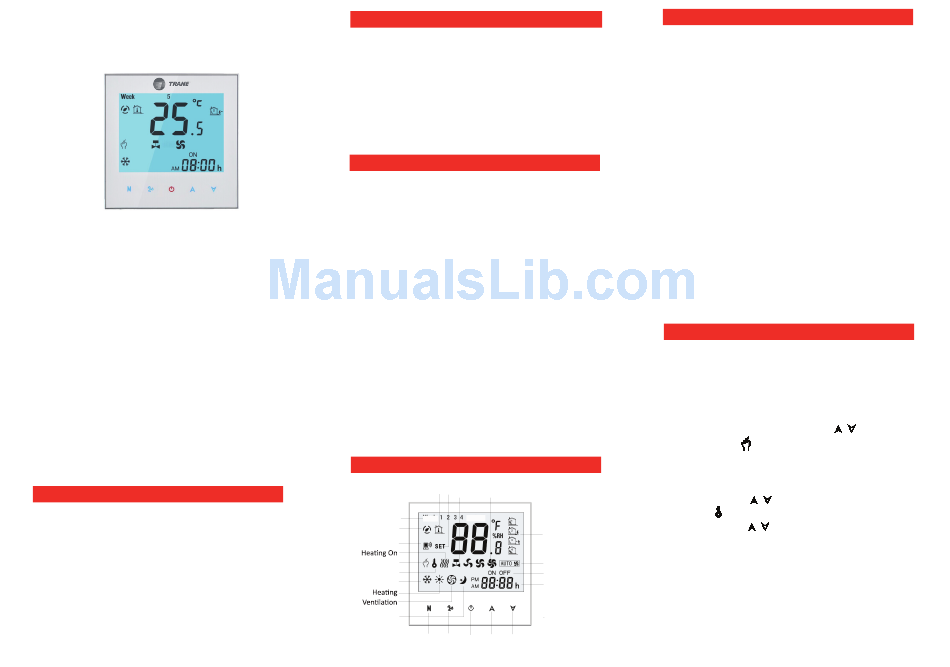

About your thermostat

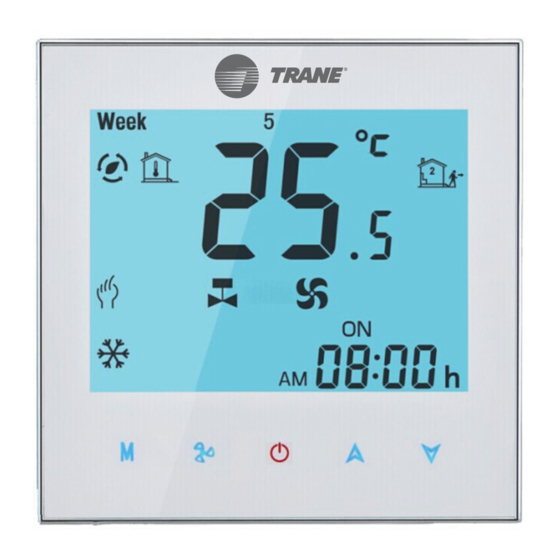

TR-BAC-1000-DX2 series Modern Touch Screen
Room Thermostats are designed to on/off control
the compressor in air conditioner applications
via comparison of the room temperature and
setting temperature as reaching the aim of
comfort and saving energy . . TR-BAC-1000-DX2 are
microprocessor based thermostat with LCD
display.
Features of your thermostat
Modern desgin similar as a cell phone.
Beautiful Frame CHROME creates elegant life.
Acrylic lenses to avoid the finger scrath.
Touch Button makes simple operation.
Large screen display with backlight is easy to
read—even in the dark.
5+2 four periods program schedules maximize
comfort and economy.
One-touch temp control overrides program
schedule at any time.
Precise comfort control keeps temperature within
0.5°C of the level you set.
Internal and external sensor selectable is
suitable for any place.
Data memory when power is off.
2pc
Easy installation.
1pc
86mm hidden box and european 60mm round
box is available.
1 - 5 minutes delay time protection for the
compressor on/off.
Home screen quick reference
Room
Temp.
Stage
Energysaving
Network
Manual
Lock
Cooling
Sleeping
Mode
Set
Fan
Valve
Temp.
Speed
On/off
Period
Auto Fan
Timing On/Off
Clock
Fan Down
Power
Up
On/off
Compressor Control Functional
Mode Control: Troom: Room Temperature
Tset: Setting Temperature
When Troom ＞ ( Tset + Deadzone Temp.）,
the compressor will start operating according to
the minumum output on time;
The deadzone temp. could be set in the item 11
of high senior options. Factory setting is 0 °C.
When Troom≦ (Tset ), the compressor will stop
according to the minimum output off time.
The minimum output on/off time could be set in the
item 10 of high senior options.
Factory setting is 3 minutes.
Note:
1. When you turn on your thermostats, the
compressor will output immediately;
2. The compressor will keep working for 3 minutes
( according to your setting of minimum output on/off
time) even if the thermostats have sent signal to
operate or stop.
Operation
1. Setting the Temperature
a. In the mode of programmable, set
temperature, time and timing on/off could not be
adjusted. If the user want to change, please
reprogram.
b. In the mode of manual, press
temperature. will display in the left corner of
screen.
2. Setting Lock (optional function)
Press and hold for 3 sec. to lock the screen.
The icon will display on the screen.
Press and hold again for 3 sec. to unlock the
screen.
to set
