3.1

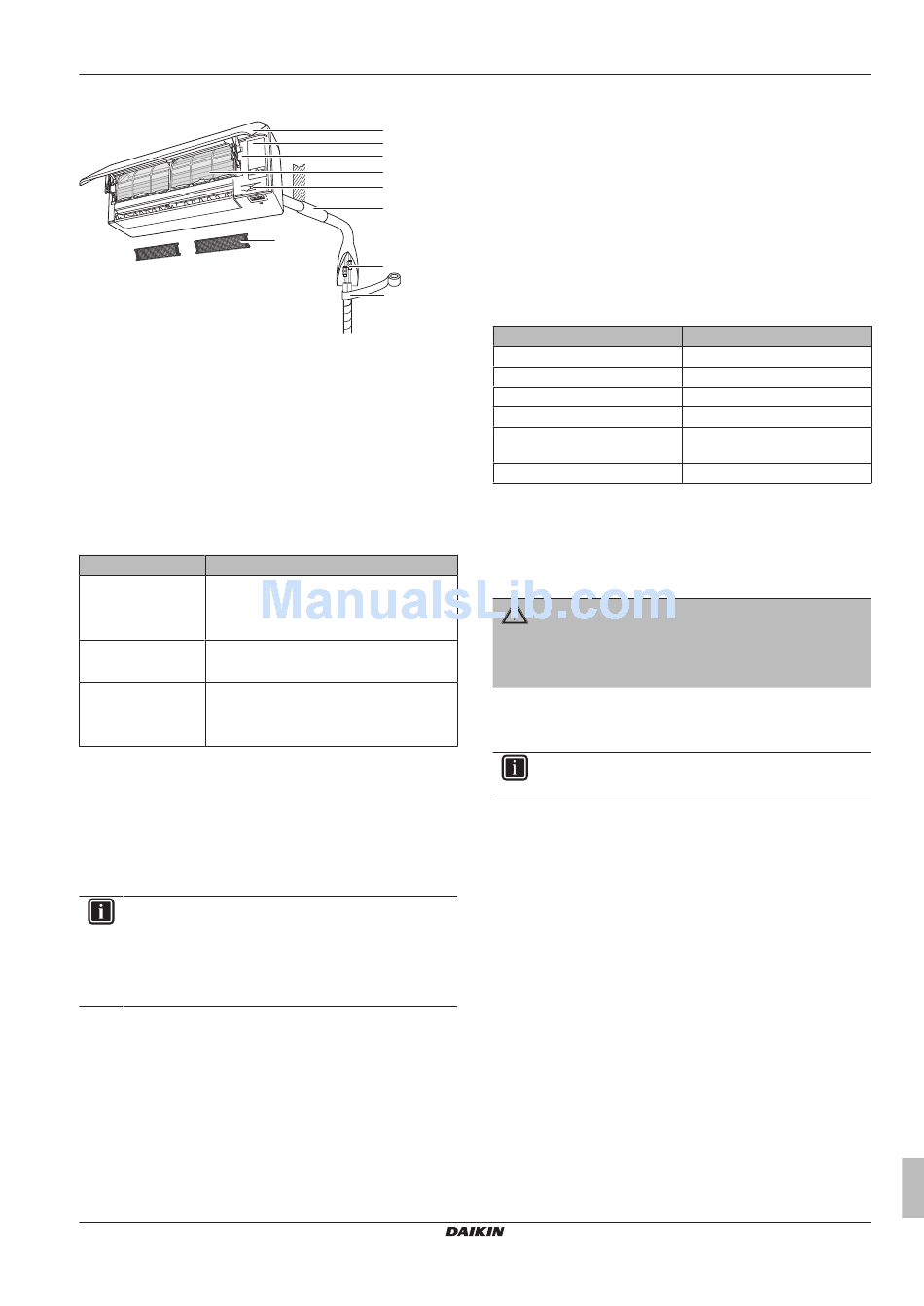

System layout

a Front panel
b Service cover
c SSID sticker
d Air filter
e Intelligent eye sensor
f Caulk pipe hole gap with putty
g Refrigerant piping, drain hose and interconnection cable
h Insulation tape
i Titanium apatite deodorizing filter and silver particle filter
(Ag-ion filter)
3.2

Operation range

Use the system in the following temperature and humidity ranges for
safe and effective operation.
Operation mode
(a)(b)
Cooling ▪ Outdoor temperature: –10~46°C
▪ Indoor temperature: 18~32°C
▪ Indoor humidity: ≤80%
(a)
Heating ▪ Outdoor temperature: –15~24°C
▪ Indoor temperature: 10~30°C
(a)
Drying ▪ Outdoor temperature: –10~46°C
▪ Indoor temperature: 18~32°C
▪ Indoor humidity: ≤80%
If operated outside the operation range:
(a) A safety device might stop the operation of the system.
(b) Condensation might occur on the indoor unit and drip.
3.3

About the wireless adapter

For detailed specifications, installation instructions, setting methods,
FAQ, declaration of conformity and the latest version of this manual,
visit http://www.onlinecontroller.daikineurope.com.
INFORMATION
▪ Daikin Industries Czech Republic s.r.o. declares that
the radio equipment type inside of this unit is in
compliance with Directive 2014/53/EU.
▪ This unit is considered as combined equipment
according to the definition of Directive 2014/53/EU.
(C)(F)TXA15~50A2V1B(W)(S)(T)
Daikin room air conditioner
3P482320-7H – 2018.02
a
b
c
d
e
f
i
g
h
Operation range
3.3.1 Precautions when using the wireless
adapter
Do NOT use near:
▪ Medical equipment. E.g. persons using cardiac pacemakers or
defibrillators. This product
interference.
▪ Auto-control equipment. E.g. automatic doors or fire alarm
equipment. This product may cause faulty behaviour of the
equipment.
▪ Microwave oven. It may affect wireless LAN communications.
3.3.2

Basic parameters

What
Frequency range
Radio protocol
Radio frequency channel
Output power
Effective radiated power
Power supply
4

Preparation

4.1

Preparing the installation site

WARNING
The appliance shall be stored in a room without
continuously operating ignition sources (example: open
flames, an operating gas appliance or an operating electric
heater).
4.1.1 Installation site requirements of the
indoor unit
INFORMATION
The sound pressure level is less than 70 dBA.
▪ Air flow. Make sure nothing blocks the air flow.
▪ Drainage. Make sure condensation water can be evacuated
properly.
▪ Wall insulation. When conditions in the wall exceed 30°C and a
relative humidity of 80%, or when fresh air is inducted into the
wall, then additional insulation is required (minimum 10 mm
thickness, polyethylene foam).
▪ Wall strength. Check whether the wall or the floor is strong
enough to support the weight of the unit. If there is a risk, reinforce
the wall or the floor before installing the unit.
Install power cables at least 1 metre away from televisions or radios
to prevent interference. Depending on the radio waves, a distance of
3 metres may NOT be sufficient.
▪ Choose a location where the hot/cold air discharged from the unit
or the operation noise, will NOT disturb anyone.
▪ Fluorescent lights. When installing a wireless user interface in a
room with fluorescent lights, mind the following to avoid
interference:
▪ Install the wireless user interface as close as possible to the
indoor unit.
▪ Install the indoor unit as far as possible from the fluorescent
lights.
4 Preparation
may cause electromagnetic
Value
2400 MHz~2483.5 MHz
IEEE 802.11b/g/n
1~11
0 dBm~18 dBm
17 dBm (11b) / 13 dBm (11g) /
12 dBm (11n)
DC 14 V / 100 mA
Installation manual
3
