Domenor D87 User Manual

General vehicle ptz camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
General Vehicle PTZ Camera

User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D87 and is the answer not in the manual?

Questions and answers

Related Manuals for Domenor D87

Summary of Contents for Domenor D87

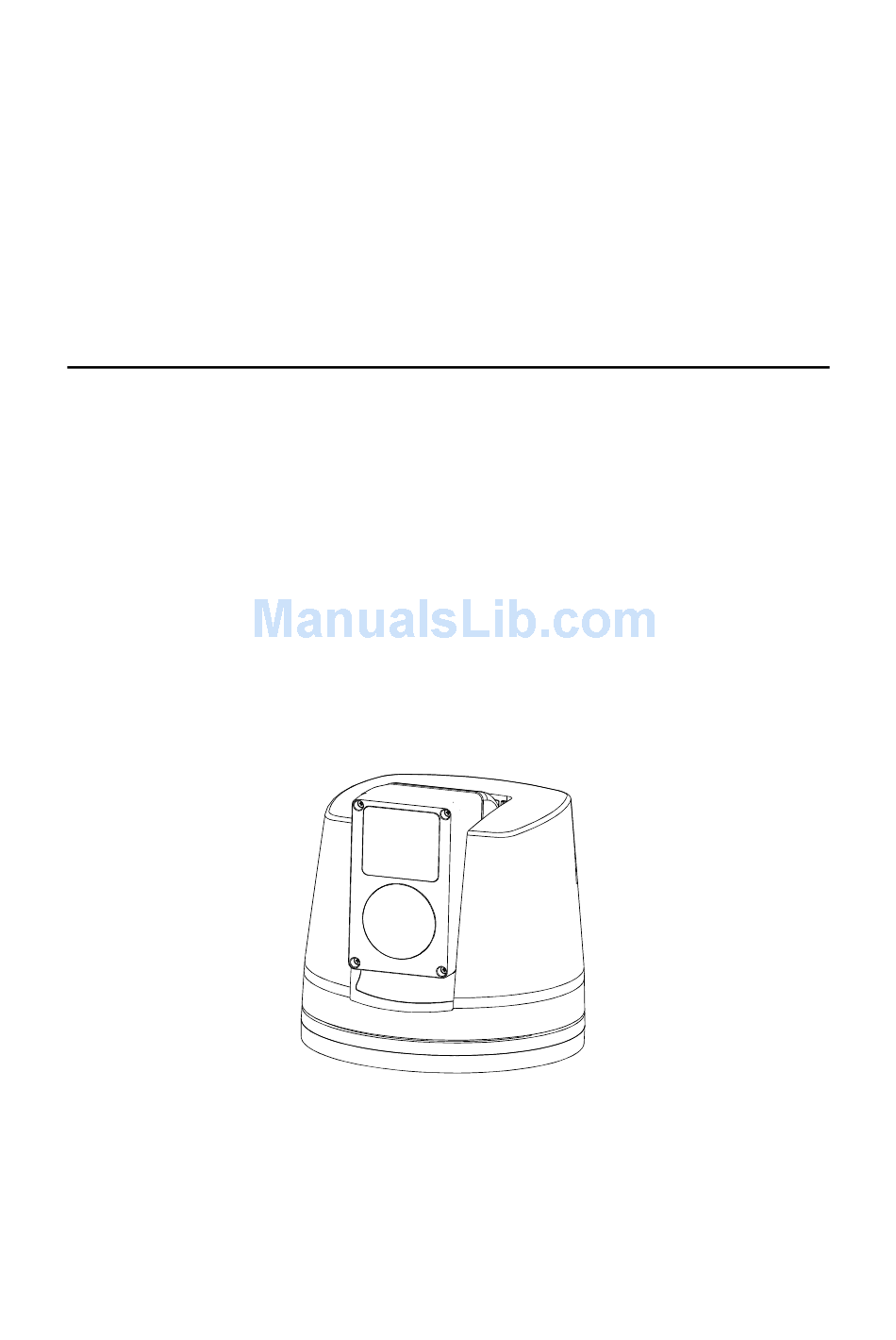

  • Page 1: User Manual

    General Vehicle PTZ Camera User Manual...

  • Page 2: Table Of Contents

    TABLE OF CONTENT Precaution ---------------------------------------------------------------------------------------------------1 2. Performance-------------------------------------------------------------------------------------------2 2.1 Dome parameter ------------ ------------------- -------------- ------------------------------------------ 2.2 Camera parameter----------- ----------------------------------------- - ----------------------------- 2.3 Performance & Feature ----------- -------------------------------------- ----- -------------------------------- Function instruction ---------------------------------------------------------------------------------------5 3.1 C amera ID --------------- ------------------------- ------------ -------- ------------------------------5 Auto-run motion ----------- ----------------------...
  • Page 3 5.8.2 White balance mode ---------- ---------------- ----- ------------------------------------------26 Function setting -------------------------------------------------------------------------------------------27 Preset ------------- --------------- ------- ------- ------------------------------------------------------ Scan -------------- --------------------------------- ------- ----------------------------------------------- Pattern ---------------- --------------------------- --------- ---------------------------------------------- 6.4 Tour------------ --------------------- ------- -------------- -------------------------------------------30 Zone ---------------- ---------------------------- -----------------------------------------------------31 6.6 Time running---------------- ---------------------------- -------------------------------------------32 Privacy zone masking...

  • Page 4: Precaution

    Precaution 1. Precaution Ø Electrical safety Conform to country and local electrical safety standard when using or installing the product. Ø Transportation with care The PTZ should be protected against extremes of pressure, vibration and humidity during storage installation and transportation. The infrared PTZ camera is transported by integrated packing.

  • Page 5: Performance

    Performance 2. Performance 2. 1 Dome parameter Setting: Electrical： （ ） DC 12V 2400/4800/9600/19200bps Power supply Baud rate RS485 Sixteen protocols, including PELCO, Protocol Consumption Kalatel, Phlips, Diamond, etc. Decoder Address setting 0-254 Built-in Operation: Environmental: ° ℃ 360 continuously Operational environment Pan rotation 60℃...

  • Page 6: Performance & Feature

    Performance 2. 3 PTZ Performance and feature The intelligent Pan/tilt was complete new design, compact structure, built-in constant temperature device and rapidly heat dissipation from chip; wiper function can retain full resolution picture in raining day; AMP socket is convenient for installation; Infrared LED range more than 60 meters; Camera rotate flexibly with low noise, wide range capture and certain auto-functions can provide perfect quality of image for customer.
  • Page 7 Performance Ø Internal temperature test Set real time display ● When the temperature exceeds the limit, the screen will display alarm information. ● When the temperature is under the limit, the PTZ will delay to startup, and when the heat device ●...

  • Page 8: Function Instruction

    Function Instruction 3. Function Instruction This passage mainly describes the main function and general principle of intelligence PTZ, and not refer to the concrete operation methods. Different system platform has different operation methods, generally, should according to the system manufactory's operation manual. Please contact dealer to get necessary information, there are some particular requirements and operations under specific condition.

  • Page 9: Monitor Function

    Function Instruction 3. 3 Camera control Ø Magnification control “ ” The user can control Wide/Tele to adjust zoom far and near of the image by keyboard controller to obtain panoramic image or close view that you need. The PTZ support digital zoom and optical zoom. Ø...
  • Page 10 Function Instruction Ø Scan The operator can promptly set right limit and left limit in advance by keyboard and menu, so as to make the camera repeatedly scanned between right and left limit at setting speed. Ø Pattern Pattern is built-in function in camera; the PTZ can record tracks that are no less than 180s, when running pattern, the PTZ moves repeatedly according to the recorded tracks.

  • Page 11: System Setting

    System Setting 4. System setting 4. 1 Basic operation 4. 1. 1 Self-testing The PTZ conducts self-testing after current-carrying , and it rotates slowly until displaying pan origin that is default setting, then moving to tilt origin, the lens is adjusted from far zoom to near zoom, then from near zoom to far zoom, when self-testing is finished, there is relevant system information displaying on the screen, as follow: S/N of the PTZ...

  • Page 12: Edit Dome Label

    System setting 4. 2 Edit dome label MAIN MENU When using a lot of PTZ, in order to identify each PTZ, the systems support SYSTEM SETTING ： title setting. The setting ways as follow CAMERA SETTING FUNCTION SETTING The system enters into the main menu by calling 95 preset or by calling WINDOW BLANKING 9 preset twice within 3 seconds.

  • Page 13: Display Setup

    System Setting 4. 3 Initial information MAIN MENU The system enters into the main menu by calling 95 preset or by calling SYSTEM SETTING 9 preset twice within 3 seconds. CAMERA SETTING FUNCTION SETTING 【 】 WINDOW BLANKING Operate joystick and move the cursor to SYSTEM SETTING , press 【...

  • Page 14: Display Setup

    System setting 4. 4 Display setup MAIN MENU 1. The system enters into the main menu by calling 95 preset or by calling SYSTEM SETTING 9 preset twice within 3 seconds. CAMERA SETTING FUNCTION SETTING 【 】 Operate joystick and move the cursor to SYSTEM SETTING , press WINDOW BLANKING 【...

  • Page 15: Auto Flip

    System Setting 4. 5 Systematic motion control SYSTEM SETTING Systematic motion controlling may control a series of canonical mov- EDIT PTZ LABEL ement of the PTZ, and play an important role in controlling the PTZ. INITIAL INFO DISPLAY SETUP MOTION .

  • Page 16: Park Action

    System setting 4. 5. 3 Park action MOTION This setting allows the PTZ to run an appointed action after it enters AUTO FLIP vacancy for a few time (1-240minutes). If default sets as 0, it means not to PROPORTION PAN run this action automatically.

  • Page 17: Advance Setting

    System Setting 4.5.6 Advance setting 【 】 【 】 1.Operate joystick and move to ADVANCE SETTING press OPEN MOTION to enter into "advance setting"; 【 】 EIS ENABLED Electronic Image Stabilizer function; AUTO FLIP PROPORTION PAN 【 】 PRESET FREEZE Function of Preset Freeze means during PARK TIME calling presets, the monitor displays the image before call presets, and...

  • Page 18: Clear

    System setting 4. 6 Clear MAIN MENU . The system enters into the main menu by calling 95 preset or by calling SYSTEM SETTING 9 preset twice within 3 seconds. CAMERA SETTING FUNCTION SETTING WINDOW BLANKING 【 】 Operate joystick and move the cursor to SYSTEM SETTING , press ALARMS 【...

  • Page 19: Password Setup

    System Setting 4. 7 Password setup MAIN MENU 1. The system enters into the main menu by calling 95 preset or by calling 9 SYSTEM SETTING preset twice within 3 seconds. CAMERA SETTING FUNCTION SETTING 【 】 Operate joystick and move the cursor to SYSTEM SETTING , press WINDOW BLANKING...
  • Page 20 System setting 4. 8 Clock setting MAIN MENU 1. The system enters into the main menu by calling 95 preset or by calling 9 SYSTEM SETTING preset twice within 3 seconds. CAMERA SETTING FUNCTION SETTING 【 】 2. Operate joystick and move the cursor to SYSTEM SETTING , press WINDOW BLANKING...

  • Page 21: Clock Setting

    System Setting 4. 9 Dome Address Setting MAIN MENU The system enters into the main menu by calling 95 preset or by calling 9 SYSTEM SETTING preset twice within 3 seconds. CAMERA SETTING FUNCTION SETTING 【 】 Operate joystick and move the cursor to SYSTEM SETTING , press WINDOW BLANKING...

  • Page 22: Camera Setting

    Camera setting 5. Camera setting MAIN MENU 5. 1 Zoom speed SYSTEM SETTING CAMERA SETTING The system enters into the main menu by calling 95 preset or by calling 9 FUNCTION SETTING preset twice within 3 seconds. WINDOW BLANKING ALARMS LANGUAGE 【...

  • Page 23: Digital Zoom Control

    Camera Setting 5. 2 Digital zoom control MAIN MENU The system enters into the main menu by calling 95 preset or by calling SYSTEM SETTING 9 preset twice within 3 seconds. CAMERA SETTING FUNCTION SETTING WINDOW BLANKING 【 】 Operate joystick and move the cursor to CAMERA SETTING , press ALARMS 【...

  • Page 24: Back Light Compensation

    Camera setting 5. 3 Back light compensation MAIN MENU The system enters into the main menu by calling 95 preset or by calling 9 preset SYSTEM SETTING twice within 3 seconds. CAMERA SETTING FUNCTION SETTING 【 】 WINDOW BLANKING . Operate joystick and move the cursor to CAMERA SETTING to enter ALARMS...

  • Page 25: Slow Shutter Control

    Camera Setting 5. 4 Slow shutter control MAIN MENU The system enters into the main menu by calling 95 preset or by calling SYSTEM SETTING 9 preset twice within 3 seconds. CAMERA SETTING FUNCTION SETTING WINDOW BLANKING 【 】 Operate joystick and move the cursor to CAMERA SETTING to enter ALARMS submenu.

  • Page 26: Line Sync Control

    Camera setting 5. 5 Line sync control MAIN MENU The system enters into the main menu by calling 95 preset or by calling 9 SYSTEM SETTING preset twice within 3 seconds. CAMERA SETTING FUNCTION SETTING 【 】 Operate joystick and move the cursor to CAMERA SETTING , press WINDOW BLANKING 【...

  • Page 27: Ir Cut Filter

    Camera Setting 5. 7 IR cut filter MAIN MENU . The system enters into the main menu by calling 95 preset or by calling 9 SYSTEM SETTING preset twice within 3 seconds. CAMERA SETTING 【 】 . Operate joystick and move the cursor to CAMERA SETTING to enter FUNCTION SETTING...

  • Page 28: Advance Setting

    Camera setting 5. 8 Advance setting MAIN MENU The system enters into the main menu by calling 95 preset or by calling 9 SYSTEM SETTING preset twice within 3 seconds. CAMERA SETTING FUNCTION SETTING 【 】 Operate joystick and move the cursor to CAMERA SETTING to enter WINDOW BLANKING...

  • Page 29: White Balance Mode

    Camera Setting 5. 8. 2 White balance mode MAIN MENU 【 】 【 】 System supports AUTO , indoor mode INDOOR , outdoor SYSTEM SETTING 【 】 【 】 【 】 mode OUTDOOR , auto track mode ATW , single mode OPW , CAMERA SETTING 【...

  • Page 30: Function Setting

    Function setting 6. Function setting 6. 1 Preset MAIN MENU . The system enters into the main menu by calling 95 preset or by calling SYSTEM SETTING “ 9 preset twice within 3 seconds. Click each command to enter preset CAMERA SETTING ”...

  • Page 31: Scan

    Function setting 6. 2 Scan MAIN MENU Scan is that pre-seting the right and left limit of dome, then the camera SYSTEM SETTING repeatedly scan between the two points at a stable speed, the same magnifi- CAMERA SETTING cation and pan. Each dome has four scan. FUNCTION SETTING WINDOW BLANKING The system enters into the main menu by calling 95 preset or by calling...

  • Page 32: Pattern

    Function setting 6. 3 Pattern MAIN MENU Pattern is built-in function in camera; the PTZ can record tracks that are SYSTEM SETTING no less than 180s. (A series of pan/tilt controlling and lens controlling CAMERA SETTING command). Each PTZ may set up to 4 pattern tours. FUNCTION SETTING 1.

  • Page 33: Tour

    Function setting 6. 4 Tour MAIN MENU Tour is the built-in function in the PTZ, it will arrange the presets SYSTEM SETTING into the queue of auto-tour, and can set how long it will park at preset. CAMERA SETTING Operate auto-tour is a process of incessantly transfer each preset. One FUNCTION SETTING tour can store 32 presets at most.

  • Page 34: Zone

    Function setting 6. 5 Zone MAIN MENU Each PTZ may be set up to 8 zones; the regional scene can't be overlapped. SYSTEM SETTING 【 】 User can set label for each zone. When setting ZONE LABEL as ON, CAMERA SETTING the PTZ will display zone label as it runs some zone.

  • Page 35: Time Running

    Function setting 6. 6 Time Running MAIN MENU User can set the time of preset, scan, tour and pattern. SYSTEM SETTING CAMERA SETTING 1. Call 95 preset or call 9 preset twice within 3 seconds to enter into the main FUNCTION SETTING menu.

  • Page 36: Privacy Zone Masking

    Privacy zone masking 7. Privacy zone masking MAIN MENU Privacy function can show someone piece of regional shielding while SYSTEM SETTING protecting. For example, protect the window of bedroom or ATM of bank. A CAMERA SETTING PTZ can set up to 24 privacy windows.(Masking setting function is relat FUNCTION SETTING with the model of camera module.

  • Page 37: Alarm Function

    Alarm function 8. Alarm function MAIN MENU The PTZ may connect with 7 alarm input, 2 alarm output, and support alarm SYSTEM SETTING linkage. The external alarm message sends to the PTZ, then the PTZ moves to CAMERA SETTING alarm point shoot (to call preset, auto scan, auto cruise and auto pattern), and choose FUNCTION SETTING that to run alarm output or not.
  • Page 38 Alarm Function 8. 1 ARM Setting MAIN MENU 1. Call 95 preset or call 9 preset twice within 3 seconds and then input the SYSTEM SETTING password to enter the main menu. CAMERA SETTING FUNCTION SETTING 【 】 【 】 2.

  • Page 39: Set Language

    Set language 9. Set Language MAIN MENU SYSTEM SETTING 1. Call 95 preset or call 9 preset twice within 3 seconds and then input the CAMERA SETTING password to enter the main menu. FUNCTION SETTING WINDOW BLANKING 【 】 【 】...

  • Page 40: Menu Index

    Appendix 10. Appendix MAIN MENU 10. 1 Menu Index SYSTEM SETTING CAMERA SETTING FUNCTION SETTING WINDOW BLANKING ALARMS LANGUAGE EXIT SYSTEM SETTING CAMERA SETTING FUNCTION SETTING WINDOW BLANKING ALARMS EDIT DOME LABEL ZOOM SPEED HIGH PRESETS RESUME WINDOW NUMBER INITIAL INFO DIGITAL ZOOM SCAN SEQUENCE...

  • Page 41: Rs485 Bus Basic Knowledge

    Appendix 10. 2 RS485 Bus Basic Knowledge Ø Characteristics of RS485 Bus As specified by RS485 standard, Rs485 Bus is of half -duplexed data transmission cables with characteristic Ω impedance as 120 . The maximum load capacity is 32 120Ω 120Ω...
  • Page 42 Appendix Ø Problems in practical connections In some circumstances user adopts a star co- In such circumstances the factory recommends nfiguration in practical connection. The termina- the usage of RS485 distributor. The distributor can tion resistors must be connected to the two equi- change the star configuration connection to the mode pment 1# and 5# in Picture 10.2-3.

  • Page 43: Dip Switch Setup

    Appendix （ ） 10. 3 DIP switch setup 10. 3. 2 Protocol setup SW2 Open base, there are two code switches with （ ） 8 digits, SW1and SW2. SW1 is for setting of PTZ SWITCH NUMBER SW2 PROTOCOL ID. SW2 is for settings of control protocol, baud (Bit) rate, terminal resistance connect.
  • Page 44 Appendix (Sw1) (Sw1) S w i t c h n u m b e r S w i t c h n u m b e r (Bit) (Bit) 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 Factory defaults 0 1 0 0 0 1 0 0 0 0 0 0 0 0 0 0...
  • Page 45 Appendix S w i t c h n u m b e r (Sw1) (Sw1) S w i t c h n u m b e r (Bit) 1 2 3 4 5 6 7 8 (Bit) 1 2 3 4 5 6 7 8 0 1 1 0 0 1 1 0 0 0 1 0 0 0 1 0 1 1 1 0 0 1 1 0...
  • Page 46 Appendix (Sw1) (Sw1) S w i t c h n u m b e r S w i t c h n u m b e r (Bit) 1 2 3 4 5 6 7 8 (Bit) 1 2 3 4 5 6 7 8 0 1 0 1 0 1 0 1 0 0 0 1 0 0 0 1 1 1 0 1 0 1 0 1...
  • Page 47 Appendix ( S w 1 ) (Sw1) Switch number S w i t c h n u m b e r (Bit) (Bit) 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 0 0 1 1 0 0 1 1 0 1 1 1 0 1 1 1 1 0 1 1 0 0 1 1 1 1 1 1 0 1 1 1...

  • Page 48: Caution

    Warnings 11. Installation 11. 1 Caution 11. 3 Water Proof Outdoor PTZ has well waterproof , moisture-proof, Please refer to user manual before installation. dust proof performance, has achieved the Ip66 intern- ： C Power D 1 , for actual needs, please refer to ational standard.

  • Page 49: Structure Introduction

    Warnings Ø Stuff Preparation Ø Set switches Please select the type of cables based on transmitting distance: There is seperated switches structure on the base " " board of vehicle PTZ. Pls check the switches setting ● Minimum video coaxial cable requirements: in the manual appendix to set PTZ baud rate, protocol Ω...

  • Page 50: Basic Size Graph

    Installation Introduction 11. 6 Basic Size graph Ф 173 Picture 11.6-1 11. 7 Installation 11.7. 1 Drill installation hole As picture 11.7.1-1, according to the size of the base board, drill holes on the top board of the vehicle. Pls pay attention to the direction.

  • Page 51: Switches Setting

    Installation Introduction 11. 7. 2 Installation between PTZ and top board Before lock the bolt, pls make sure the PTZ baud rate, protocol and ID address had been set. As picture 11.7.2-1, use M6 bolt to lock PTZ onto the top board of vehicle. Top base board Front of the vehicle M6*25boit (4pcs)

  • Page 52: Cabling Connection

    Installation Introduction 11. 9 Cabling Connection 1.Alarm terminal 1 2. Video connector 3. Alarm terminal 2 4.RS485 connector 5. Power connector Black Picture 11.9 ： Alarm terminal 1 ： RS485 terminal： Alarm terminal 2 Power supply terminal： RED: ALM1 AQUA: NC2 YELLOW: RS485- RED: DC12V+ PINK: ALM2...

  • Page 53: Maintance Service Terms

    Maintenance 12. Maintenance service terms 1. Range of warranty The product will be maintained free for one year. ● The product will be obtained the free maintenance service if the same malfunction appears again within three ● months. Malfunction of products caused by force majeure (such as war, earthquake, lightning strike and so on ), abuse, ●...
