Summary of Contents for Domenor D8406

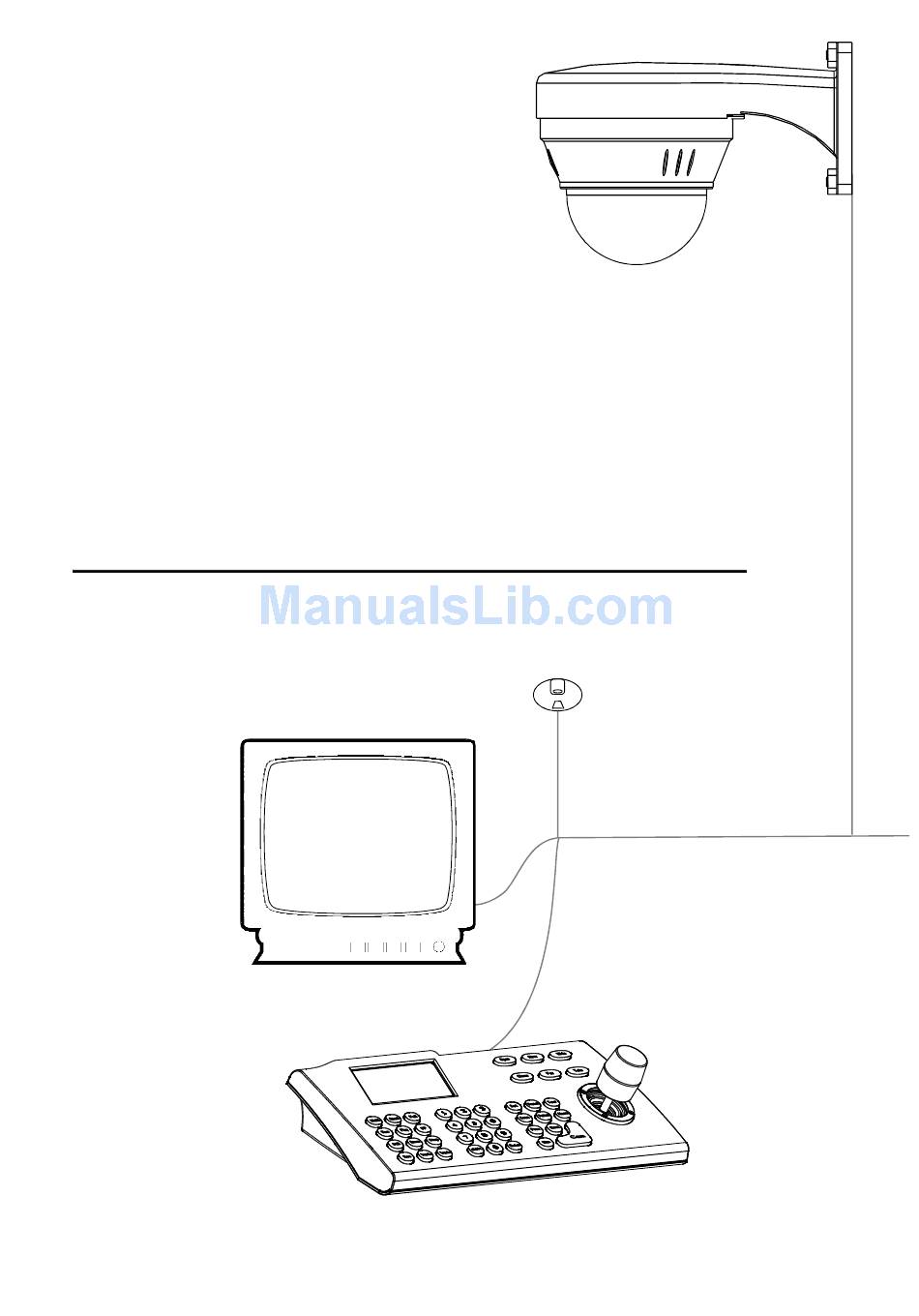

- Page 1 Mini High Speed Dome Installation and Operation Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENT 1.Precaution----------------------- --------------- -----------------------------------------------1 Installation instruction ---------------------------------------------------------------- ---------------------------------------------------------------------------- 1. D8406 --------------------------------------------------------- 1.1 Dimension of product --------------------------------------------------------- 1.2 Installation of product -------------------------------------------------------------------------- 2. D8407 --------------------------------------------------------- 2.1 Dimension of product -------------------------------------------------------- 2.2 Installation of product 3.Performance & Feature--------------------------------- ------- ------------------------------ 5 3.1 Dome parameter---------------... - Page 3 7.Function setting-------------- -------------------------- ----------- ------- ---------------------26 7.1 Preset setting------------- ------------------- ------- ------- ------ ---------------------------26 7.2 Scan------------- --------------- ------- ------- ------ ------- -----------------------------------27 7.3 Pattern------------------------------------------------------- ----------------------------------28 7.4. Tour------------------------------------------------------- ------------------------------------29 7.5 Zone setting------------------------------------------------------- ----------------------------30 ------------------------------------------------------- ---------------------31 Tour Time Setting 8. Privacy zone masking---------------------------------------------------------------------------32 9.
-
Page 4: Precaution
Precaution 、 1 Precaution Please read the manual and product label carefully before installing the speed dome. Ø 1.The product installation and use of the product must comply with the relevant laws of the country. Ø Electrical safety 1.Strictly conform to country and local electrical safety standard when using or installing the product. 2.Using factory's power adapter. -
Page 5: Installation Instruction
Installation instruction 2. Installation of product 1.2 Item no corresponding sheet 、 1 Get the products out from the packages. As Picture 2.1-1 Mount Picture Plac e Ceiling Indoor only Indoor and Wall outdoor 1.3 details of relevant parts Picture 2.1-1 1.wall bracket 2.base board 、... -
Page 6: D8407
Installation instruction 2.2 Wall mount 3. Insert three screws in the mini dome into the ① apertures on the base board(pls refer to ), then ② 1. Dimension of product turn 15 degrees in clockwise(pls refer to ). as picture below ②... - Page 7 Installation instruction 、 2 Make the wall bracket as the model on installation wall, and draw the central position of the drill hole. (As picture 2.2-2) 75．0 0 Picture2.2-4 、 5 Pls make the wall bracket aims at the M8 screw, so that the output cable will be locked in the hole of motherboard bracket, and use the M8 screw to lock the wall bracket tightly.
-
Page 8: Dome Parameter
Dome performance 3. Dome performance 3. 1 Dome parameter Setting Power supply Power supply （ ） AC24V 2400/4800/9600/19200bps Baudrate RS485 、 Pelco-D、 Pelco-P Factory Cosumption Communication Protocol ID setting 0-255 Operational Physical Decoder Built-in Pan rotation ℃ — ℃ 360° Operation temperature —... -
Page 9: Dome Performance&Feature
Dome performance 3.3 Dome performance and features This product is high-technology surveillance product with high definition and color camera, variable-speed pan/tilt and multifunction decoder. It can reduce the connection and installation process between systematic parts at a max limit, and also can improve the stability and reliability of the system. Meanwhile it is easy to install and repair, and it has the following advantages: beautiful shape, rotate lightly and neatly, little noise, simple operation and so on. -
Page 10: Function Instruction
Function instruction 4.Function in structure This passage mainly describes the main function and general principle of integrated speed dome, and does not refer to the concrete operation methods. Different system platform has different operation methods, generally we should according to the system Manufactory operation manual. Please contact dealer to get necessary information, under some conditions there are have some particular requirements and operations. -
Page 11: Motion Function
Function instruction ◆ Pattern Pattern is built-in function in the speed dome; the dome can record the tracks that are no less than 180s, when running pattern, the dome moves repeatedly according to the recorded tracks. A dome can set up to 4 pattern tours. -
Page 12: System Setting
System setting 5.System setting 5. 1 Basic operation 5.1.1 Current-carrying to dome and self-testing The dome conducts self-testing after current-carrying,and it rotates slowly until displaying pan origin that is default setting, then moving to tilt origin, the lens will be pulled far to near and near to far, when self-testing is finished, there is relevant system information displaying on the screen, as follow: S/N of the dome Soft edition... -
Page 13: Edit Dome Label
System setting 5. 2 Edit dome label MAIN MENU When using a lot of systems of the dome , in order to identify to each SYSTEM SETTING CAMERA SETTING dome, the systems support title setting. The setting ways as follow: FUNCTION SETTING WINDOW BLANKING 、... -
Page 14: Display Initial Information
System setting 5. 3 Display initial information MAIN MENU 1.The system enters into the main menu by calling 95 preset or by calling SYSTEM SETTING 9 preset twice within 3 seconds. CAMERA SETTING FUNCTION SETTING 、 【 】 2 Click the up and down button to SYSTEM SETTING , click the right WINDOW BLANKING button to enter submenu. -
Page 15: Display Setup
System setting 5. 4 Display setup MAIN MENU 1.The system enters into the main menu by calling 95 preset or by calling SYSTEM SETTING 9 preset twice within 3 seconds. CAMERA SETTING 、 【 】， Click the up and down button to SYSTEM SETTING click the right b- FUNCTION SETTING... -
Page 16: Systematic Motion Control
System setting 5. 5 Systematic motion control MAIN MENU Systematic motion controlling may control a series of motions of the SYSTEM SETTING dome, and plays an important role in controlling the image of the dome. CAMERA SETTING FUNCTION SETTING 1.The system enters into the main menu by calling 95 preset or by calling WINDOW BLANKING 9 preset twice within 3 seconds. -
Page 17: Park Action
System setting 5. 5. 3 Park action MOTION This setting allows the dome to run an appointed action after it enters AUTO FLIP vacancy for a few time (1-240minutes). If default sets as 0, it means PROPORTION PAN ON not to run this action. PARK TIME 、... -
Page 18: Clear
System setting 5. 6 Clear MAIN MENU 1.The system enters into the main menu by calling 95 preset or by calling SYSTEM SETTING 9 preset twice within 3 seconds. CAMERA SETTING FUNCTION SETTING 、 【 】， 2 Click the up and down button to SYSTEM SETTING click the WINDOW BLANKING right button... -
Page 19: Password Setting
System setting 5. 7 Password Setting MAIN MENU Password setting is the built-in function of high speed dome, By setting SYSTEM SETTING password (6 bits) it is very useful to protect the dome setting, if no password, CAMERA SETTING you can't enter the setting menu. the initial password of the dome is "000000". FUNCTION SETTING 1.The system enters into the main menu by calling 95 preset or by calling WINDOW BLANKING... -
Page 20: Date And Clock Setting
System setting 5. 8 Date and clock setting MAIN MENU 1.The system enters into the main menu by calling 95 preset or by calling SYSTEM SETTING 9 preset twice within 3 seconds. CAMERA SETTING FUNCTION SETTING WINDOW BLANKING 【 】 2.Move the cursor to System setting by clicking the up and down button, ALARMS click the right button to enter into the next menu... -
Page 21: Setup Dome Parameter
System setting 5. 9 Setup Dome parameter MAIN MENU SYSTEM SETTING 1.The system enters into the main menu by calling 95 preset or by calling CAMERA SETTING 9 preset twice within 3 seconds. FUNCTION SETTING WINDOW BLANKING 【 】 2.Click the up and down button to move the cursor to SYSTEM SETTING , ALARMS and click the right button to enter into the next menu. -
Page 22: Camera Setting
Camera setting 6. Camera setting MAIN MENU 6. 1 Zoom speed SYSTEM SETTING CAMERA SETTING 1.The system enters into the main menu by calling 95 preset or by calling FUNCTION SETTING 9 preset twice within 3 seconds. WINDOW BLANKING ALARMS 、... -
Page 23: Digital Zoom Control
Camera setting 6. 2 Digital zoom control MAIN MENU 1.The system enters into the main menu by calling 95 preset or by calling SYSTEM SETTING 9 preset twice within 3 seconds. CAMERA SETTING FUNCTION SETTING WINDOW BLANKING 、 【 】 2 Click the up and down button CAMERA SETTING , click the right ALARMS... -
Page 24: Back Light Compensation
Camera setting 6. 3 Back light compensation MAIN MENU 1.The system enters into the main menu by calling 95 preset or by calling SYSTEM SETTING 9 preset twice within 3 seconds. CAMERA SETTING FUNCTION SETTING WINDOW BLANKING 、 【 】 Click the up and down button, move the cursor to CAMERA SETTING ALARMS... -
Page 25: Slow Shutter Control
Camera setting 6. 4 Slow shutter control MAIN MENU SYSTEM SETTING 1.The system enters into the main menu by calling 95 preset or by calling CAMERA SETTING 9 preset twice within 3 seconds. FUNCTION SETTING WINDOW BLANKING 、 【 】 2 Click the up and down button , move the cursor to CAMERA SETTING ALARMS... -
Page 26: Ir Cut Filter
Camera setting 6. 5 IR cut filter MAIN MENU 、 The system enters into the main menu by calling 95 preset or by SYSTEM SETTING calling 9 preset twice within 3 seconds. CAMERA SETTING FUNCTION SETTING 、 【 】 2 Click the up and down button , move the cursor to CAMERA SETTING WINDOW BLANKING... -
Page 27: Advance Setting
Camera setting 6. 6 Advance setting MAIN MENU 、 The system enters into the main menu by calling 95 preset or by calling SYSTEM SETTING 9 preset twice within 3 seconds. CAMERA SETTING 、 【 】 2 Click the up and down button , move the cursor to CAMERA SETTING FUNCTION SETTING... -
Page 28: White Balance Mode
Camera setting 6. 6. 2 White balance mode MAIN MENU 【 】 、 【 】 、 System supports AUTO indoor mode INDOOR outdoor SYSTEM SETTING 【 】 、 【 】 、 【 】 、 mode OUTDOOR auto track mode single mode CAMERA SETTING 【... -
Page 29: Function Setting
Function instruction 7. Function setting MAIN MENU 7. 1 Preset setting SYSTEM SETTING CAMERA SETTING 1.The system enters into the main menu by calling 95 preset or by calling FUNCTION SETTING 9 preset twice within 3 seconds. according to the order of the left picture, WINDOW BLANKING “... -
Page 30: Scan
Function instruction 7. 2 Scan MAIN MENU Scan is that pre-set two points , then the camera repeatedly scan SYSTEM SETTING between the two points at a stable speed, the same magnification and CAMERA SETTING pan . A dome only has one scan tour. FUNCTION SETTING 1.The system enters into the main menu by calling 95 preset or by calling WINDOW BLANKING... -
Page 31: Pattern
Function instruction 7. 3 Pattern MAIN MENU Pattern is built-in function in camera; the speed dome can record SYSTEM SETTING tracks that are no less than 180s. (A series of pan/tilt controlling and CAMERA SETTING lens controlling command). A dome may set up to 4 pattern tours. FUNCTION SETTING 1.The system enters into the main menu by calling 95 preset or by calling WINDOW BLANKING... -
Page 32: Tour
Function instruction 7. 4 Tour MAIN MENU Tour is the built-in function in the speed dome, it will arrange the presets into the queue of auto-tour, and can set how long it will park SYSTEM SETTING at preset. Operate auto-tour is a process of incessantly transfer each CAMERA SETTING preset. -
Page 33: Zone Setting
Function instruction 7. 5 Zone setting MAIN MENU A dome may be set up to 8 zones; the regional scene can't be SYSTEM SETTING 【 overlapped. User will set label for each zone. When setting ZONE CAMERA SETTING 】 LABEL as ON, the dome will display zone label as it runs some zone. -
Page 34: Tour Time Setting
Function instruction 7. 6 Tour Time Setting MAIN MENU SYSTEM SETTING 1.The system enters into the main menu by calling 95 preset or by calling CAMERA SETTING 9 preset twice within 3 seconds. FUNCTION SETTING WINDOW BLANKING 【 】 2.Click the up and down button, move the cursor to FUNCTION SETTING , ALARMS click the right button to call the submenu. -
Page 35: Privacy Zone Masking
Privacy zone masking 、 8 Privacy zone masking MAIN MENU Privacy function can show someone piece of regional shielding while SYSTEM SETTING protecting. For example, protect the window of bedroom or ATM of bank. A CAMERA SETTING dome can set up to 24 privacy windows.(Masking setting function is relat- FUNCTION SETTING ive with the model of camera module. -
Page 36: Alarm
Alarm Function 9. Alarm function MAIN MENU Speed dome may connect with 4 alarm input, 1 alarm output, and support SYSTEM SETTING alarm linkage. The external alarm message sends to the dome, then the dome CAMERA SETTING sends to alarm point shoot (to call preset, auto scan, auto cruise and auto pattern), FUNCTION SETTING and choose that to run alarm output or not. -
Page 37: Alarm Function
Alarm Function 9.1 ARM Setting MAIN MENU 1. Call 95 preset or call 9 preset twice within 3 seconds and then input the SYSTEM SETTING password to enter the main menu. CAMERA SETTING FUNCTION SETTING 【 】 2. Operate the joystick up and down, move the cursor to ALARMS , press WINDOW BLANKING... -
Page 38: Appendix
Appendix 10. Appendix 10. 1 Dome menu index MAIN MENU → SYSTEM SETTING → CAMERA SETTING → FUNCTION SETTING → WINDOW BLANKING EXIT CAMERA SETTING ALARMS SYSTEM SETTING FUNCTION SETTING WINDOW BLANKING → → PRESETS RESUME E D IT D O M E L AB E L Z O OM S P EE D HI G H WINDOW NUMBER 01... -
Page 39: Trouble Shooting
Appendix 10. 2 Trouble shooting Solution Trouble Possible causes Power supply is damage or Replace power consumption is not enough No action, no video after Power line is bad connection Correct power up Engineering line is malfunction Check and repair Refer to switch setting, reset the switch The dome DIP switch setting is incorrect Self-testing and... -
Page 40: Rs485Bus Basic Knowledge
Appendix 10. 4 Rs485Bus basic knowledge Ø Characteristics of Rs485 Bus As specified by Rs485 standard, Rs485 Bus is A+ B- of half-duplexed data transmission cables with 120Ω 120Ω Ω characteristic impedance as 120 . The maximum load capacity is 32unit loads(including main Picture10-4.2 controller and controller equipment) Ø... - Page 41 Appendix Ø Problems in practical connection In some circumstances user adopts a star In such circumstances the Factory recommends configuration in practical connection. The the usages of Rs485 distributor. The distributor can termination resistors must be connected to the two change the star configuration connection to the mode equipment 1# and 5# in picture 10-4.4.
-
Page 42: Maintenance Service Terms
Maintenance 11.Maintenance service terms 1.Range of warranty The product will be maintained free for one year. ● The product will be obtained the free maintenance service if the same malfunction ● appears again within three months. Malfunction of products caused by force majeure (such as war, earthquake, lightning ●... - Page 43 Mini high Speed Dome Installation and Operation Manual Version V1.10...
