INSTRUCTIONS FOR USE: SETUP

POWERING THE OCU
Flip the power switch at the base of the controller from the
Off to On position. The Screen should light up indicating
the unit is ready to use. If the robot is powered on, video
from the robot should appear. Otherwise, the screen will
display static.

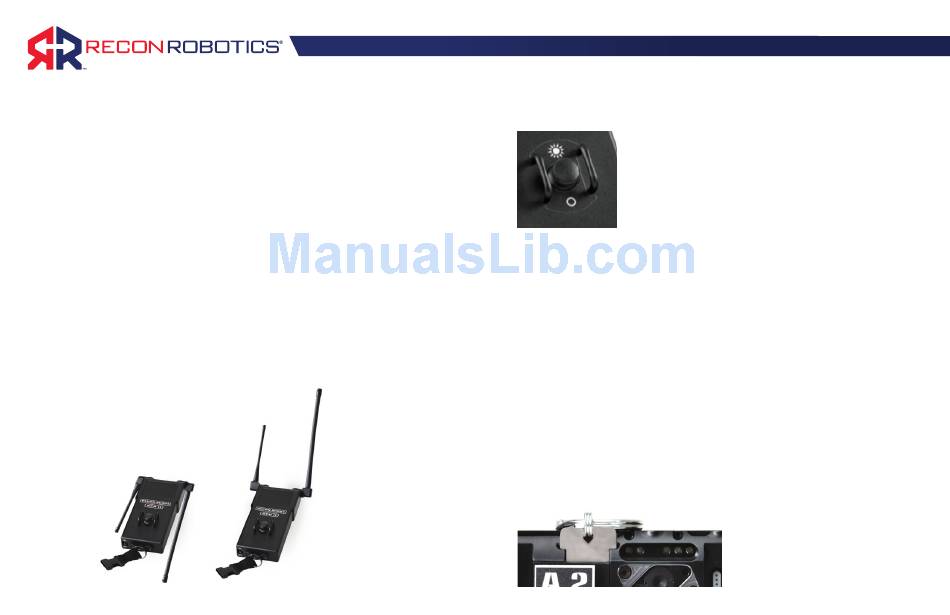

Rotate antennas from the stored position (left) to an
upright position (right) as shown below. The operator
may rotate the antennas up or down as needed during
use to receive the maximum range performance from
the robot system while maintaining a comfortable view
of the OCU screen.
12
NOTE: Modification
of the antenna
system will void
your warranty and
applicable licenses
and may violate your
FCC authorization to
operate this product.
NOTE: Some OCUs have an optional
dimming feature indicated with the presence
of a sticker as shown (right). When this
feature is enabled, when powered on, the
OCU will have as dim a screen as possible
and may appear to be off. To change the
brightness, press down and hold the joystick
until a click is heard, then to increase the
brightness move the joystick upward, and
to decrease brightness move the joystick
downward. Release the joystick to resume
normal command operation.
POWERING THE ROBOT
To activate the robot, pull the activation plate. Reinserting
the plate will turn the robot off. You will hear and feel
a click when the activation plate is fully seated with the
"shoulder" of the plate making contact with the housing
as shown below.
NOTE: When not in use,
always ensure the OCU is
switched off and the robot
activation plate is inserted.
