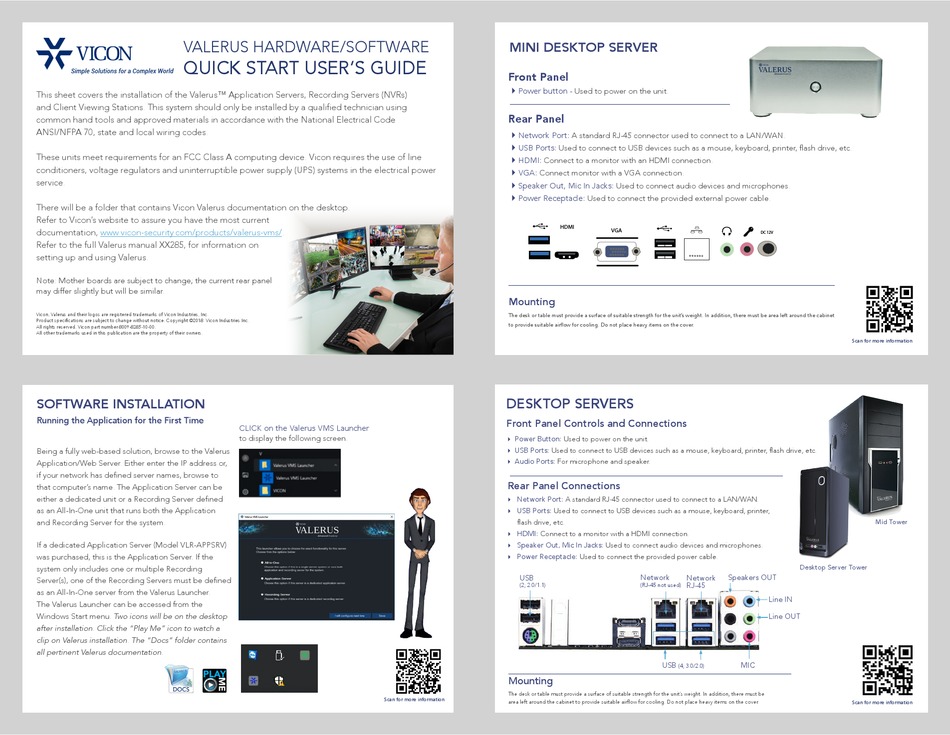

Vicon VALERUS SERIES Quick Start User Manual

VALERUS HARDWARE/SOFTWARE
QUICK START USER'S GUIDE
This sheet covers the installation of the Valerus™ Application Servers, Recording Servers (NVRs)
and Client Viewing Stations. This system should only be installed by a qualified technician using
common hand tools and approved materials in accordance with the National Electrical Code
ANSI/NFPA 70, state and local wiring codes.
These units meet requirements for an FCC Class A computing device. Vicon requires the use of line
conditioners, voltage regulators and uninterruptible power supply (UPS) systems in the electrical power
service.
There will be a folder that contains Vicon Valerus documentation on the desktop.
Refer to Vicon's website to assure you have the most current
documentation, www.vicon-security.com/products/valerus-vms/.
Refer to the full Valerus manual XX285, for information on
setting up and using Valerus.
Note: Mother boards are subject to change; the current rear panel
may differ slightly but will be similar.
Vicon, Valerus and their logos are registered trademarks of Vicon Industries, Inc.
Product specifications are subject to change without notice. Copyright ©2018 Vicon Industries Inc.
All rights reserved. Vicon part number 8009-8285-10-00.
All other trademarks used in this publication are the property of their owners.

SOFTWARE INSTALLATION

Running the Application for the First Time
Being a fully web-based solution, browse to the Valerus
Application/Web Server. Either enter the IP address or,
if your network has defined server names, browse to
that computer's name. The Application Server can be
either a dedicated unit or a Recording Server defined
as an All-In-One unit that runs both the Application
and Recording Server for the system.
If a dedicated Application Server (Model VLR-APPSRV)
was purchased, this is the Application Server. If the
system only includes one or multiple Recording
Server(s), one of the Recording Servers must be defined
as an All-In-One server from the Valerus Launcher.
The Valerus Launcher can be accessed from the
Windows Start menu. Two icons will be on the desktop
after installation. Click the "Play Me" icon to watch a
clip on Valerus installation. The "Docs" folder contains
all pertinent Valerus documentation.
CLICK on the Valerus VMS Launcher
to display the following screen.
Scan for more information
MINI DESKTOP SERVER

Front Panel

Power button -
 Used to power on the unit.
Rear Panel
Network Port:

A standard RJ-45 connector used to connect to a LAN/WAN.
USB Ports:
 Used to connect to USB devices such as a mouse, keyboard, printer, flash drive, etc.
HDMI:

Connect to a monitor with an HDMI connection.
VGA:
 Connect monitor with a VGA connection.
S peaker Out, Mic In Jacks:
 Used to connect audio devices and microphones.
Power Receptacle:

Used to connect the provided external power cable.
HDMI
VGA
Mounting
The desk or table must provide a surface of suitable strength for the unit's weight. In addition, there must be area left around the cabinet
to provide suitable airflow for cooling. Do not place heavy items on the cover.
DESKTOP SERVERS
Front Panel Controls and Connections
 Power Button:
Used to power on the unit.
 USB Ports:
Used to connect to USB devices such as a mouse, keyboard, printer, flash drive, etc.
 Audio Ports:
For microphone and speaker.
Rear Panel Connections
 Network Port:
A standard RJ-45 connector used to connect to a LAN/WAN.
 USB Ports:
Used to connect to USB devices such as a mouse, keyboard, printer,
flash drive, etc.
 HDMI:
Connect to a monitor with a HDMI connection.
 Speaker Out, Mic In Jacks:
Used to connect audio devices and microphones.
 Power Receptacle:
Used to connect the provided power cable.
Network
USB
(2; 2.0/1.1) (RJ-45 not used)
USB
(4; 3.0/2.0)
Mounting
The desk or table must provide a surface of suitable strength for the unit's weight. In addition, there must be
area left around the cabinet to provide suitable airflow for cooling. Do not place heavy items on the cover.
DC 12V
Scan for more information
Desktop Server Tower
Network Speakers OUT
RJ-45
Line IN
Line OUT
MIC
Scan for more information
Mid Tower
