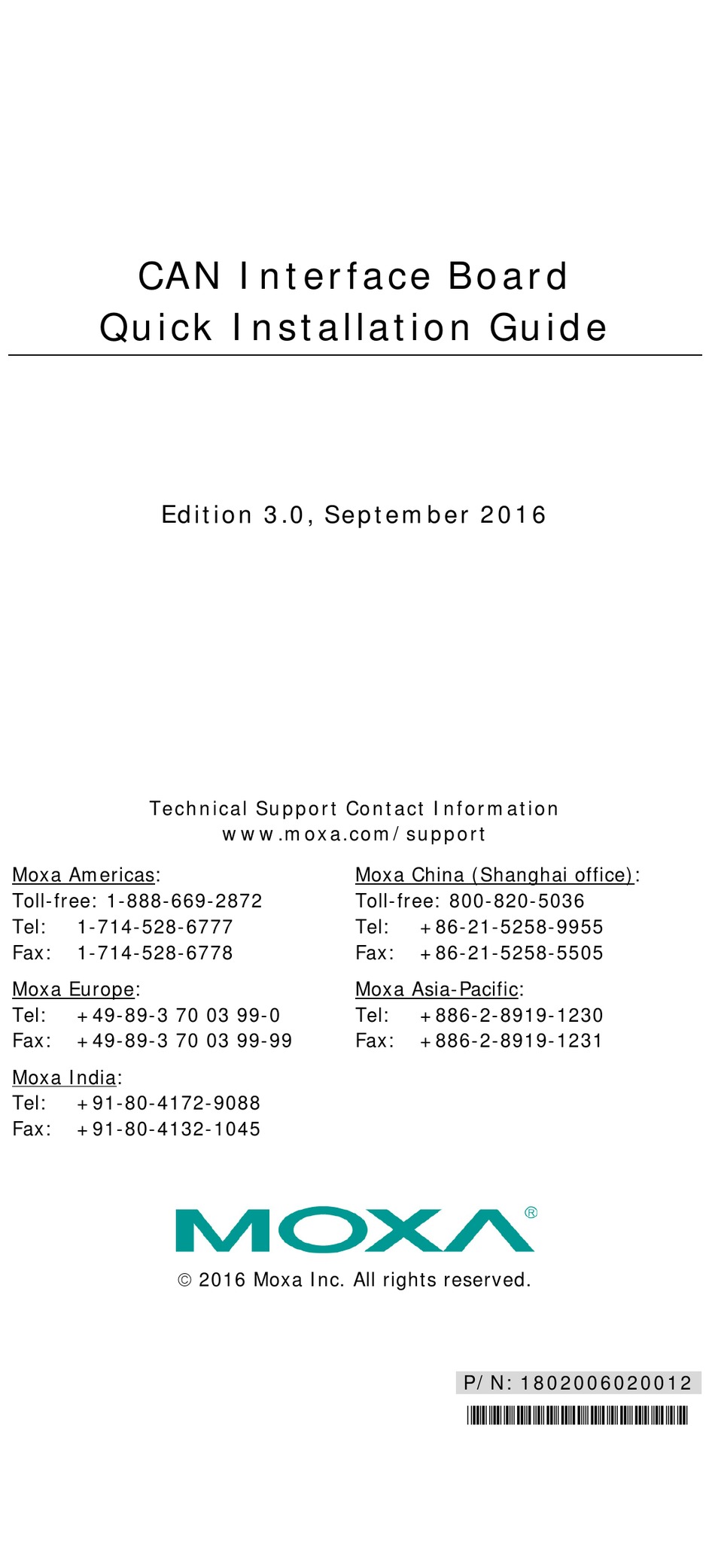

CAN Interface Board
Quick Installation Guide
Moxa Americas:
Toll-free: 1-888-669-2872
Tel:
1-714-528-6777
Fax:
1-714-528-6778
Moxa Europe:
Tel:
+49-89-3 70 03 99-0
Fax:
+49-89-3 70 03 99-99
Moxa India:
Tel:
+91-80-4172-9088
Fax:
+91-80-4132-1045
Edition 3.0, September 2016
Technical Support Contact Information
www.moxa.com/support
2016 Moxa Inc. All rights reserved.
Moxa China (Shanghai office):
Toll-free: 800-820-5036
Tel:
+86-21-5258-9955
Fax:
+86-21-5258-5505
Moxa Asia-Pacific:
Tel:
+886-2-8919-1230
Fax:
+886-2-8919-1231
P/N: 1802006020012
*1802006020012*
Advertisement
Table of Contents
Related Manuals for Moxa Technologies CP-602U-I-T
Summary of Contents for Moxa Technologies CP-602U-I-T
-
Page 1: Quick Installation Guide
CAN Interface Board Quick Installation Guide Edition 3.0, September 2016 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel: +49-89-3 70 03 99-0 Tel: +886-2-8919-1230 Fax:... -
Page 2: Package Checklist

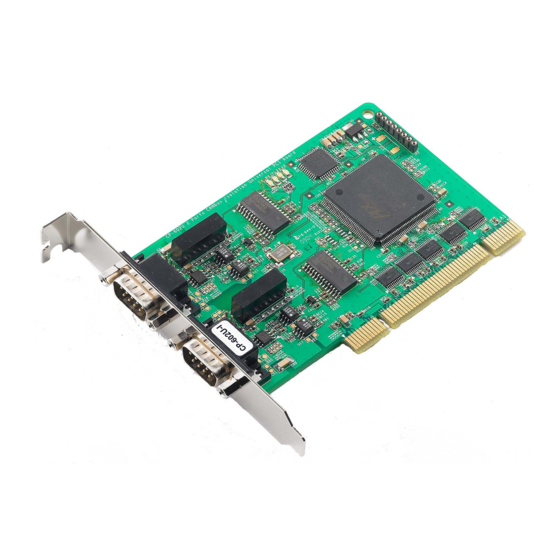

The CAN interface board series includes the following models: CP-602U-I: 2-port CAN interface Universal PCI board with isolation protection, 0 to 55°C operating temperature. CP-602U-I-T: 2-port CAN interface Universal PCI board with isolation protection, -40 to 85°C operating temperature. CP-602E-I: 2-port CAN interface PCI Express board with isolation protection, 0 to 55°C operating temperature. -
Page 3: Initial Driver Installation
Software Installation Procedure In this section, basic installation procedures are explained using Windows XP installation to illustrate. Initial Driver Installation Step 1: Run driv_win2k_can_x.x_build_ yymmddhh.exe, located on the Documentation and Software CD-ROM. Click Next to begin installing the driver. (*Note: x.x = version, yy = year, mm = month, dd = day, hh = hour) Step 2: Click Next to install the driver in the indicated folder. -
Page 4: Specifications
Installing the Driver for the CAN controller After the driver for the CAN interface board has been installed, Windows will automatically detect the new CAN controller. Step 1: The Found New Hardware Wizard window will open to help you install the driver. This window will offer to connect to the Windows update site to search for a driver. -
Page 5: Operating Temperature
Operating Temperature Standard Models 0 to 55° C (32 to 131° F) Wide Temp.Models -40 to 85° C (-40 to 185° F) Storage Temperature -40 to 85° C (-40 to 185° F) Regulatory Approvals EN61000-3-3, IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-8, IEC61000-4-11, FCC Part 15 Class B Power Requirements...
