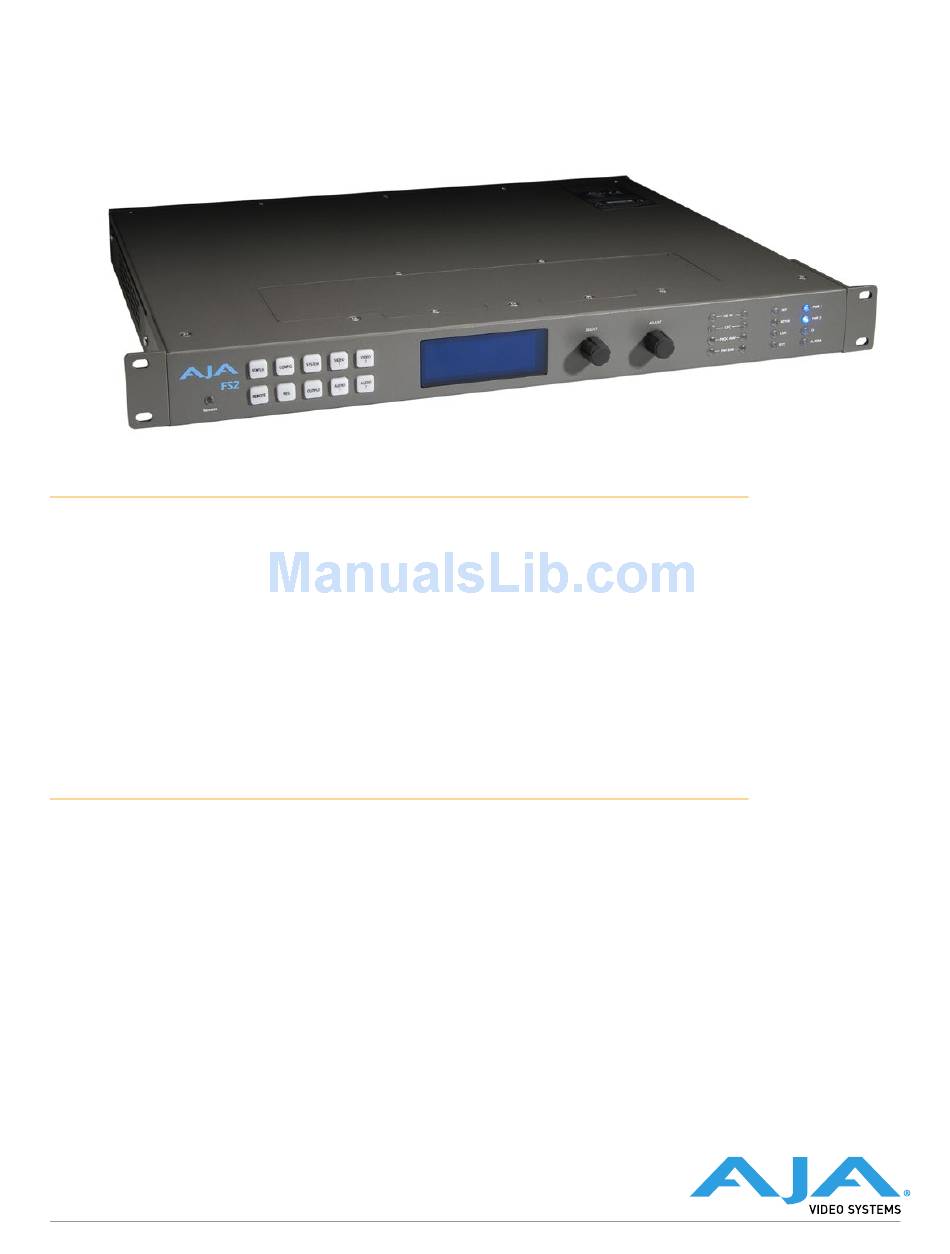

Introduction
This Quick Start Guide provides a basic overview of FS2 system connections and
configuration. The FS2 can be extremely simple to use, because of its ability
to detect incoming signal formats and automatically apply the correct video
processing for the selected output format. However, the FS2 is also extremely
powerful and can be flexibly configured to perform a wide variety of tasks.
This Quick Start Guide is designed to help you get your FS2 up and running for
the first time, and confirm it is operating properly. It also provides step-by-step
instructions that demonstrate a FS2 signal processing example.
For additional information, please see the FS2 Installation and Operation Guide
available on the AJA website.
Installation Summary
1. Unpack the shipping box, inspect and inventory the contents, and read the
late-breaking news sheet, if any.
2. Install any optional SFP I/O modules by sliding them into the SFP cages in
the back. Use only AJA approved modules.
NOTE: The
3. Mount the physical chassis: front rack, rear rack, or deskmount—1 RU x 17.5
inches (44.45 cm) x 16 inches (40.65 cm). Do not block air flow through the
side vents.
4. Make signal I/O connections to the FS2 back panel as shown in
Published June 26, 2017
FS2 Quick Start Guide v2.1
Quick Start Guide
"Stand Alone Tests" on page 2
bench to test system operation before physically installing the unit.
FS2
can be performed with the FS2 sitting on a
1
Figure
1.
www.aja.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AJA FS2
Summary of Contents for AJA FS2
-
Page 1: Quick Start Guide
This Quick Start Guide is designed to help you get your FS2 up and running for the first time, and confirm it is operating properly. It also provides step-by-step instructions that demonstrate a FS2 signal processing example. -
Page 2: Stand Alone Tests
The stand alone tests can be performed without a computer, using the FS2 front panel controls and rear connections. The following procedures assume the FS2 is at factory defaults (taken from a newly opened box). If not set to defaults, the FS2 may behave differently. - Page 3 Procedure 1. Connect both FS2 power cords to mains AC and allow time for the unit to boot up. Observe the front panel LEDs. • The REF LED will light red, indicating an alarm condition. By default the FS2 is configured to operate genlocked to an external reference signal.
- Page 4 NOTE: In the following procedures, where the terms select and adjust are used, turn the front panel SELECT and ADJUST knobs. Setup • Connect the FS2 SDI 1 output BNC connector to an SDI video display with a BNC cable. • Connect the FS2 AES/EBU output DB25 connector to an AES audio monitor using a standard TASCAM pinout cable (customer supplied).
-
Page 5: Web Browser Menu Summary
Enter. You should now see the FS2’s browser Status screen. If the FS2 cannot get an address from the network DHCP server, the FS2 will automatically use a preset factory static IP address of 192.168.0.2. You can access the FS2 using the default static address as follows: 1. -
Page 6: Sidebar Video
FS2. To see the equivalent front panel display parameter number, hover the cursor over a setting. Figure 3. FS2 Web Interface, Main Status Screen FS2 Status and Menu Display Area System info, and FS2 Systems on the network... - Page 7 • Select 13.0 Custom Size/Pos, and adjust to Off. 2. Press the Video 2 button. • Select 1 Video 2 Input and adjust to SDI2. • Select 2 Output Format and adjust to 1080i59.94. Figure 4. Sidebar Video Result FS2 Quick Start Guide v2.1 www.aja.com...
