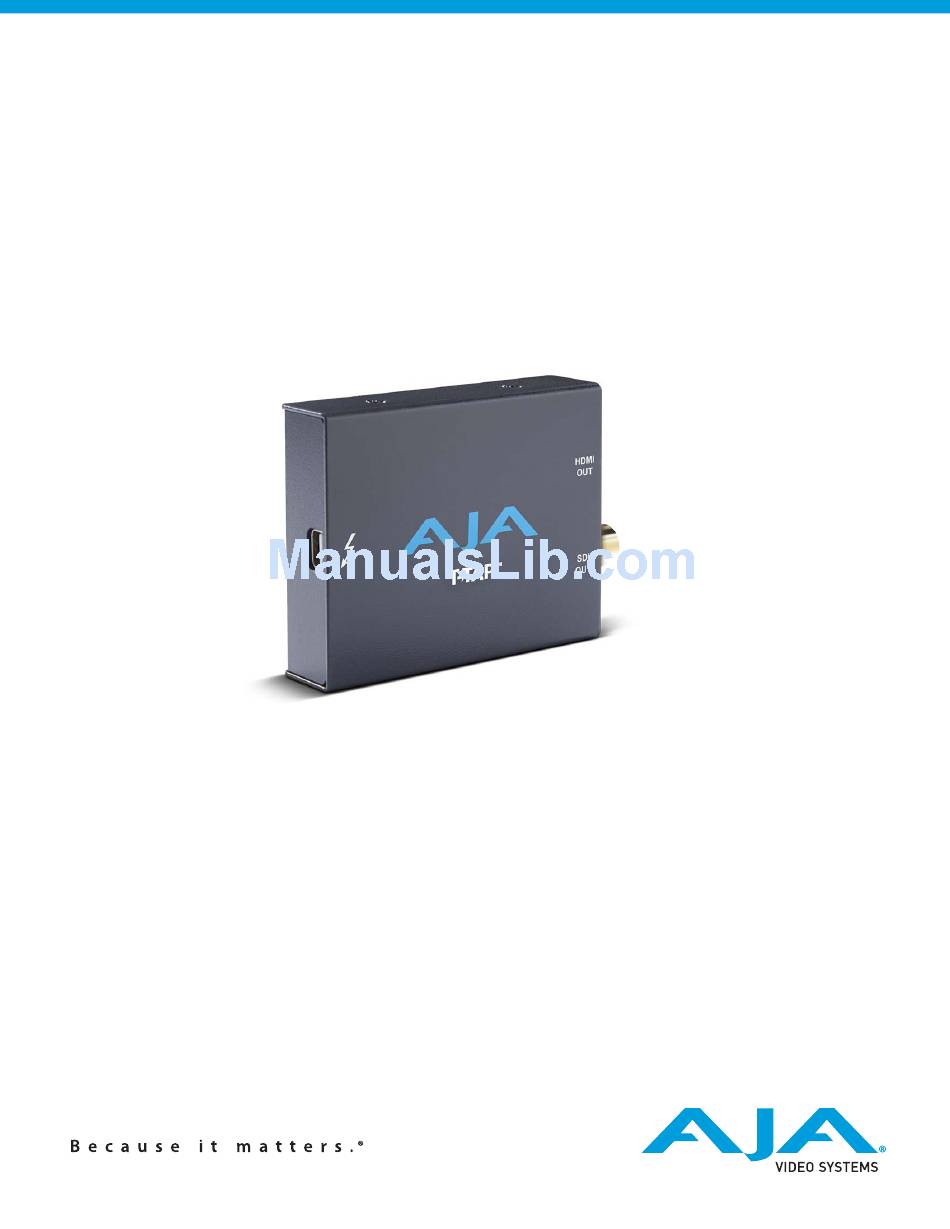

- Page 1 T-TAP Thunderbolt to SDI and HDMI Installation & Operation Guide Version 12.5 Published: September 20, 2016...
-
Page 2: Table Of Contents
Chapter 3: Operation ......... .12 Using T-TAP with Professional Video /Audio Software ......12 AJA Control Panel Overview . - Page 3 Index............33 T-TAP v12.5...
-
Page 4: Notices
AJA® and Because it matters.® are registered trademarks of AJA Video Systems, Inc. for use with most AJA products. AJA™ is a trademark of AJA Video Systems, Inc. for use with recorder, router, software and camera products. Because it matters.™ is a trademark of AJA Video Systems, Inc. for use with camera products. -
Page 5: Chapter 1: Introduction
• Rugged compact size • Power via Thunderbolt About Primary & Secondary Video Formats In T-TAP operation, the Primary Format is the media format written to disk and used in your project. NOTE: The Secondary format is for format conversion settings supported by other AJA KONA/Io products but not used by T-TAP. -
Page 6: Video Signal Formats
• A block diagram to show visually what routing and processing is being performed. NOTE: AJA also provides a Linux OS retail drivers package. Support for these drivers is based on the Linux application used and comes from the application’s vendor. -
Page 7: Aja System Test
AJA DataCalc This software application calculates data rates and storage requirements for a given Application video size, format, and frame rate. It's great for T-TAP users as a resource for configuring systems and determining storage requirements/ Cable Connections T-TAP connections are made directly to the unit’s front and rear connector channels. -
Page 8: In This Manual
Chapter 2 provides complete instructions for installing and configuring the AJA T-TAP. The user is guided through unpacking, cabling the T-TAP, installing T-TAP driver software, then getting it up and running. Chapter 3 discusses operational aspects of T-TAP, the AJA Control Panel interface, and how to work with 3rd-party software. -
Page 9: Chapter 2: Installation
Save packing materials and the shipping box. If you ever require service or move your system—use the packaging materials and box for safe shipment. After you unpack your T-TAP, go to the AJA website to download the latest software package and updated documentation. You will need to secure a Thunderbolt cable to connect to your computer. -
Page 10: Installing T-Tap Software
3. Connect an SDI cable between the T-TAP SDI output BNC and your digital VTR SDI In. The T-TAP SDI connections has embedded audio so the VTR must be configured accordingly. Figure 2. T-TAP Connectors Figure 3. Typical T-TAP Laptop System Connections... -
Page 11: Updating T-Tap Firmware
Before installing the AJA software installer package, ensure that your capture/editing application is installed as detailed in its user documentation. You cannot use T-TAP with a third-party application until the application has been installed and run at least once on your workstation. -
Page 12: Chapter 3: Operation
Chapter 3: Operation Using T-TAP with Professional Video /Audio Software After you install the T-TAP software and any AJA plug-ins to support your choice of 3rd- party software, you’re then ready to begin playing back video and audio. Once you’ve installed all the AJA software as detailed in Chapter 2, you’ll find the AJA Control Panel application in your Applications folder. -
Page 13: Aja Control Panel, Block Diagram
Block Diagram Framebuffer The framebuffer is the “engine” in T-TAP where active video operations take place using your 3rd-party applications, or even T-TAP itself. The framebuffer has a format (called the “Primary Format” and color space that it follows, as defined in the Configuration Screens T-TAP v12.5... - Page 14 The upper-right corner of the Control Panel displays the name of the application controlling the T-TAP. In some cases, applications may not always properly “let go” of the Output interface as another takes over—you’ll be able to tell by looking at the Control Panel.
-
Page 15: Control Screen
This is where you select what T-TAP will output as a default when no application has control of the board, such as when the Finder is active. Since T-TAP can be controlled by multiple software applications and its own control panel, the output can change dynamically. -
Page 16: Format Screen
Hold Last Application Directs T-TAP to hold and output the last frame of video from the last application to control T-TAP. This can be helpful when operating in an environment where you're switching back and forth between multiple application windows. -
Page 17: Hdmi Output Screen
NOTE: The AJA Control Panel software uses the abbreviation “sf” instead of “psf” when referring to “progressive segmented frame” formats. In the manual and in other literature you may see either of these acronyms used interchangeably. Visually it is easier to discern at a glance if you are working with progressively segmented frame formats (sf in the AJA Control Panel) as compared to progressive frame formats which will show only “p.”... -
Page 18: Video Setup Screen
Video Setup Screen T-TAP provides a high-quality digital video output in interlaced (i), progressive (p), or progressive segmented frame (psf ) formats. This screen shows the current settings for frame formatting of the digital video output, and allows you to re-configure it when desired. -
Page 19: Timecode Screen
When checked, this directs T-TAP to output timecode from the QuickTime timecode track. When not checked, T-TAP uses the Output Timecode Offset value plus the number of frames into the movie. Note: not all QuickTime applications use or support timecode tracks—so sometimes the QuickTime timecode is missing or not meaningful. -
Page 20: Presets Screen
Presets Screen After configuring the AJA Control Panel screens, you can then save all your settings as a snapshot for later recall—called a preset. In this way, you can organize presets for all your typical tasks, eliminating time-robbing manual re-configuration each time. To save a preset, simply go to the Presets screen and click “Save Preset”. -
Page 21: Firmware Screen
Use the Firmware Screen to access the firmware install screen. Click install to erase current firmware and load the firmware version contained in your current driver installation. Note the Installation message shown below. You will be required to power-cycle your computer and T-TAP to finish the update. Figure 8. Update Completed T-TAP v12.5... -
Page 22: Info Screen
Info Screen. This screen shows the T-TAP software files that have been installed on your system. This information may be needed if you talk to an AJA Customer Service representative to determine if files are missing or need updating T-TAP v12.5... -
Page 23: Appendix A: Specifications
Physical Power 5V Thunderbolt Bus powered; 6.5W max Safe Operating Temperature 0 to 40C (32F to 104F) Range Weight • 0.18 lbs (0.08 kg) Dimensions • Height: 2.28" (5.8cm) • Width: 2.95" (7.5cm) • Depth: 0.7" (18mm) T-TAP v12.5 www.aja.com... -
Page 24: Appendix B: Safety And Compliance
Cet appareil numérique respecte les limites de bruits radioélectriques visant les appareils numériques de classe B prescrites dans le Règlement sur le brouillage radioélectrique du ministère des Communications du Canada. Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada. T-TAP v12.5 www.aja.com... -
Page 25: European Union And European Free Trade Association (Efta)
Benutzer für entsprechende Gegenmaßnahmen verantwortlich ist. Attention! Ceci est un produit de Classe B. Dans un environnement domestique, ce produit risque de créer des interférences radioélectriques, il appartiendra alors à l?utilisateur de prendre les mesures spécifiques appropriées. T-TAP v12.5 www.aja.com... -
Page 26: Recycling Notice
This is a Class B product based on the standard of the VCCI Council (VCCI V-4/2010.04). If this equipment is used in a domestic environment, radio interference may occur, in which case, the user may be required to take corrective actions. T-TAP v12.5 www.aja.com... -
Page 27: Translated Warning And Caution Messages
¡Advertencia! No utilice este dispositivo cerca del agua y límpielo solamente con un paño seco. Aviso! Não utilize este dispositivo perto da água e limpe-o somente com um pano seco. Avviso! Non utilizzare questo dispositivo vicino all'acqua e pulirlo soltanto con un panno asciutto. T-TAP v12.5 www.aja.com... - Page 28 Aviso! Desconecte este dispositivo da tomada durante trovoadas ou quando não é utilizado durante longos períodos de tempo. Avviso! Utilizzare soltanto i collegamenti e gli accessori specificati e/o venduti dal produttore, quali il treppiedi e l'esoscheletro. T-TAP v12.5 www.aja.com...
- Page 29 Warning! Do not open the chassis. There are no user-serviceable parts inside. Opening the chassis will void the warranty unless performed by an AJA service center or licensed facility. Avertissement! Ne pas ouvrir le châssis. Aucun élément à l’intérieur du châssis ne peut être réparé...
- Page 30 Hersteller. ¡Advertencia! Utilice solamente los accesorios y conexiones especificados y/o vendidos por el fabricante. Aviso! Utilize apenas equipamentos/acessórios especificados e/ou vendidos pelo fabricante. Avviso! Utilizzare soltanto i collegamenti e gli accessori specificati e/o venduti dal produttore. T-TAP v12.5 www.aja.com...
-
Page 31: Warranty And Liability Information
Storage Modules (HDD), will be free from defects in materials and workmanship for a period of three years from the date of purchase. AJA Video warrants that the hard- disk based Storage Modules (HDD), will be free from defects in materials and workmanship for a period of one year from the date of purchase. -
Page 32: Limitation Of Liability
Limitation of Liability UNDER NO CIRCUMSTANCES SHALL AJA VIDEO BE LIABLE IN ANY WAY FOR ANY LOST, CORRUPTED OR DESTROYED DATA, FOOTAGE OR WORK, OR FOR ANY OTHER INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR FOR ANY THIRD PARTY CLAIM,... -
Page 33: Index
Index Numerics 25/50 18 output video black 15 AJA Control Panel 12 Presets 20 Audio 6 Primary Format 13 primary formats 6 progressive frame 17 Black output 15 progressive segmented frame 17 block diagram 12 psf 17 block diagram element 14... - Page 34 Video Format 16 Video Monitor 9 video path 14 Video+Key 17 VTR 10 Warnings Safety 24 T-TAP v12.5 www.aja.com...
