Summary of Contents for AJA io 4k

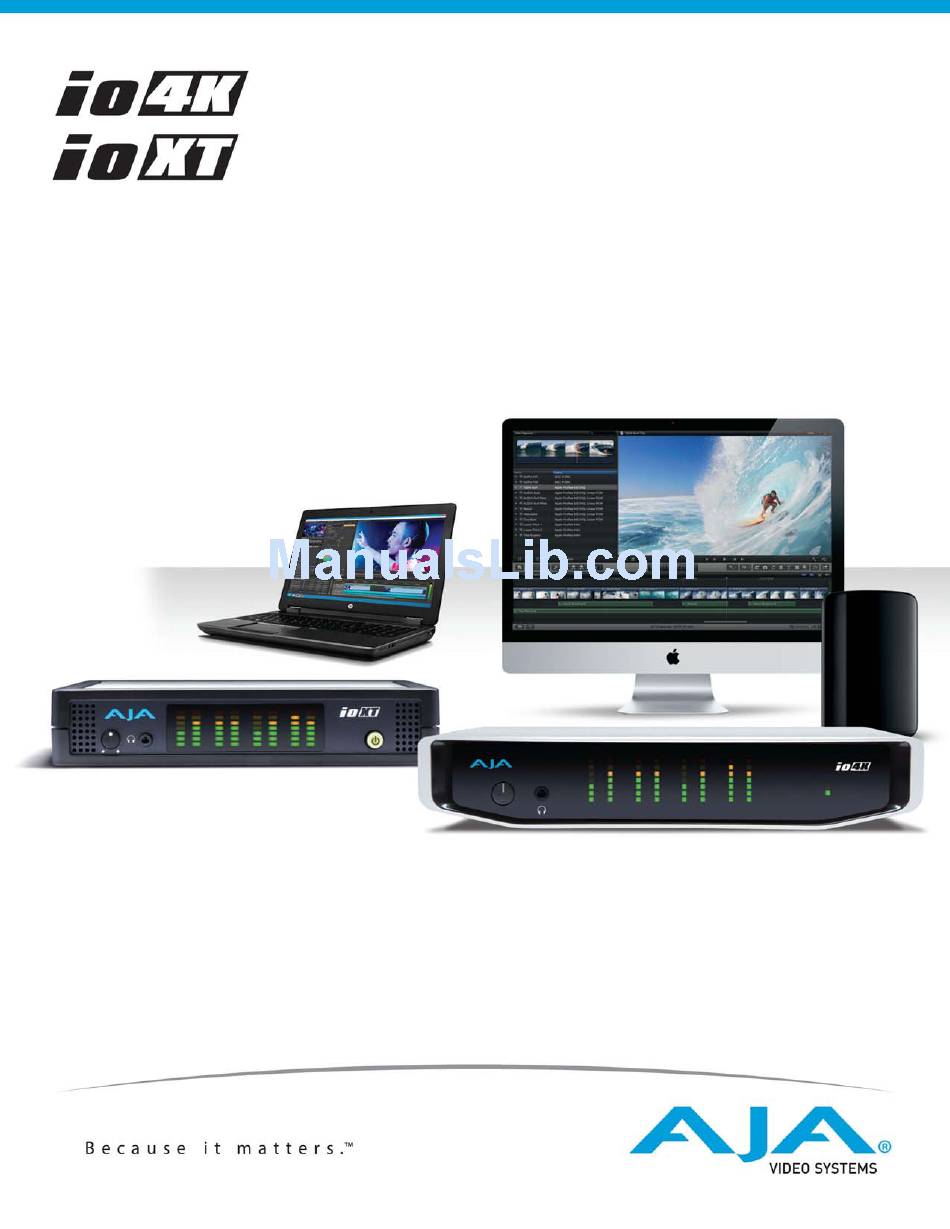

  • Page 1 Installation & Operation Guide Version 12.4 Published: June 6, 2016...

  • Page 2: Table Of Contents

    AJA Control Panel User Interface........
  • Page 3 Using Io 4K for UHD/4K ........
  • Page 4 Index............68 Io XT/4K v12.4 www.aja.com...

  • Page 5: Notices

    AJA® and Because it matters.® are registered trademarks of AJA Video Systems, Inc. for use with most AJA products. AJA™ is a trademark of AJA Video Systems, Inc. for use with recorder, router, software and camera products. Because it matters.™ is a trademark of AJA Video Systems, Inc. for use with camera products.

  • Page 6: Chapter 1: Introduction

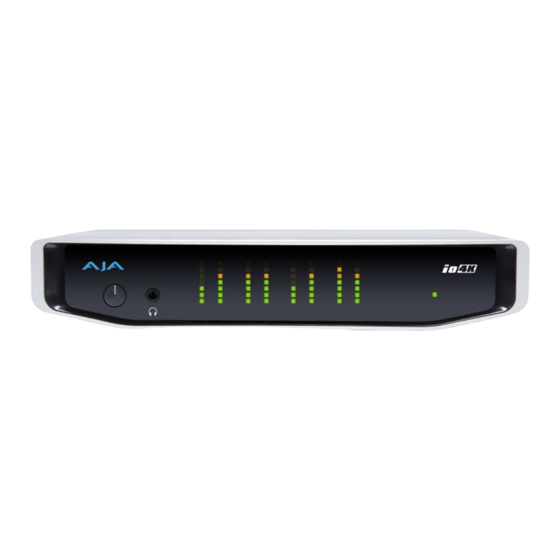

    Chapter 1: Introduction Overview AJA's Io XT and Io 4K provide professional-grade I/O for high-end computers. Io XT and Io 4K are the ideal companion for lightning-fast video capture, playback and up/down/ cross conversion. Designed for today’s workflows, Io XT/4K provides an ideal interface for video professionals to bridge the gap between their Thunderbolt-enabled computers, and other pro video devices.

  • Page 7: Broadcast-Quality Conversion

    51". Io XT/4K Audio Io XT and Io 4K provide up to 16 channels of SDI embedded audio. The front panels have a mini TRS headphone output with a lockable level control knob. For analog audio output monitoring, Io XT and 4K provide a DB25 connector with eight channels of audio to be used with industry standard Tascam-style audio breakout cables.

  • Page 8: Aja Software & Utilities

    AJA products. NOTE: 64 and 32 bit versions of Windows AJA Control Room are available. The 64 bit Windows version provides improved performance, but does not support ProRes. The 32 bit version of Windows Control Room (AJA ControlRoom 32bit.exe) supports ProRes, and is included in the AJA software package.

  • Page 9: What's In The Box

    AJA will repair or replace damaged items. If you find shipping damage, contact your AJA dealer or distributor for details on how to have your Io XT/4K repaired or replaced. Save packing materials and the shipping box. If you ever require service or move your system—use the packaging materials and box for safe shipment.

  • Page 10: Chapter 2: Installation

    Chapter 2: Installation Installation Overview The installation and set up of an Io XT and Io 4K is very simple. A functional description of each connector is provided in this chapter. The steps of installation and configuration are outlined here and each of these steps are explained in greater detail on the remaining pages of this chapter: 1.

  • Page 11: Connecting To Your Computer

    AJA support page provided above.) Cable Connections Io XT and Io 4K connections are made directly to the unit’s rear connector plate. Both have a Tascam-style DB25 connector providing 8 audio output channels. Figure 2. Io XT Connectors Figure 3.

  • Page 12: Connector Descriptions

    • Io XT has HDMI v1.3a capability at 30 bits per pixel allows full support of the latest 10- bit monitors. • Io 4K has HDMI 1.4 capability, supporting Ultra HD and 4K resolutions at up to 30 frames per second at 10 Bit 4:2:2 and 50/60 frames per second at 8-Bit 4;2:0.

  • Page 13: Io 4K Connectors

    Ultra HD (3840x2160) and 4K (4096x2160) formats. NOTE: The Io 4K can only be configured for either input or output of 4K at a time. It cannot support 4K input and output at the same time since both require four BNCs.

  • Page 14: Chapter 3: Operation

    “Configuring Quad SDI I/O” on page 41 After you install the Io XT or Io 4K software and any AJA plug-ins to support your choice of 3rd-party software, you’re ready to begin capturing and playing back video and audio.

  • Page 15: Aja Control Panel User Interface

    The AJA software installer automatically installs the Control Panel application on your computer. AJA Control Panel The AJA Control Panel user interface includes a visual block diagram of the unit’s current User Interface configuration. The current status, input and output settings, and many other details are depicted in the color-coded block diagram.

  • Page 16: Block Diagram Area

    (Figure Figure 6. Context Sensitive Menu Color Meanings All items in the AJA Control Panel block diagram are color-coded to show what is happening in realtime. This applies to both icons and text. These colors indicate: Blue Video is same format as the Primary Format (framebuffer)

  • Page 17: Input/Output Icons

    It is the format that the third-party application software will either receive from the AJA hardware, or is sending to the hardware. All icons in blue are the same as the Primary Format used by the framebuffer. Also any text descriptions in the block diagram that appear in blue indicate that something is in the primary format.

  • Page 18: Controlling Application

    It is important to understand that the computer can contain many applications that can Application use the AJA device (as you switch from window to window) and it may not always be obvious which currently controls it. Figure 9. Control Panel In Use Message (in red) In the top right corner, the Control Panel displays the name of the application controlling the unit.

  • Page 19: Shared Preferences

    • C:\Users\<USER_NAME>\AppData\Local\Aja\com.aja.devicesettings Shared Preferences An administrator can establish house standards for the AJA Control Panel by creating the user preferences file (described above) and placing it in a shared location where it will establish a standard default startup state for all users of a given computer system. These settings preempt the initial AJA default settings.

  • Page 20: Using Io Xt And Io 4K For Hd, Sd, 2K

    Using Io XT and IO 4K for HD, SD, 2K In this section, standard SD, HD, and 2K Control Panel operations are described. These are essentially the same for both Io XT and Io 4K and are illustrated using Io XT screen shots (exceptions are noted).

  • Page 21: Default Output

    XT a converter when used in conjunction with the AJA Control Panel application and your computer. No applications other than the AJA Control Panel need to be open to convert audio and video from one format to another. For example, if an SD source tape...

  • Page 22: Playback Timing

    Once a graphic file is loaded into the frame buffer it will be retained until it is overwritten by another graphic or test pattern, or when power is turned off. Graphic file names are only “remembered” in the menu as long as the AJA Control Panel application is running.
  • Page 23 51". NOTE: The AJA Control Panel software uses the abbreviation “sf” instead of “psf” when referring to “progressive segmented frame” formats. In the manual and in other literature you may see either of these acronyms used interchangeably. Visually it is easier to discern at a glance if you are working with progressively segmented frame formats (sf in the AJA Control Panel) as compared to progressive frame formats which will show only “p.”...
  • Page 24 • V Crop: will transform SD letterbox material to an anamorphic image 4K to HD Down-conversion The Io 4K provides a dedicated SDI Monitor BNC that outputs a quarter-size image of a selected UHD/4K signal format. For details, see “Using Io 4K for UHD/4K” on page Io XT/4K v12.4...
  • Page 25 Figure 12. AJA Control Panel, Formats Screen, Example shows Io XT cross-conversion Io XT/4K v12.4 www.aja.com...

  • Page 26: Input Select Screen

    Two information panes in the screen are provided: Video Input and Audio Input. Figure 13. AJA Control Panel, Inputs Screen Video Input The pulldown menu allows you to see and change what's currently selected and shows the video format that Io XT has detected (if any).

  • Page 27: Sdi Out Screen

    SDI Output 1 and 2 Configure SDI Out 1 and 2 via pulldowns: Figure 14. AJA Control Panel, SDI Output Screen • Primary - When selected, this indicates that the SDI output is set to the same format as the framebuffer. That value will be listed in blue.

  • Page 28: Hdmi Screen

    • RGB Full - When selected, sets the output to RGB full range video for the SDI output. HDMI Screen The Io XT/ 4K HDMI input and output are configured at this screen. For Io 4K UHD and 4K format setup, see “HDMI Screen in 4K Mode”...

  • Page 29: Analog Out Screen (Io Xt Only)

    This screen shows the current settings for that analog output, and allows you to re-configure it when desired. Figure 17. AJA Control Panel, Analog Out Screen Analog Output Select Primary or Secondary (any conversion applied) for the analog output; if a conversion is applied, you’ll see the conversion icon appear on the block diagram.

  • Page 30: Video Setup Screen

    This screen shows the current settings for that analog video output, and allows you to re- configure it when desired. Figure 18. AJA Control Panel, Video Setup Screen Analog Black Level Choices available for Black Level are the two Composite analog formats. Choices...

  • Page 31: Audio Setup Screen

    +24 for USA. Audio Delay Here you can set up to 6 frames (in tenths of a frame) of delay for the AJA device’s audio input and output. The AJA Control Panel delays all audio outputs—SDI, HDMI, and Analog IMPORTANT: If you use this Control Panel delay, do not use other delay settings in your applications.

  • Page 32: Conversion Screen (Mac Os Only)

    This screen offers controls that determine how the card behaves with 3rd-party (Mac OS only) applications. NOTE: This screen is present in the Mac version of AJA Control Panel only and not all applications support these functions. Figure 20. AJA Control Panel, Conversion Screen Software Conversion These parameters can affect pulldown and pause behavior.

  • Page 33: Yuv-Rgb Conversion

    • Auto DS Keyer Screen The Io XT and Io 4K have a hardware-based downstream keyer that is ideal for putting logos, “bugs” or other video material with an alpha channel on top of video being played out or printed to tape.
  • Page 34 Figure 22. AJA Control Panel, Downstream Keyer Screen Mode Downstream Keyer Off - When this pulldown menu item is selected the downstream keyer will be turned off • Frame Buffer over Matte - Places the keyed video with alpha channel currently in the Frame Buffer over a fixed color matte determined by the “Matte Color”...

  • Page 35: Lut Screen

    1920x1080. LUT Screen Users can specify their own custom LUTs by creating a LUT file and uploading it to an AJA Video Device using the LUT (lookup table) screen in the Control Panel. You can create a...

  • Page 36: Lut File Format Specification

    1025 rows with LUT data, and save the result as a “CSV” file. Timecode Screen The Timecode input: • Selects the timecode stream read for applications that use it (for example, AJA Control Room, when the timecode source is set to “Use control panel setting,” will read the selected stream) •...

  • Page 37: Timecode Input Settings

    Figure 24. AJA Control Panel, Timecode Screen Timecode Input Settings RP-188 Timecode <n> In RP-188 timecode (SMPTE 12M-gg2) there can be multiple timecode types in the data stream. Use this pull-down to select the one you wish to monitor: • RP188 LTC (Linear timecode) •...

  • Page 38: Timecode Output Settings

    Timecode Output Settings Use QuickTime Timecode This feature is for Final Cut Pro 7 (or earlier), VTR Exchange, and AJA TV only. When (Mac OS Only) checked, it directs Io XT/4K to output timecode from the QuickTime timecode track. Timecode Burn-in This pulldown selects whether the timecode value is displayed in a “burned-in”...
  • Page 39 If you want to use a saved Preset on another workstation, you can simply copy the file on removable storage and install it at the new location. The Preset file is always stored at: • ~/Library/Application Support/AJA/<device name> Presets/ [on Mac] • c:\Users\<username>\AppData\Local\AJA\Control Panel\<device name> Presets\...

  • Page 40: Firmware Screen

    Note the Installation message shown below. Figure 27. Firmware Update You will be required to power-cycle your computer and Io XT/4K to finish the update. Figure 28. Update Completed Io XT/4K v12.4 www.aja.com...

  • Page 41: Info Screen

    In 4K Mode, you can input or output four channels of video representing individual quadrants of Ultra-HD (3840x2160) and 4K (4096x2160) formats. In Quadrant Mode the Io 4K employs all four bi-directional SDI connectors for either input or output It cannot support the input and output at the same time.

  • Page 42: Output Configuration

    Output Configuration When you use the Control Panel Format screen to select a UHD or 4K format for the Io 4K output, you must also make sure the default output mode (Control screen setting) is set to “Test Pattern. ” Then the SDI connectors 1–4 will automatically configure as outputs...

  • Page 43: Input Configuration

    To configure the bi-directional SDI connectors for input, select Pass-through in the Default Output>Video Output menu (see Figure 32 on page 43). Figure 32. Io 4K SDI Input Configuration Input Select Screen In 4K mode, on the Input Select Menu, you can select sources, set input video format in 4K Mode options (YUV, RGB, etc.) and set the LTC input usage and Audio Input settings.

  • Page 44: Sdi Output Screen In 4K Mode

    • 4K Quarter – a downconversion to 2K x 1080 for 4K format or 1920 x1080 for UHD • A single Quadrant (1, 2, 3, or 4) of the 4K or UHD signal. Figure 34. HDMI Output Screen with 4K Format Figure 35. HDMI Output Format Select Menu Io XT/4K v12.4 www.aja.com...

  • Page 45: Video Setup Screen In 4K

    In 4K Mode, Io 4K supports Two Sample Interleave transport of 4K and UHD formats up to Interleave 60 fps. For frame rates up to 30 fps, Io 4K operates in two-wire mode with two channels of data per wire (see SDI 3 & SDI 4 in the figure below).
  • Page 46 With UHD and 4k, 30 fps or less, 1/4 of the data is transported in each channel for a total of 4 channels over 2 wires: • UHD consists of 2x HD per wire • 4K consists of 2x 2k. Io XT/4K v12.4 www.aja.com...
  • Page 47 Figure 38. Two Sample Interleave Mode – SDI Inputs of Frame Rates to 30 fps For High Frame Rates (above 30 up to 60 fps), Io 4K always operates in a 4-wire mode with each wire carrying 1/4 data like 4-wire quadrant mode, except the data is two-pixel samples of the entire 4K image.
  • Page 48 Figure 40. Two Sample Interleave Mode – Inputs for HFR Io XT/4K v12.4 www.aja.com...

  • Page 49: Chapter 4: Troubleshooting

    Red render bar occurs when placing The sequence setting does not match the clip a clip on a sequence. setting. Updating Software Check on the AJA Video website for software updates. For Io XT, visit: http://www.aja.com/en/products/io-xt/#support For Io 4K, visit: www.aja.com/en/products/io-4k#support Io XT/4K v12.4...

  • Page 50: Support

    If the problem is a 3rd-party software operational issue, Mac system issue, then call Apple Customer Support or the 3rd-party software manufacturer for help. If the problem is an AJA Video Io XT issue, then contact AJA Video Customer Support. Io XT/4K v12.4...

  • Page 51: Appendix A: Specifications

    • <1% Diff Phase • <1% Diff Gain • <1 ns Y/C delay inequity Audio Input Digital • 16-channel, 24-bit SMPTE-259 SDI embedded audio, 48kHz sample rate, Synchronous • 8-channel, 24-bit HDMI embedded audio, 48kHz sample rate, Synchronous Io XT/4K v12.4 www.aja.com...
  • Page 52 • 1 BNC assignable to Reference video or LTC input • Reference: • Analog Color Black (1V) or Composite Sync (2 or 4V) • Non terminating Power: • 10-20V, 18W typical, 22W max Safe Operating Temperature • 0C to 40C (32F to 104F) Range: Io XT/4K v12.4 www.aja.com...

  • Page 53: Io 4K Specifications

    7 - RX+ 3 - TX+ 8 - TX- 4 - GND 9 - GND 5 - No Connection Shell - GND Io 4K Specifications Video Formats • SD • 525i 29.97 • 625i 25 • HD • 720P 50, 59.94, 60 •...
  • Page 54 • 9-pin D-connector pinout is as follows: 1 - GND 6 - GND 2 - RX- 7 - RX+ 3 - TX+ 8 - TX- 4 - GND 9 - GND 5 - No Connection Shell - GND Io XT/4K v12.4 www.aja.com...

  • Page 55: Appendix B: Safety And Compliance

    Cet appareil numérique respecte les limites de bruits radioélectriques visant les appareils numériques de classe A prescrites dans le Règlement sur le brouillage radioélectrique du ministère des Communications du Canada. Cet appareil numérique de la Classe A est conforme à la norme NMB-003 du Canada. Io XT/4K v12.4 www.aja.com...

  • Page 56: European Union And European Free Trade Association (Efta)

    Benutzer für entsprechende Gegenmaßnahmen verantwortlich ist. Attention! Ceci est un produit de Classe A. Dans un environnement domestique, ce produit risque de créer des interférences radioélectriques, il appartiendra alors à l?utilisateur de prendre les mesures spécifiques appropriées. Io XT/4K v12.4 www.aja.com...

  • Page 57: Recycling Notice

    This is a Class A product based on the standard of the VCCI Council (VCCI V-3/2015.04). If this equipment is used in a domestic environment, radio interference may occur, in which case, the user may be required to take corrective actions. Io XT/4K v12.4 www.aja.com...

  • Page 58: Chinese Compliance Statement

    Aviso! Leia e siga todos os avisos e instruções assinalados no produto ou incluídos na documentação. Avviso! Leggere e seguire tutti gli avvisi e le istruzioni presenti sul prodotto o inclusi nella documentazione. Io XT/4K v12.4 www.aja.com...
  • Page 59 Aviso! Não instale perto de nenhuma fonte de calor tal como radiadores, saídas de calor, fogões ou outros aparelhos (incluindo amplificadores) que produzam calor. Avviso! Non installare vicino a fonti di calore come termosifoni, diffusori di aria calda, stufe o altri apparecchi (amplificatori compresi) che emettono calore. Io XT/4K v12.4 www.aja.com...
  • Page 60 ¡Advertencia! Cuando mueva la unidad desenchufe de la red eléctrica el/los cable(s) de la fuente de alimentación CA tipo brick. Advertência! Remova os cabos CA de alimentação brick da rede elétrica ao mover a unidade. Avvertenza! Scollegare il cavo dell’alimentatore quando si sposta l’unità. Io XT/4K v12.4 www.aja.com...
  • Page 61 Hersteller. ¡Advertencia! Utilice solamente los accesorios y conexiones especificados y/o vendidos por el fabricante. Aviso! Utilize apenas equipamentos/acessórios especificados e/ou vendidos pelo fabricante. Avviso! Utilizzare soltanto i collegamenti e gli accessori specificati e/o venduti dal produttore. Io XT/4K v12.4 www.aja.com...
  • Page 62 Lo spinotto largo o il terzo polo sono forniti per motivi di sicurezza. Se la spina fornita non si inserisce nella presa di corrente, contattare un elettricista per la sostituzione della presa obsoleta. Io XT/4K v12.4 www.aja.com...
  • Page 63 Avviso! Proteggere il cavo di alimentazione in modo che nessuno ci cammini sopra e che non venga schiacciato soprattutto in corrispondenza delle spine e del punto in cui esce dal dispositivo. Io XT/4K v12.4 www.aja.com...
  • Page 64 Warning! Do not open the chassis. There are no user-serviceable parts inside. Opening the chassis will void the warranty unless performed by an AJA service center or licensed facility. Avertissement! Ne pas ouvrir le châssis. Aucun élément à l’intérieur du châssis ne peut être réparé...
  • Page 65 Cuidado! Para o desempenho correto, sempre ligue o Io XT antes de ligar seu computador e desligue o computador antes de desligar o Io XT. Attenzione! Per prestazioni ottimali, alimentare sempre XT prima di avviare il computer e spegnere il computer prima di spegnere XT. Io XT/4K v12.4 www.aja.com...

  • Page 66: Warranty And Liability Information

    Storage Modules (HDD), will be free from defects in materials and workmanship for a period of three years from the date of purchase. AJA Video warrants that the hard- disk based Storage Modules (HDD), will be free from defects in materials and workmanship for a period of one year from the date of purchase.

  • Page 67: Limitation Of Liability

    Limitation of Liability UNDER NO CIRCUMSTANCES SHALL AJA VIDEO BE LIABLE IN ANY WAY FOR ANY LOST, CORRUPTED OR DESTROYED DATA, FOOTAGE OR WORK, OR FOR ANY OTHER INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR FOR ANY THIRD PARTY CLAIM,...
  • Page 68 H Crop 24 Connector Descriptions 12 HDMI audio output 29 Connectors 12 HDMI output 28 Control Panel, configuration screens 15 Hold Last Application 22 Control Panel, Tabbed Screens 19 Horizontal reference 22 Control Screen 33 horizontally stretched 24 Io XT/4K v12.4 www.aja.com...
  • Page 69 23 Installation Overview 10 Installing Io Software 13 SD letterbox material to an anamorphic image Io 4K, Block Diagram 16 Io XT/4K Formats 23 SD to SD aspect ratio conversion 24 IRE 30 SD to SD Conversion 24...
  • Page 70 22 video path 17 Video+Key 27 VTR RS-422 Control Port 12 VTRs, 12 Y/C output 29 Y/R-Y/B-Y 13 Yellow 16, 17 YPbPr 13 YUV 13 YUV-RGB Conversion 33 Zoom 24 Zoom Letterbox 24 Zoom Wide 24 Io XT/4K v12.4 www.aja.com...
