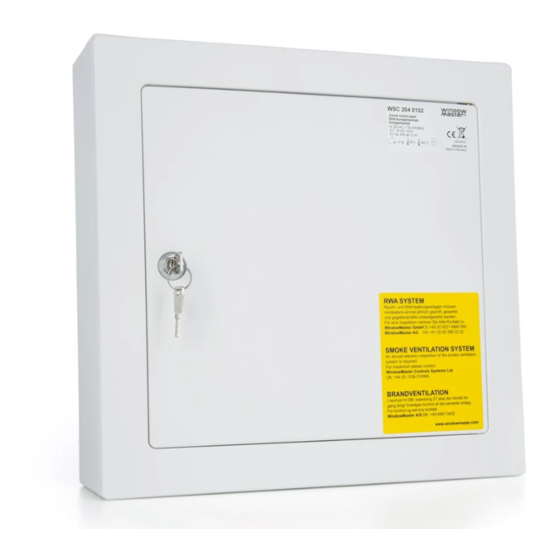

Smoke control panel
Operating manual / Technical information
WSC 204 0102 – WSC 204BZ 0102
DK
+45 4567 0300
UK & IE
+44 (0) 1536 510990
DE
+49 (0) 5221 6940 -500 Vertrieb / -650 Technik
CH
+41 (0) 62 289 22 22
Other markets
+45 4567 0300
WSC 204 0102 / WSC 204MH 0102 / WSC 204BZ 0102 / WSC 204KP 0102 install 1606-UK
plastic housing
plastic housing with integrated break glass unit
WSC 204MH 0102 steel housing
info.dk@windowmaster.com
info@windowmaster.co.uk
info@windowmaster.de
info@windowmaster.ch
info@windowmaster.com
©WindowMaster 2011, 2016
®WindowMaster is a registered trademark used under licence by WindowMaster Group
WSC 204KP 0102
www.windowmaster.com
M itglied im
Fac hk rei s
el ek trom otori s c h
betri ebene
Rauc h- und Wärm e-
abz ugs anl agen
