STR-DK5

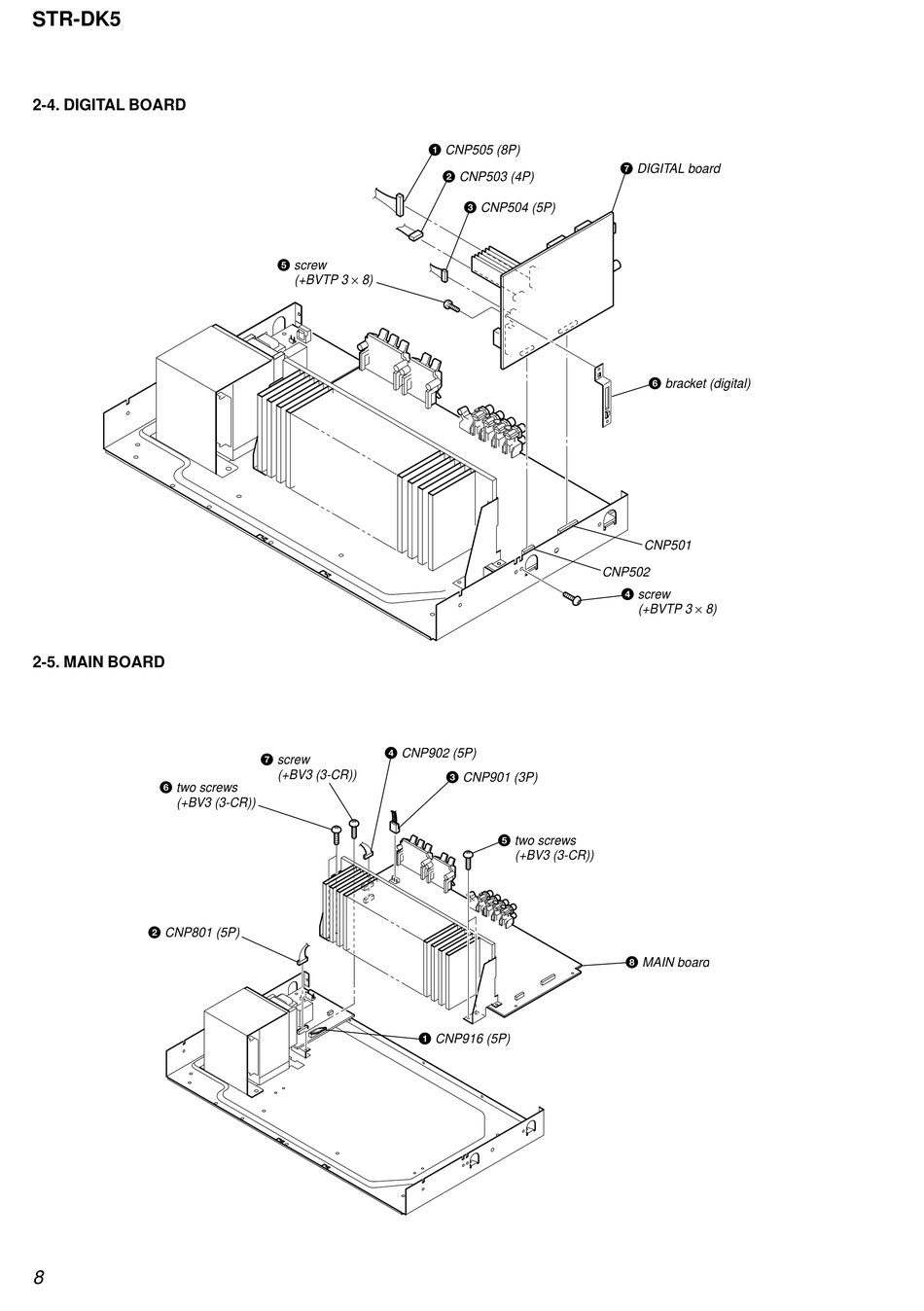

2-4. DIGITAL BOARD
2-5. MAIN BOARD
6 two screws
(+BV3 (3-CR))
2 CNP801 (5P)
8
1 CNP505 (8P)
5 screw
(+BVTP 3 × 8)
4 CNP902 (5P)
7 screw
(+BV3 (3-CR))
1 CNP916 (5P)
2 CNP503 (4P)
3 CNP504 (5P)
CNP502
3 CNP901 (3P)
5 two screws
(+BV3 (3-CR))
7 DIGITAL board
6 bracket (digital)
CNP501
4 screw
(+BVTP 3 × 8)
8 MAIN board
