QUICK SETUP GUIDE

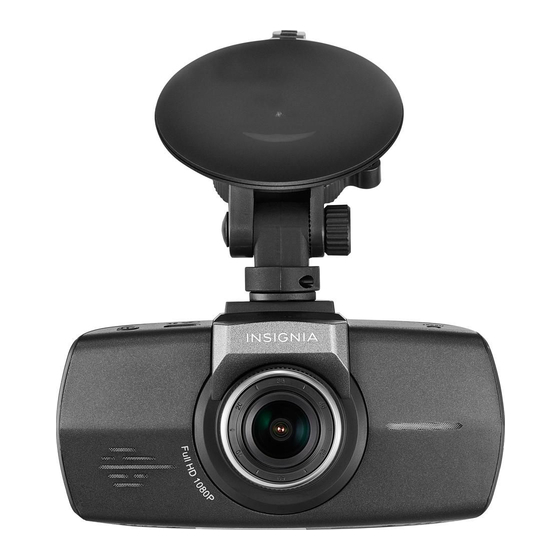

Dash Camera
NS-CT1DC8
PACKAGE CONTENTS
• Dash camera • USB cable
• Car Adapter • Quick Setup Guide
• Suction mount
FEATURES
• 1080p Full HD recording
• 2.7" LCD display
• Built-in G-sensor
• 130 degree wide angle lens
• Built-in microphone
• Memory card slot
• Micro USB interface
FIND YOUR USER GUIDE ONLINE!
Go to www.insigniaproducts.com, enter NS-CT1DC8 in the
search box, then press ENTER. Next to Features, click Support
& Downloads, then next to User Guide, select the language
you want.
Before using your new product, please read these instructions to prevent any damage.
Back
Front
Bottom
INSTALLING YOUR DASH CAMERA
1 Attach the dash camera to the suction
mount (provided).
2 Install the suction mount onto your
car's front windshield, then adjust the
dash camera to the proper angle for
recording.
3 Plug the provided USB cable's micro
SD connector into the dash camera.
4 Plug the other end of the USB cable
into the car adapter (provided).
5 Plug the car adapter into a 12V car socket.
Side
# ITEM
1 Indicator LED
2 Camera button
3 Menu button
Top
4 Save Event
5 Up/WDR/OSD
button
6 Turn on/off
recording OK button
7 Turn on/off
recording/Down
button
8 MicroSD card slot
9 Speaker
10 Reset button
11 Suction cup mount
12 Mini USB jack
13 Power button
14 Vents
15 Microphone
DESCRIPTION
Blue solid - Power on
Red blinking - Video recording
In camera mode, press to take pictures.
In video playback mode, press to delete the current file.
In loop recording mode, press to take pictures.
Press to switch between the system settings screen, function settings
screen, and the video interface.
In replay mode, press to return to the previous page.
During recording, press to lock current clip in card and prevent from being
erased. When not recording, press to enter playback file interface.
In loop recording mode, press to turn off the display.
In stop mode, press to turn WDR (Wide Dynamic Recording) on or off.
In OSD mode, press to go to the previous page.
While recording, press to stop recording.
In stop mode, press to begin recording.
In OSD mode, press to cycle through onscreen display modes.
Press to turn the sound recording on or off.
In OSD mode, press to go to the next page.
Insert MicroSD card (8 to 32GB) in this slot to store video files. Card is
required for recording and playback.
Plays sound from the device.
Press to reset your dash camera.
Attach the suction cup to this mount.
Connect a USB cable to this jack to power the dash camera or to download
files to a computer.
Press to turn on the dash camera.
Press and hold for two seconds to turn off the dash camera.
Provide airflow for the dash camera.
Captures audio when enabled.
