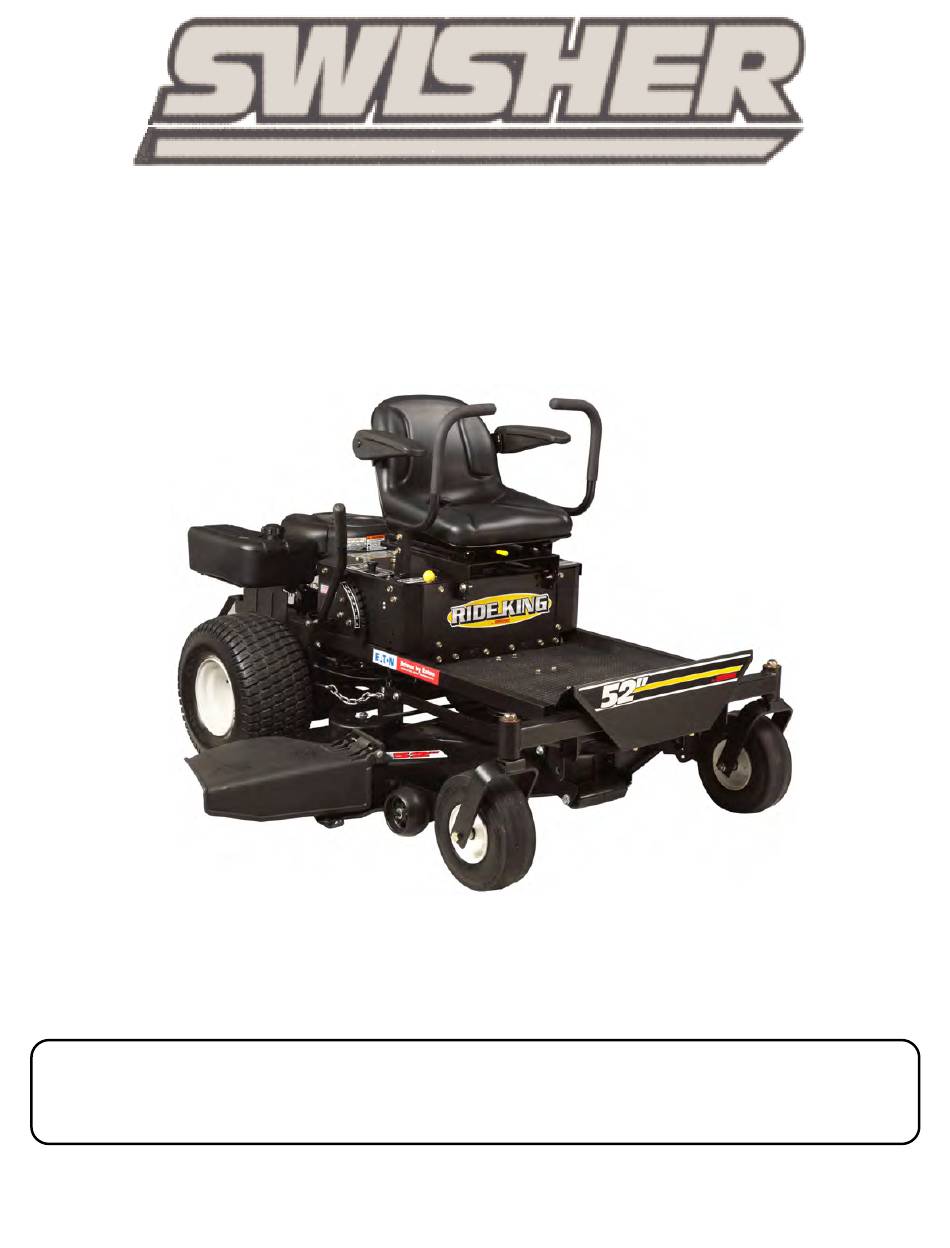

ZT2452
ZT2452
ZT2452
24 HP – 52" CUT
CELEBRATING OVER 60 YEARS OF INNOVATION
1945 - 2007
1602 CORPORATE DRIVE, P.O. BOX 67, WARRENSBURG, MISSOURI 64093
Made In The
PHONE 660-747-8183 FAX 660-747-8650
USA
Manufacturing quality lawn care equipment since 1945
OWNER'S MANUAL
STARTING SERIAL # TN107-297001
Rev. 07-351
OBS 14369
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Swisher ZT2452
Summary of Contents for Swisher ZT2452
- Page 1 ZT2452 ZT2452 ZT2452 24 HP – 52” CUT CELEBRATING OVER 60 YEARS OF INNOVATION 1945 - 2007 1602 CORPORATE DRIVE, P.O. BOX 67, WARRENSBURG, MISSOURI 64093 Made In The PHONE 660-747-8183 FAX 660-747-8650 Manufacturing quality lawn care equipment since 1945 OWNER’S MANUAL...
-
Page 2: Limited Warranty
1-800-222-8183. The model number, serial number, date of purchase, and the name of the authorized Swisher dealer from whom you purchased the mower will be needed before any warranty claim can be processed. THIS WARRANTY DOES NOT APPLY TO ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES AND ANY IMPLIED WARRANTIES ARE LIMITED TO THE SAME TIME PERIODS STATED HEREIN FOR ALL EXPRESSED WARRANTIES. -
Page 3: Table Of Contents
Deck Belt Replacement……… 19 CUSTOMER Hydro Belt Replacement…….. 21 RESPONSIBILITY…………… Seat Adjustment……………… 21 Operator Presence………………. WIRING SCHEMATIC………….. Tires…………………………………………… PARTS BREAKDOWN………….. Blade Maintenance………………….. TROUBLESHOOTING…………… Battery……………………………………… MOWER IDENTIFICATION…….. V-belts…………………………………….. REPLACEMENT PARTS……….. Engine……………………………………….. Warranty Rights…………….. Overall Unit Care………….……….. SWISHER HISTORY…………….. Transporting Safety………………. SPECIFICAT IONS…………….. Maintenance……….………………….. -
Page 4: Introduction
INTRODUCTION Congratulations Thank you for purchasing a Swisher Zero Turn mower. This machine is built for the greatest efficiency and rapid mowing of large areas. Conveniently located controls and dual commercial grade hydrostatic transmissions regulated by steering levers, contribute to the machine’s performance. -
Page 5: Uncrating & Assembly
INTRODUCTION Uncrating & Assembly TOOLS REQUIRED: 2 - ½” Wrenches or ½” Socket with drive ratchet Tire pressure gauge Nail bar or claw hammer Wire snips To Remove The Mower From The Crate: Dispose of top and side panels of the crate. Remove loose parts and packing material. -
Page 6: Symbols & Decals
SYMBOLS & DECALS OD45- Warning Decal Swisher Flag U.S.A.– OD39 Notice Do Not Alter Wiring Decal– OD74 Operator Must Be Seated Decal– OD73 Flying Debris Decal – OD43 No Step Decal – OD11 Triangle Danger Decal – OD55 Key/PTO Decal - 10273... -
Page 7: Safety Instructions
SAFETY INSTRUCTIONS These instructions are for your safety. Read them carefully. This Safety Alert Symbol indicates important messages in this manual. When you see this symbol, carefully read the message that follows and be alert to the possibility of personal injury. General Use Read all instructions in this operator’s manual and on the machine before starting it. -
Page 8: Children Safety
SAFETY INSTRUCTIONS General Use Continued… Always wear approved protective glasses or a full visor when assembling or driving. Ear Protection is recommended Remember Never wear loose clothing that can get caught in moving parts. The operator is responsible for avoiding dangers or accidents. Children Serious accidents may occur if you fail to be on guard for children in the area of the machine. - Page 9 MOWING SAFETY •WARNING – Petrol is highly flammable. - store fuel in containers specifically designed for this purpose; - refuel outdoors only and do not smoke while refueling; - add fuel before starting the engine. Never remove the cap of the fuel tank or add petrol while the engine is running or when the engine is hot.
-
Page 10: Customer Responsibility
CUSTOMER RESPONSIBILITIES Operator Presence System Be sure the operator presence and interlock systems are working properly. If your mower does not function as described, repair the problem immediately. The engine should not start unless the parking brake is engaged and the PTO (Blade Engagement –... -
Page 11: V-Belts
CUSTOMER RESPONSIBILITIES/SPECIFICATIONS V-Belts Check V-belts for deterioration and wear after 100 hours of operation and replace if necessary. Replace belts if they begin to slip from wear. SEE SPECIFICATION for belt part numbers and SERVICE section of this manual for instructions on how to replace the belt. -
Page 12: Maintenance
CUSTOMER RESPONSIBILITIES MAINTENANCE SCHEDULE Before Each 8 Hours 25 Hours 50 Hours 100 Hours Season Before Storage Check Brake Operation Check Tire Pressure Check Operator Presence Parking Brake Check for Loose Fasteners Sharpen/Replace Mower Blades Check Battery Clean Battery & Terminals Check Belts Check Engine Oil... -
Page 13: Operation
OPERATION FEATURES Throttle Control – Used to control Control Lever – Sets the speed of the Engine Speed mower in both the forward and reverse directions and also turns the mower. Hour Meter – Indicates hours of operation Hydro Bypass – Engages transmissions for normal operation and disengages Choke Control –... - Page 14 OPERATION FEATURES Throttle Control – Used to control Control Levers – Sets the speed of the Engine Speed mower in both the forward and reverse directions and also turns the mower. Hour Meter – Indicates hours of operation Hydro Bypass – Engages transmissions for normal operation and disengages Choke Control –...
- Page 15 OPERATION FEATURES Left Control Panel Right Control Panel Rear of Unit Throttle Control – Used to control Control Levers – Sets the speed of the Engine Speed mower in both the forward and reverse directions and also turns the mower. Hour Meter –...
-
Page 16: Starting
OPERATION Starting Operator must be sitting in the seat. Control handles must be in the neutral (outward) position. PTO must be in the disengage position (pushed down). Set choke (if needed), turn key and release as soon as engine starts. Adjust throttle to half and shut choke off. -
Page 17: Controls
OPERATION Controls Be familiar with all controls, their functions and how to operate them before starting the machine. Motion control levers on each side of the console control the direction of movement. SEE FIGURE BELOW Control Handles Neutral Position Slow Forward Fast Forward 90 Degree Right Turn 90 Degree Left Turn... -
Page 18: Service & Adjustments
Lift deck using the deck lift handle to the desired position Parking Brakes The Swisher ZT2352 is equipped with An Automatic Parking Brake system on each control handle. When the control handles are in the out most position the parking brakes are on. -
Page 19: Deck Belt Replacement
SERVICE & ADJUSTMENTS Deck Belt Routing & Replacement Removal Replacement Disconnect spark plug wire Install new belt by placing it around the deck pulleys. Refer to routing Apply parking brake diagram below. Lower the deck to its lowest position The belt will be loose at this time Remove the belt covers Tightly secure the belt tension back Disconnect tension idler... - Page 20 SERVICE & ADJUSTMENTS Hydro Belt Routing & Replacement Removal Replacement Disconnect spark plug wire Install new belt by placing it around the engine pulley and the hydro Apply parking brake pulleys. Refer to routing diagram Disconnect wiring from electric clutch below.
-
Page 21: Hydro Belt Replacement
Travel Reduction Adjustment (Ref. Page 29) To improve the tracking of the Swisher ZT2352 the speed of one of the rear wheels needs to be decreased. If the ZT2352 pulls to the right the left wheel will need to decrease speed and if pulling to the left the right wheel will need to decrease speed. -
Page 22: Wiring Schematic
WIRING HARNESS ZT2352 WARNING When it is necessary to raise the mower for any repair or service, use jackstands to provide adequate support. DO NOT rely on hydraulic or mechanical jacks... -
Page 23: Parts Breakdown
PARTS BREAKDOWN Item # Description Part # Item # Description Part # Screw - 1/4-14X.38" ST 26X229 Spring - Deck Lift Handl e 10535 Solenoid - 3 Pole 1002004 Bol t - 5/16-18 X 3 GR2 ZY NB563 Bolt - Serr Flange, 5/16-18X1GR5 ZY 10548 Handl e - Height Adjust Wel d ment 9952TK... - Page 24 PARTS BREAKDOWN Item # Description Part # 23 HP B&S Engine 5/16-18 Serrated Flange Nut NB170 Spacer Engine Pulley BB105SL Motor Pulley 3.25" 9993 1/4 X 1/2 Key Stock 4258 Engine Pulley Spacer Short .687 689S Electric Clutch 3813 Washer Belleville Engine Pulley 7/16-20 X 3.25 HCF GR5 ZP NB705 5/16-18 X 1 1/4 Serrated Flange Bolt NB253...
- Page 25 PARTS BREAKDOWN Item # Description Part # Bushing - Latch Pin 7839Z ITEM# DESCRIPTION PART NO. Eyebolt - 5/16-18 X 3 w/Gap ZY NB315 Washer - SAE Flat 5/16 ZY NB275 Spring - Clutch Rod; T60 682S Nut - Nyloc 5/16-18 ZY NB181 Nut - Nyloc 1/2-13 ZY Standard Pattern NB281...
- Page 26 PARTS BREAKDOWN Description Part # Nut - HNC, 3/8-16 GR2 ZY NB212 Eyebolt - Turned 3/8-16 X 5 ZY STD 10546 Bracket - Spring Assist 9926TK Bolt - Serr Flange, 5/16-18 X 1 1/2 Gr5 NB254 Nut - Serr Flange 5/16-18 ZY Case Hrd NB170 Bracket - Weldment, Travel Reduction 11176TK...
- Page 27 PARTS BREAKDOWN Item # Description Part # Deck - Stamped 52" 094663TK Bolt - Engine 3/8 X 1.25 0025X7 Bracket - Pulley Cover 690221TK Cover - Left Pulley 094645TK Bracket, Left Lifter 690164TK Bolt 26X227 Item # Description Part # Baffle - Left 094118TK Nut - Hex Flg Ctrlkz .38-16...
- Page 28 PARTS BREAKDOWN ITEM # PART NO. DESCRIPTION 690444 Pulley 1001200 Housing, Jackshaft 15x140 13046 Blade 15X100 17X165 Washer 17X166 Washer, Bellville Center Driver Outside Driver...
- Page 29 PARTS BREAKDOWN Item # Description Part # Tire/Wheel - 20x10-8 3756 Washer - Belleville .760 X 1.5 X .098 AS155 Nut - Castle 3/4-16, .625 Tall, Grade 2 2203CN Nut - Lug, Wheel Hub, 1/2-20 ZY GR5 2203LN Pin - Cotter, 1/8 X 3/4 ZY Std NB125 Tank - Gas, Assy.
- Page 30 PARTS BREAKDOWN Item # Description Part # Handle - 1" Weldment, Right 11768TK Bolt - Serr Flange, 5/16-18 X1 1/4ZY Gr5 NB253 Height - Selector, Deck 9940TK Bracket - Height Indicator 11770TK Seat - ZT, 18" No Arm Rest 10570 Panel - Control, Right 9990TK Switch - PTO...
- Page 31 PARTS BREAKDOWN Item # Description Part # Bolt - Carriage 5/16-18 X 3/4 GR5 ZY 10216 Frame - Pan 9999TK Brace - Zt 14411TK Plate - Pivot Housing Weldment 9954TK Nut - Serr Flange 5/16-18 ZY Case Hrd NB170 Stabilizer - Left, Deck 12934TK Stabilizer - Right;...
- Page 32 PARTS BREAKDOWN Item # Description Part # Item # Description Part # Pin - Cotter, 1/8 X 3/4 ZY Std NB125 Linkage - Steering' 9" X 1.25" 14032TK Washer - Fender, 5/16 X 1 1/4 OD ZY GR2 NB579 Connector 14028 Hydro Linkage Right Weldment 14058...
-
Page 33: Troubleshooting
TROUBLESHOOTING PROBLEM CAUSE CORRECTION Fill fuel tank Out of fuel Choked engine and attempt to restart Engine not “choked” properly Engine Will Wait several minutes before attempting to Engine flooded restart. Not Start Replace spark plug Bad spark plug Clean or replace air filter Dirty air filter Replace fuel filter Dirty fuel filter... - Page 34 TROUBLESHOOTING Continued PROBLEM CAUSE CORRECTION Cutting too much grass/ too fast Set in High Cut (position 8)/reduce speed Loss of “Choke” position Push choke control in Power Buildup of grass, leaves and trash under Clean underside of mower deck deck. Clean or replace air filter Dirty air filter Check oil level/change oil...
-
Page 35: Mower Identification
All mower parts listed herein may be ordered durability and safety of this unit and directly from Swisher Mower & Machine Co. may void the warranty. Swisher Inc. or your nearest Swisher dealer. disclaims liability for any claims or... -
Page 36: Replacement Parts
Replacement Parts Quick Reference Swisher Part # Part Description 12777 Deck Lift Linkage Assembly AS069 Fuse 10 Amp 6046 47” Hydro Belt 3756 20 x 10 x 8 Rear Tire 12527 130” Deck Belt 12509 22.5 Mulching Blade 037X89 Engine to Deck Belt... -
Page 37: Warranty Rights
Outdoor Power Equipment, must be designed, built and equipped to meet the State’s stringent anti-smog standards. Swisher Mower must warrant the EECS on your Power Equipment, for the period of time listed below provided there has been no abuse, neglect, or improper maintenance. For model year 2006 the EECS on your mower includes the liquid fuel lines, fuel line connectors, and fuel line clamps. -
Page 38: Swisher History
SWISHER HISTORY Back before electricity came to rural Missouri Max Swisher was producing lawn mowers from his mother’s chicken house. Max never liked to mow grass. He installed a gearbox on his family’s lawn mower creating a self-propelled unit. By tying one end of a rope to the mower and the other end to a tree in the center of the yard the mower circled the tree, shortening the rope and guiding the mower in concentric circles.
