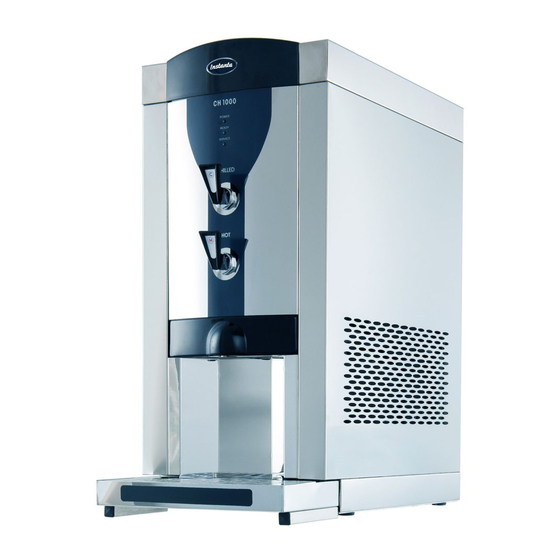

- Page 1 SmartFlow Boiler and Chiller CH1000 Auto-Fill Catering Water Boiler with Integrated Multi-Filter INSTALLATION AND USER INSTRUCTIONS INSTANTA LIMITED Canning Road * Southport * Merseyside* PR9 7SN Tel: (01704) 501114 * Fax: (01704) 50111 IB9 - ISS: 02...
-
Page 2: Table Of Contents
Your new water boiler/chiller is designed to give you years of trouble-free service provided that the instructions contained in this manual are followed. All new series Instanta products are energy efficient, simple to operate and easy to service. Find out more about Instanta products at... -
Page 3: Safety, Pre-Installation & Environmental Information
Keep these instructions in a safe place near the unit for future reference PRE-INSTALLATION IMPORTANT: The CH1000 contains a refrigeration system. Therefore, upon receipt, the appliance should be left standing upright for approximately 12 hours, before installing and switching on. This is because, during transportation, if the unit has not been kept totally upright, the oil inside the compressor may have leaked into the refrigeration system and will need time to settle. -
Page 4: Delivery Checklist & Technical Specification
NOTE: If your water pressure exceeds 7bar, fit a suitable pressure reduction valve. We regret that Instanta cannot be held responsible for any machine malfunctions if the water pressure exceeds that stated. If in doubt, consult your water supply company... - Page 5 Electrical Connection: The boiler must be Earthed. Your machine is supplied with a standard 13amp bonded plug with a 13amp fuse. Overflow: The drip-tray has a limited capacity and is designed to handle small spillages and drips only. Wherever possible, we strongly recommend that it is connected to a permanent waste outlet using the fitting kit provided.
-
Page 6: Operation
(e.g. overnight). Whilst every reasonable precaution is taken to prevent an overflow, Instanta cannot be held responsible for any damage caused as a result of incorrect installation or blockage of the overflow or failure to direct the overflow to a safe outlet. -
Page 7: Cleaning
Replace evaporation plates, tank-lid and outer lid. Cleaning (cold water side) The carbon filter (in-line on the hose) should be replaced every 6 months The chiller side should be sanitised every 6 months (use SAN/KIT) from Instanta spares and flow instructions Draw-off tap: The tap spring and washer components are subject to ware &... -
Page 8: Service Warnings & Fault Diagnostics
SERVICE WARNINGS AND FAULT DIAGNOSIS Your boiler is fitted with an intelligent fault diagnosing system and is able to detect various fault conditions. Some of these are less serious and the machine will continue to operate as normal, while others are more serious and will disable the unit. Before calling for service, switch the machine off at the mains supply. -
Page 9: Guarantee
GUARANTEE Your boiler is guaranteed for two years from date of installation. Our guarantee includes on site labour and parts for problems caused by fault of manufacture and component failure with the following exclusions: Problems caused by hard water and lime scale. We regret that we cannot be held responsible for problems caused by hard water Dripping Taps.
