HP ProLiant SL335s G7 Installation Sheet

HP ProLiant SL335s G7 Server
Installation Sheet
Part number: 633289-003
*633289-003*
March 2013 (Third edition)
633289-003
Legal notices
© Copyright 2010, 2013 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice. The only warranties
for HP products and services are set forth in the express warranty statements accompanying
such products and services. Nothing herein should be construed as constituting an additional
warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
Important Safety Information
Læs dokumentet Vigtige sikkerhedsoplysninger på dokumentations-cd'en, før produktet installeres.
Prima dell'installazione, leggere sul CD le Informazioni importanti sulla sicurezza.
Les "Viktig sikkerhetsinformasjon" på dokumentasjons-CDen før du installerer dette produktet.
Tärkeisiin turvatietoihin" Documentation CD -levyllä ennen tuotteen asentamista.
Läs dokumentet Viktig säkerhetsinformation på dokumentations-cd:n innan du installerar denna produkt.

Identifying Server Components

Front Panel Components

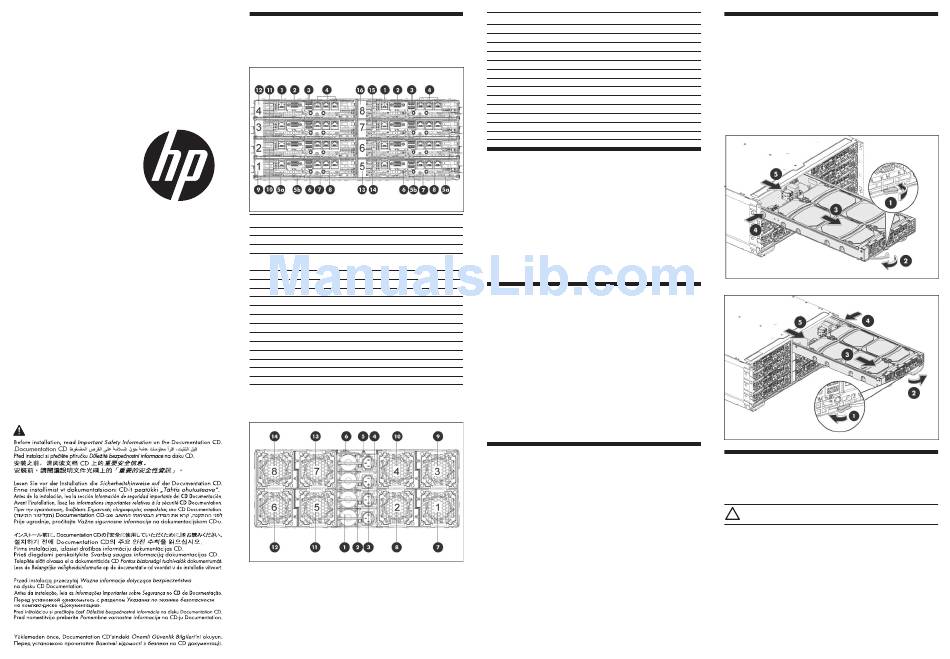

Figure 1 Front panel components of the s6500 Chassis with eight SL335s G7
Servers
Item Description
1 Serial port
2 VGA port
3 USB 2.0 ports
4 IPMI connector
NIC 1 and 2 connectors
5a Server handle
5b Server latch
6 Power LED/SW
7 Health LED
8 UID LED/SW
9 Server 1
10 Server 2
1 1 Server 3
12 Server 4
13 Server 5
14 Server 6
15 Server 7
16 Server 8

Rear Panel Components

Figure 2 Rear panel components of the s6500 Chassis with eight SL335s G7
Servers
Item Description
1 Power supply 1
2 Power supply 2
3 Power supply 3
4 Power supply 4 (can also be use for SLAPM interface)
5 UID LED/SW
6 Fan 1
7 Fan 2
8 Fan 3
9 Fan 4
10 Fan 5
1 1 Fan 6
12 Fan 7
13 Fan 8

Server Configuration Resources

In addition to this Installation Sheet, other resources are available for more
information regarding the configuration and maintenance of your server:
• For safety information and detailed procedures relating to installation of options,
refer to any installation instructions that came with the option, as well as the
HP ProLiant SL335s G7 Server Maintenance and Service Guide.
• For safety information, regulatory notices, and detailed procedures related
to the rest of the steps listed in the "Configuring the Server" section, see the
relevant chapter of the HP ProLiant SL335s G7 Server User Guide.
• See the HP ProLiant SL335s G7 Server Documentation CD for additional
information and updates not provided in this installation sheet. You can
also access additional information and documentation from the HP website
at http://www.hp.com/ either by connecting directly or through the
Documentation CD.

Server Configuration Overview

The steps listed below give an overview of the necessary setup procedures for
preparing the HP ProLiant SL335s G7 Server for operation:
1. Connect the AC power cord and peripheral devices.
2. Power up the server.
3. Press F9 to enter BIOS setup.
4. Note the server BIOS version.
5. Verify the server BIOS version against the latest BIOS version listed for this
server on the HP website: http://www.hp.com.
6. If you do not have the latest BIOS, update the BIOS now. See the HP ProLiant
SL335s G7 Server Maintenance and Service Guide available on the HP
website: http://www.hp.com.
7. Install a supported operating system of your choice. For detailed procedures,
see the documentation provided with the operating system vendor.
For a list of operating systems supported by your ProLiant server, go to
http://www.hp.com/go/supportos.
Pre- and Post-installation
Procedures
When installing additional options in your HP ProLiant SL335s G7 Server, observe
the following procedures:
Pre-installation Procedures
1. Turn off the server and all the peripherals connected to it.
2. Remove the server from the chassis by following the procedure described later in
the "Removing the server" section.
Post-installation Procedures
1. Be sure all components are installed according to the described step-by-step
instructions.
2. Check to make sure you have not left loose tools or parts inside the server.
3. Reinstall the PCI riser, peripherals, and system cables that you have removed.
4. Reinstall the server into the chassis.
5. Connect all external cables to the system.
6. Press the power button on the front panel to turn on the server.

Removing the Server

You need to remove the server from the chassis before you can remove or replace a
server component.
To remove server:
1. Press the latch to release the handle.
2. Rotate the handle to disengage the power connector.
3. Extend the server from the chassis until the release latch catches.
4. Firmly holding the server, press the release button.
5. Remove the server from chassis.
6. Install the server blank in the server slot.
Figure 3 Removing the left server tray
Figure 4 Removing the right server tray

Installing a Hard Disk Drive

The chassis can accommodate eight server trays. Each server tray can
accommodate up to four LFF hard disk drives for maximum of 32 LFF hard disk
drives per chassis. The server supports both SAS and SATA hard disk drives.
CAUTION: Drives can be damaged by static electricity. Before handling
drives, touch an unpainted metal surface to discharge static electricity.
To install the hard disk drive in the server tray:
1. Unlock the HDD carrier latches.
2. Rotate the HDD carrier handle up.
3. Insert the HDD carrier and align the pins.
4. Rotate the HDD carrier handle down.
5. Lock the HDD carrier latches.
