MIX/MOD FILTER (p. 34)
(p. 32)
This adjusts the brightness or thickness of the sound
produced in the MIX/MOD section. Here you can
This mixes the
also add a distinctive tonal character that is typical of
waveforms
synthesizer sounds.
generated by OSC 1
and OSC 2 to create
FILTER ENV (p. 37)
a richer sound.
Here you can also
Here you can create time-varying changes in tone,
boost or cut the low-
such as the way in which a note played on a piano
frequency range.
begins with a bright tone and gradually becomes
more mellow.
LFO 1/LFO 2 (p. 40)
Here you can apply cyclic change to the sound,
such as modulating the pitch to create vibrato,
or modulating the volume to create tremolo.
PEDAL Jack (p. 21)
Connect a pedal switch (DP series;
sold separately) or expression pedal
(EV-5; sold separately) to this jack.
USB Connector (p. 54)
Connect this to your computer.
GROUP/BANK/NUMBER Buttons (p. 16)
Use these buttons to select the patch you want to play.
If the ARPEGGIO SELECT button's indicator is lit, these
buttons will select an arpeggio template (p. 23).
WRITE Button/CANCEL Button (p. 48)
Use these buttons to save a sound you've created.
INPUT Jacks (p. 49)
Connect your digital audio
player, CD player, or sampler
to these jacks.
MIDI Connectors (p. 58)
Connect other MIDI devices to
these connectors.
AMP (p. 38)
This determines the loudness of the sound that has
passed through the FILTER section. Here you can
also distort the sound to make it more powerful.
AMP ENV (p. 38)
Here you can create time-varying changes in volume,
such as the way in which a note played on a piano
gradually diminishes, or the way in which notes on a
bowed-string instrument begin gradually.
OUTPUT Jacks (p. 13)
Connect your monitor
speakers or stereo set to these
jacks.
PHONES Jack (p. 13)
Connect headphones (sold
separately) to this jack.

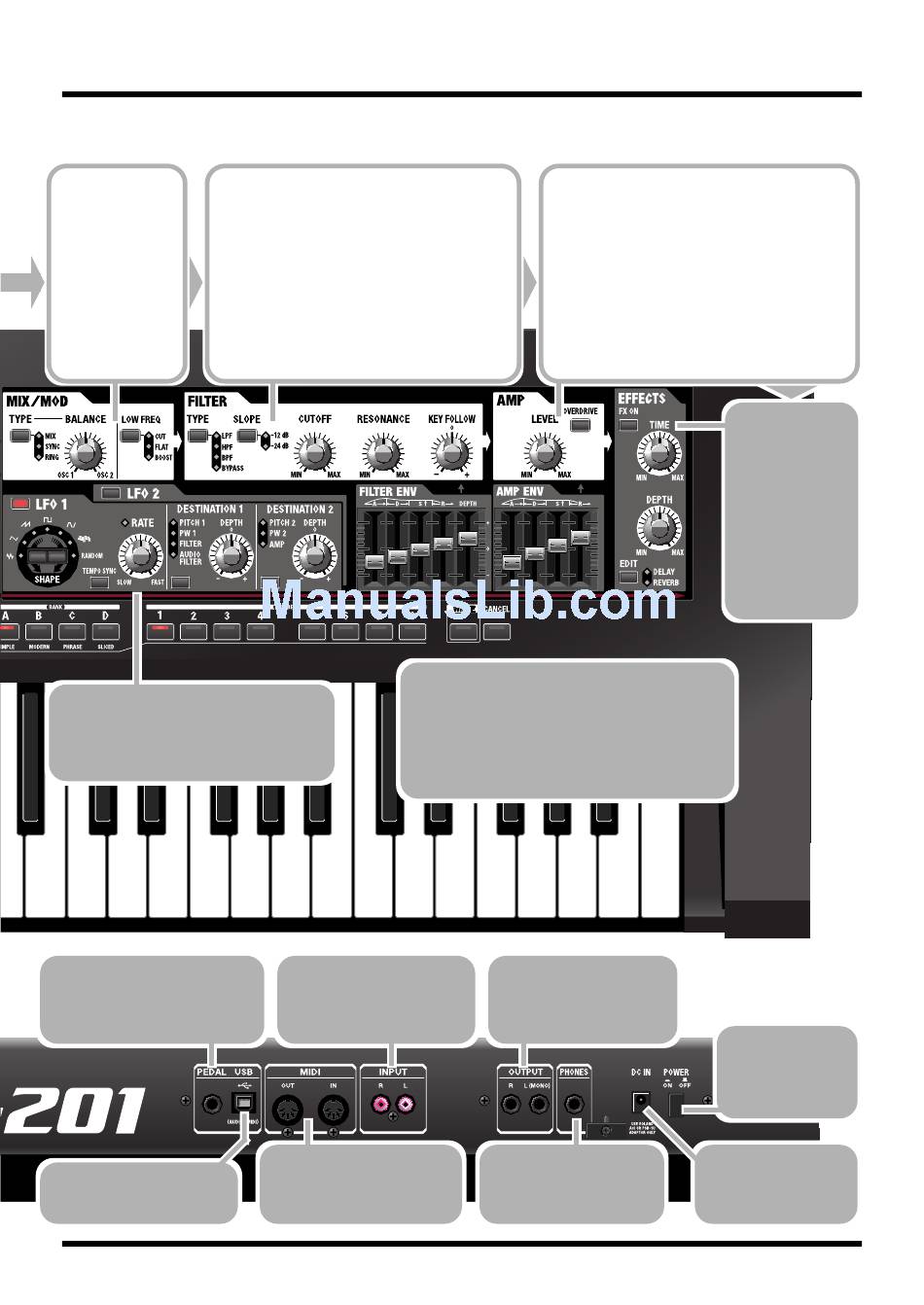

Panel descriptions
EFFECTS
(p. 44)
Here you can add
depth and
spaciousness to the
sound by applying
effects such as echo
or reverberation to
simulate the
acoustic character
of a room or hall.
POWER Switch
(p. 14)
This switch turns the
power on/off.
DC IN Jack (p. 12)
Connect the included
AC adaptor to this jack.
