Becker RT6512 Installation And Operation Manual

Remote-controlled vhf-am transceiver
Hide thumbs Also See for RT6512:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operation & Installation Manual
Becker Avionics GmbH • Baden-Airpark B108 • 77836 Rheinmünster • Germany
 +49 (0) 7229 / 305-0 • Fax +49 (0) 7229 / 305-217
http://www.becker-avionics.com • E-mail: info@becker-avionics.com

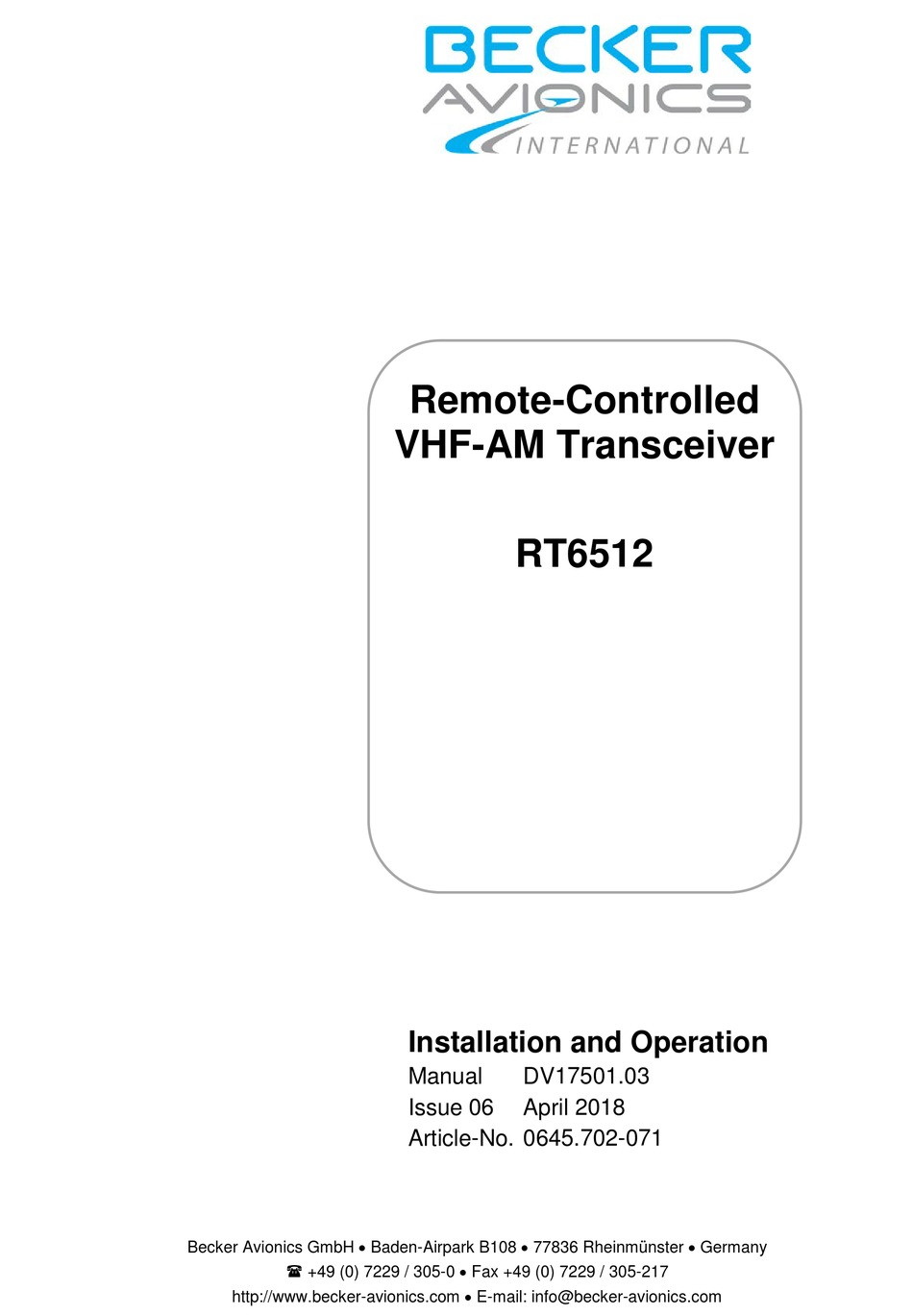

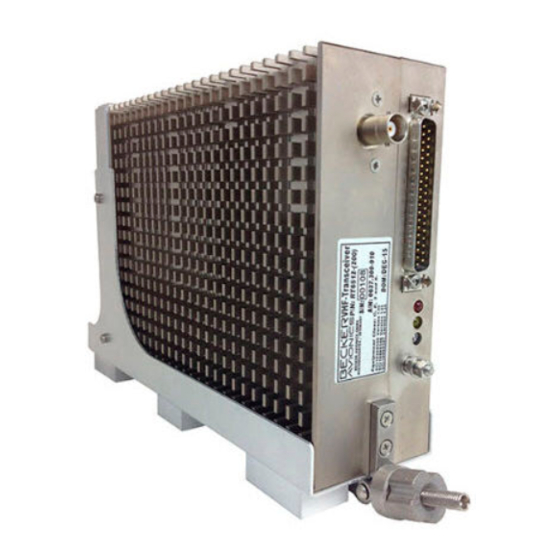

Remote-Controlled
VHF-AM Transceiver
RT6512

Installation and Operation

Manual
DV17501.03
Issue 06
April 2018
Article-No. 0645.702-071
