Questtel 1B-SDI-W-TX User Manual

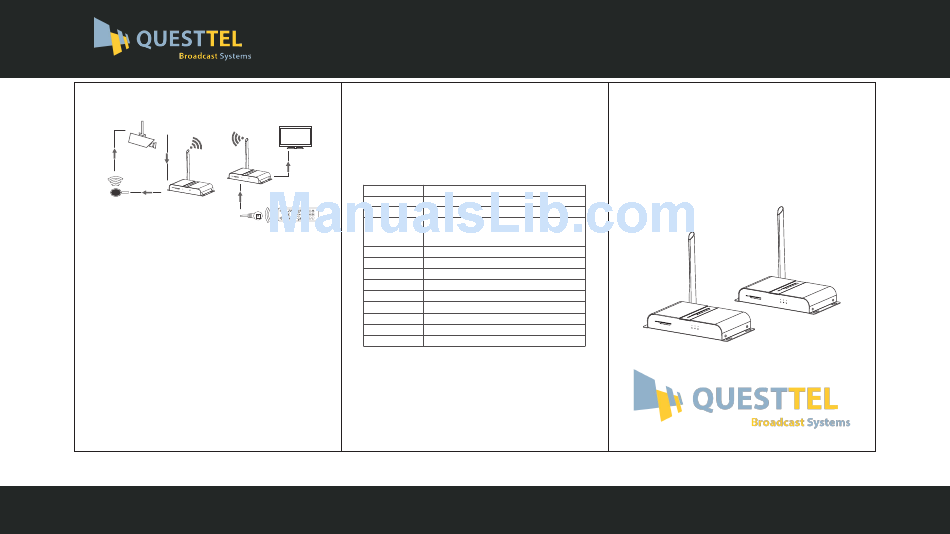

• Connection
HD CAMERA
SDI Cable
SDI Extender
RX receiver
SDI Extender
TX sender
Connection instruction:
1). Connect SDI input with SDI source device and connect IR blaster
extension cable with IR OUT interface of the sender (TX).
2). Connect SDI output with SDI display device and connect IR
receiver extension cable with IR IN interface.
3). Power on the device (power led lights) and it works.
Note:
1） When the wireless signal transmits through wall, glass or other
obstacles, it will cause signal loss. Suggest installing this device in
good environment with few obstacles.
2） The external environment wireless signal interfere the transmission,
such as micro waver, wireless mouse and keyboard etc.
• FAQ
Q: TV display "waiting for connection" on the bottom right corner?
A: Please check if the power supply of TX (sender) and RX(receiver) is well
connected and the power indicator led lights on.
Q: TV display "Please check the TX input signal"?
A: 1) please check if there is an SDI signal input of sender TX
2) Try to connect the signal source directly to display device to see if there
is signal output from source device or change the signal source, SDI
cables and try again.
www.questtel.com
Q: Display not fluent and stable?
A: 1) Please move the position of sender (TX) and receiver (RX) and make sure
the device is within the required scope of the signal.
2) Press"reset" button on the RX/RX panel, reset and reconnect.
3) Remove other wireless signal disturbance and reduce the obstacles on
TV
the way.
SDI Cable
• Specification
Items Specification
SDI signal SD-SDI,HD-SDI,3G-SDI
Transport protocol HDbitT
SD-SDI：480i@60Hz，576i@50Hz
Support resolution HD-SDI：720p@50/60Hz，1080i@50/60Hz,1080p@24/25/30Hz
3G-SDI：1080p@50/60Hz
IR remote control Support 20~60kHz wide frequency IR remote device
Transmit distance 200m
Working temperature 0℃～60℃
Power supply DC5V/3A *2PCS
Power consumption TX: 13W; RX: 11W
Enclosure material
Metal
Product dimension 195.5(W) x 138.5(D) x 32(H)mm *2PCS
Weight TX: 575g RX:575g
Color Black
Disclaimer
The product name and brand name may be registered trademark of related
manufacturers.TM and ® may be omitted on the user manual. The pictures
on the user manual are just for reference,and there may be some slight
difference with the real products.
We reserve the rights to make changes without further notice to a product
or system described herein to improve reliability, function or design.
Wireless SDI Video Transport
User Manual
1B-SDI-W-TX/RX
