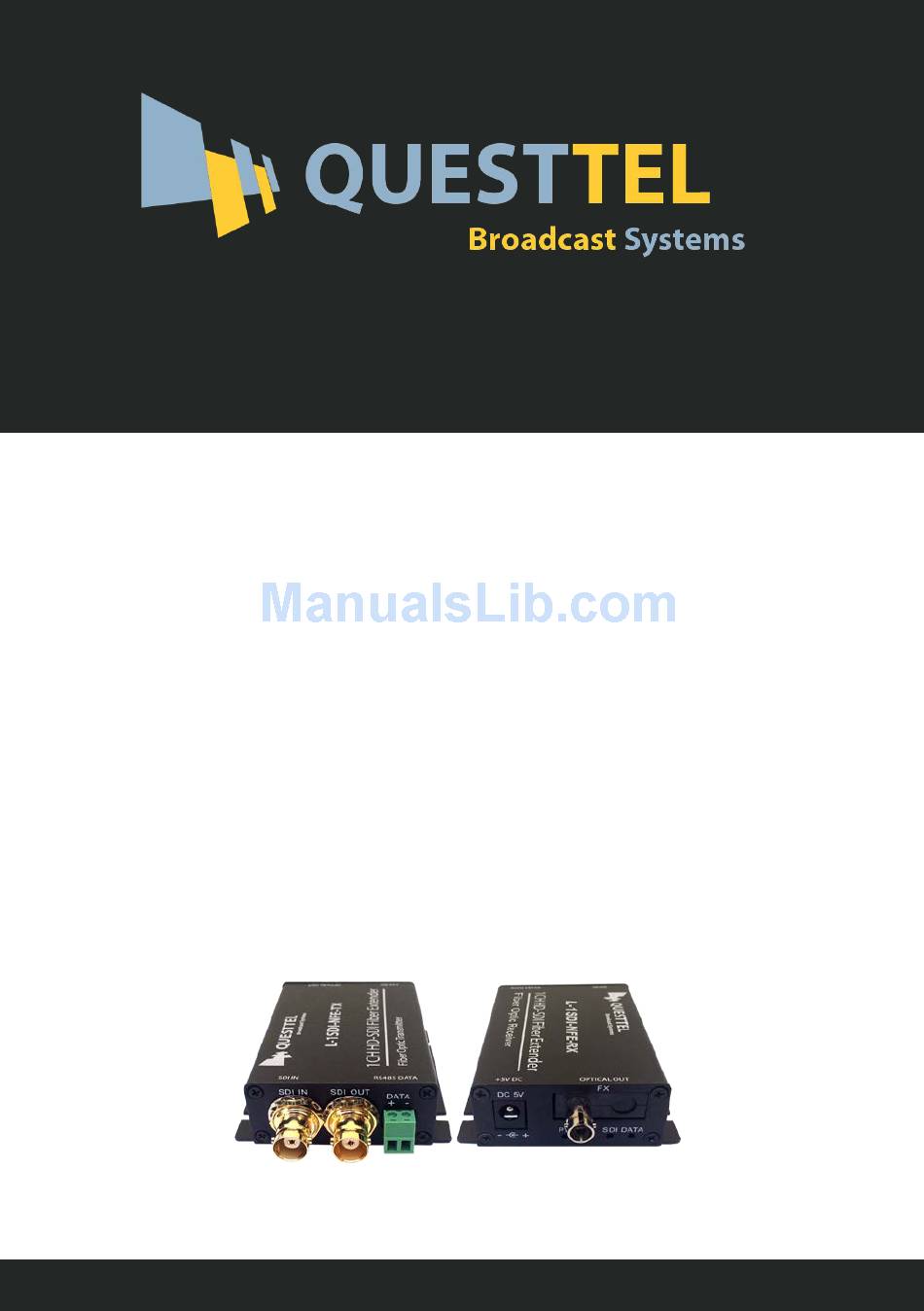

- Page 1 HD/SD-SDI Over Fiber Transmitter and Receiver Extender Kit User Manual L-1SDI-NFE-TX/RX www.questtel.com sales@questtel.com...
-
Page 2: Table Of Contents
L-1SDI-NFE-TX/RX SDI over Fiber User Manual Table of Contents Table of Contents---------------------------------------------------------------------------------1 Notes for Safe Use-------------------------------------------------------------------------------2 Product Overview--------------------------------------------------------------------------------4 Product Characteristics--------------------------------------------------------------------------4 Technical Parameters----------------------------------------------------------------------------5 Video Parameters --------------------------------------------------------------------------------5 Optical Parameters -------------------------------------------------------------------------------6 Data Parameters ----------------------------------------------------------------------------------6 General Parameters-------------------------------------------------------------------------------7 ApplicationDrawing-----------------------------------------------------------------------------8 Panel of Optical Transmitter and Receiver ---------------------------------------------------8... -
Page 3: Notes For Safe Use
L-1SDI-NFE-TX/RX SDI over Fiber User Manual Notes for Safe Use In order to prevent any damage to your or others’ property, please follow the manual for safe use, although this equipment is designed reliably and safely. 1. Please read this manual carefully and keep it for your further information. -
Page 4: Product Overview
SDI over Fiber User Manual Product Overview QuestTel L-1SDI-NFE-TX/RX is a HD/SD-SDI over singlemode or multimode fiber transmitter and receiver extender kit. This unit provides optical transmission of one HD/ SD-SDI signal with embedded audio signal and has reversed RS485 data channel for camera control also loop-out connectors on the transmitter &... -
Page 5: Technical Parameters
L-1SDI-NFE-TX/RX SDI over Fiber User Manual Technical Parameters: Serial Video Signal BNC Input SMPTE292M,SMPTE259M,SMPTE297M, SMPTE310, SMPTE305(SDTI), DVB- ASI(EN50083-9) TV Signal Standards Input 1 channel Return Loss >15DB 75Ω BNC Connector Serial Video Signal BNC Output Transmitter :1-ch Output Receiver: 1-ch (2-ch loop output optional);... -
Page 6: Data Parameters
L-1SDI-NFE-TX/RX SDI over Fiber User Manual Data Parameter Physical Interface Terminal Block of Industrial Standard RS485 Transmission rate 0-400 Kbps Data Rate 0-400Kbps － 12 Bit Error Rate <10 General Parameter Operating Temperature -15℃~ +50℃ Storage Temperature -40~85℃ Operating Humidity... -
Page 7: Applicationdrawing
L-1SDI-NFE-TX/RX SDI over Fiber User Manual Application Drawing www.questtel.com sales@questtel.com... -
Page 8: Panel Of Optical Transmitter And Receiver
L-1SDI-NFE-TX/RX SDI over Fiber User Manual Panel of Optical Transmitter and Receiver On the front and back panel there are Led indicators, Fiber Interfaces, Video Interfaces (BNC), Terminal Block, Power interface. Standard Transmission Distance: Single mode=20km; Multi mode=2km Warning! Active fiber-optic cables emit radiation invisible to the human eye. - Page 9 L-1SDI-NFE-TX/RX SDI over Fiber User Manual LED Indicators: The difference between Optical Transmitter and Receiver is that the LED indicators of Transmitter with Red Lights, and the LED indicators of Receiver with Green Lights. 1) HD/SD-SDI Transmitter (Red Led Lights)
- Page 10 L-1SDI-NFE-TX/RX SDI over Fiber User Manual 2) HD/SD-SDI Receiver (Green Led Lights) Name No light Light on Light flashes Power is off, short Power is on POWER circuit OPTIC ASYNC Effective Invalid video video signals signals (Normal Optical detected condition)
-
Page 11: Note Before Installation
L-1SDI-NFE-TX/RX SDI over Fiber User Manual Installation Instructions 1. Notes before Installation ① Five items in package, including: 1 Transmitter, 1 Receiver, Users’ Manual, 2 power Adaptors (without power adaptors when the Users self-provide Power Supply). Please contact your seller if any one of them is missed. -
Page 12: Responsibility Note
L-1SDI-NFE-TX/RX SDI over Fiber User Manual Responsibility Note: ① The manufacturer will not be responsible for the damage caused to the devices in transportation when they are returned for repair. ② Please contact the authorized seller if damages are caused to the functions or appearances of the devices in transportation. -
Page 13: Safety Instructions
Safety Instructions Read before operating equipment. 1. Cleaning - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 2. Power Sources - Use supplied or equivalent UL/CSA approved low voltage DC plug-in transformer. 3.
