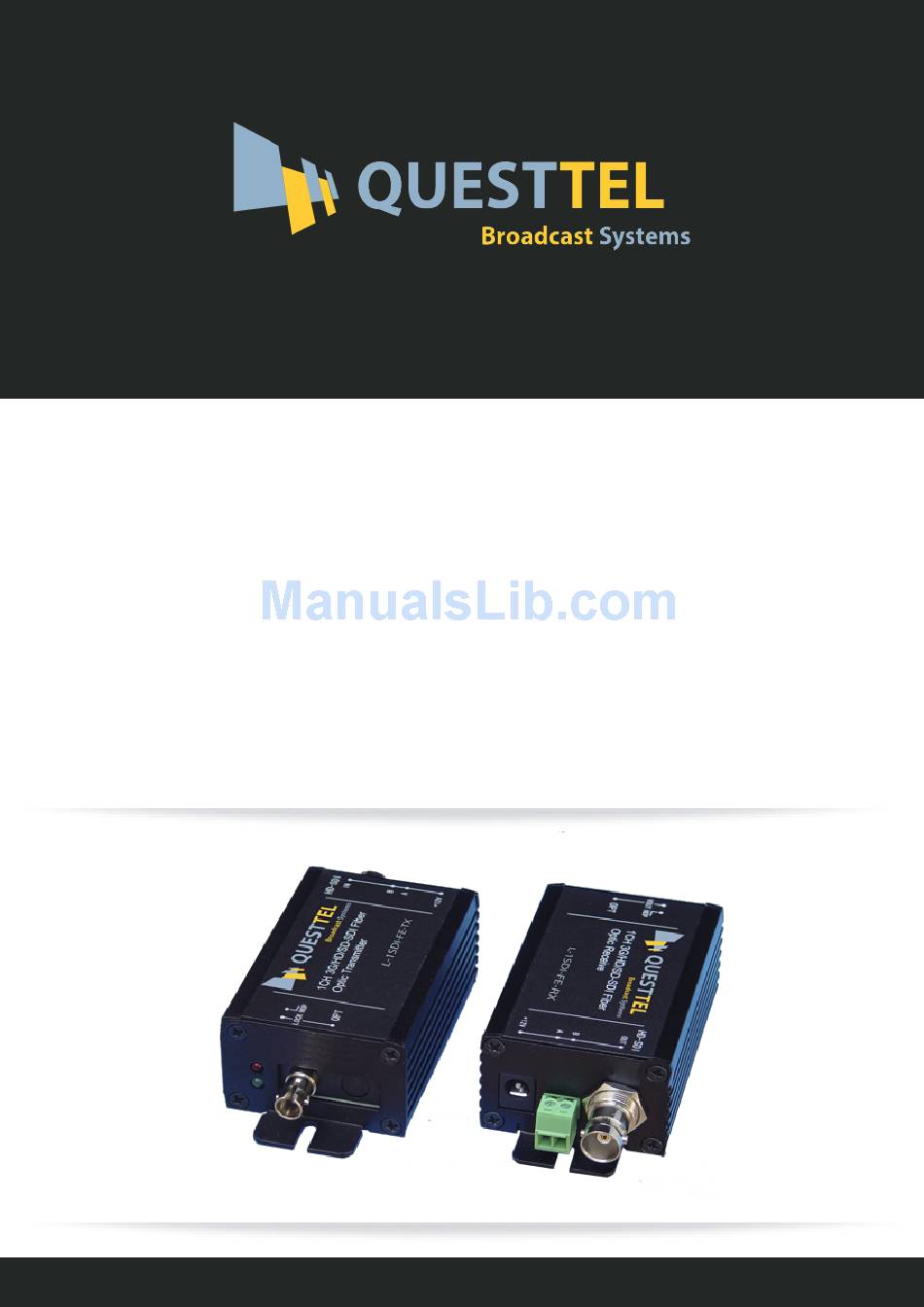

- Page 1 HD/SD-SDI Over Fiber Transmitter and Receiver Extender User Manual L-1SDI-FE-HD-TX/RX www.questtel.com sales@questtel.com...
- Page 2 L-1SDI-FE-HD-TX-RX HD/SD-SDI Over Fiber User Manual User Handbook Contents 1INTRODUCTION ........................... 2 1.1O ............................2 VERVIEW 1.2F ............................2 EATURE 1.3A ............................. 2 PPLICATION 2 PANEL DESCRIPTION ........................3 2.1 F ..........................3 RONT ANEL 2.2 R ............................ 3 ANEL 3TECHNICAL SPECIFICATION ......................
- Page 3 SD/HD-SDI signal as well as audio signal and has reversed RS485 data channel for camera control. L-1SDI-FE-HD-TX/RX kit can be used in HD video conference, as well as HD video monitoring, intelligent transportation system and public security system.
-
Page 4: Panel Description
L-1SDI-FE-HD-TX-RX HD/SD-SDI Over Fiber User Manual User Handbook 2 Panel Description 2.1 Front Panel LOCK VOUT Receiver front panel Transmitter front panel Transmitter/Receiver front panel Interface Description Optical interface, bi-directional, adopts FC connector Optical signal loss alarm indicator, red. ON: Optical signal loss is detected at the port. - Page 5 L-1SDI-FE-HD-TX-RX HD/SD-SDI Over Fiber User Manual User Handbook Receiver Rear Panel Interface Description POWER 12V DC power input RS485 positive terminal RS485 RS485 negative terminal HD-SDI OUT SD/HD-SDI video output 3Technical Specification Technical Specification Item Description Transmitter optical interface Wavelength(nm)
- Page 6 L-1SDI-FE-HD-TX-RX HD/SD-SDI Over Fiber User Manual User Handbook Baud rate 0~115.2Kb/s Bit error ratio <10 Work mode Half-duplex Power and Consumption Power supply DC 12V range 8V~14V 1.5W±10% Power consumption Environment Requirements -30～+60℃ Working temperature ≤95％, no condensation Relative Humidity -40～85℃...
-
Page 7: Safety Instructions
This unit outputs continuous invisible light, which may be harmful to the eyes; use with caution. For additional safety, plug the attached WARNING! dust caps into the optical transceivers when the fiber optic cable is unplugged. Direct viewing into optical connectors should be avoided at all times! www.questtel.com sales@questtel.com...
