Lewitt LCT 840 Quick Start Manual

// User interface
1 On/Off switch
2 Fuse
3 Mains socket
4 Mains voltage selection switch
5 3-pin XLR socket
6 11-pin XLR socket
7 Pre-attenuation indications
8 Pre-attenuation push button
9 Polar pattern selection
10 Status indicator ring
11 Low-cut fi lter indications
12 Low-cut fi lter push button
13 11-pin audio cable
Supply voltage: Custom power supply unit 230 V, 50 Hz 110 V, 60 Hz
Current consumption: 14.66 W
Connector: Gold plated 11-pin XLR
Cable: 5 m (16.40 ft) 11-pin audio cable oxygen-free copper
READ THE
FULL MANUAL!
Learn Everything about your LCT 840
www.lewitt-audio.com/resources/manuals/LCT-840.pdf
// Overview

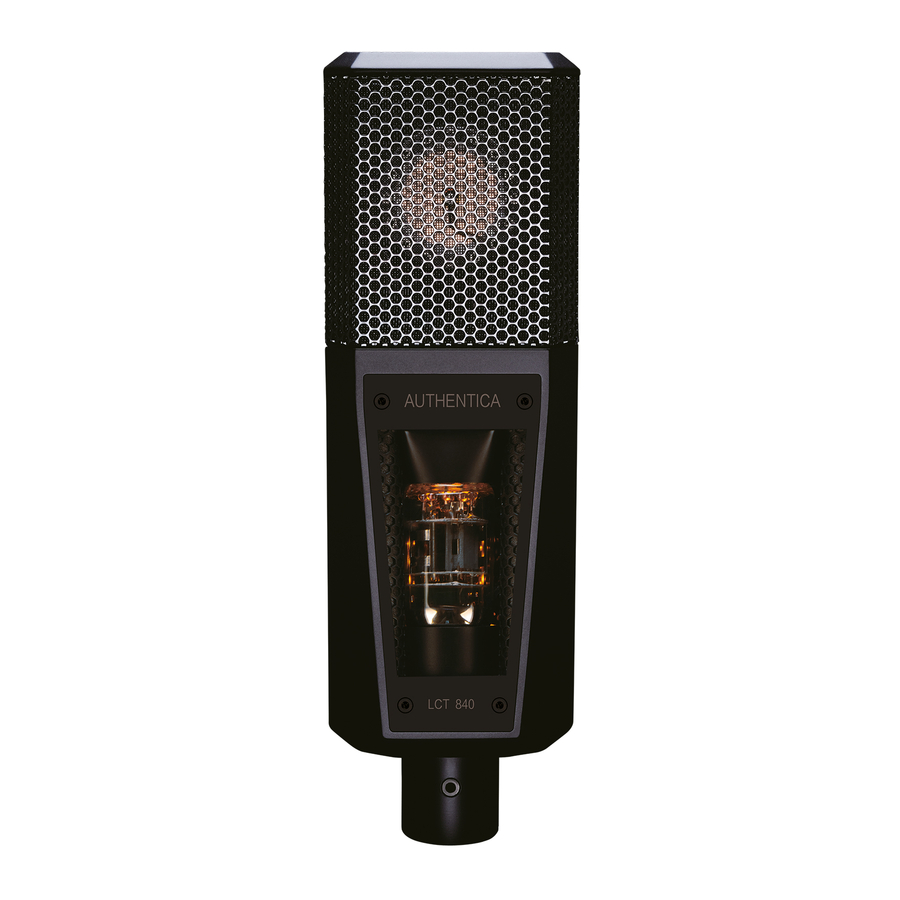

// Large diaphragm condenser tube microphone
// Multi-pattern microphone: omnidirectional, wide cardioid,
cardioid, supercardioid, fi gure-8
// Noiseless pushbuttons for quick and easy attenuation and
low-cut fi lter selection
// 4 low-cut settings: linear, 40 Hz (12 dB/oct), 150 Hz (6 dB/oct)
and 300 Hz (6 dB/oct)
// 3 pre-attenuation settings: 0 dB, -10 dB and -20 dB
//
High dynamic range and low self-noise
// Custom power supply unit with illuminated user interface
for easy handling - even in dark environments
// Gold plated & corrosion-resistant 11-pin XLR socket
Top applications //
Vocals, acoustic instruments
and wind instruments
3
1
2
7
8
13
// LCT 840
QUICKSTART GUIDE
4
5
11
9
12
10
6
