Moog MP-201 Quick Start Manual

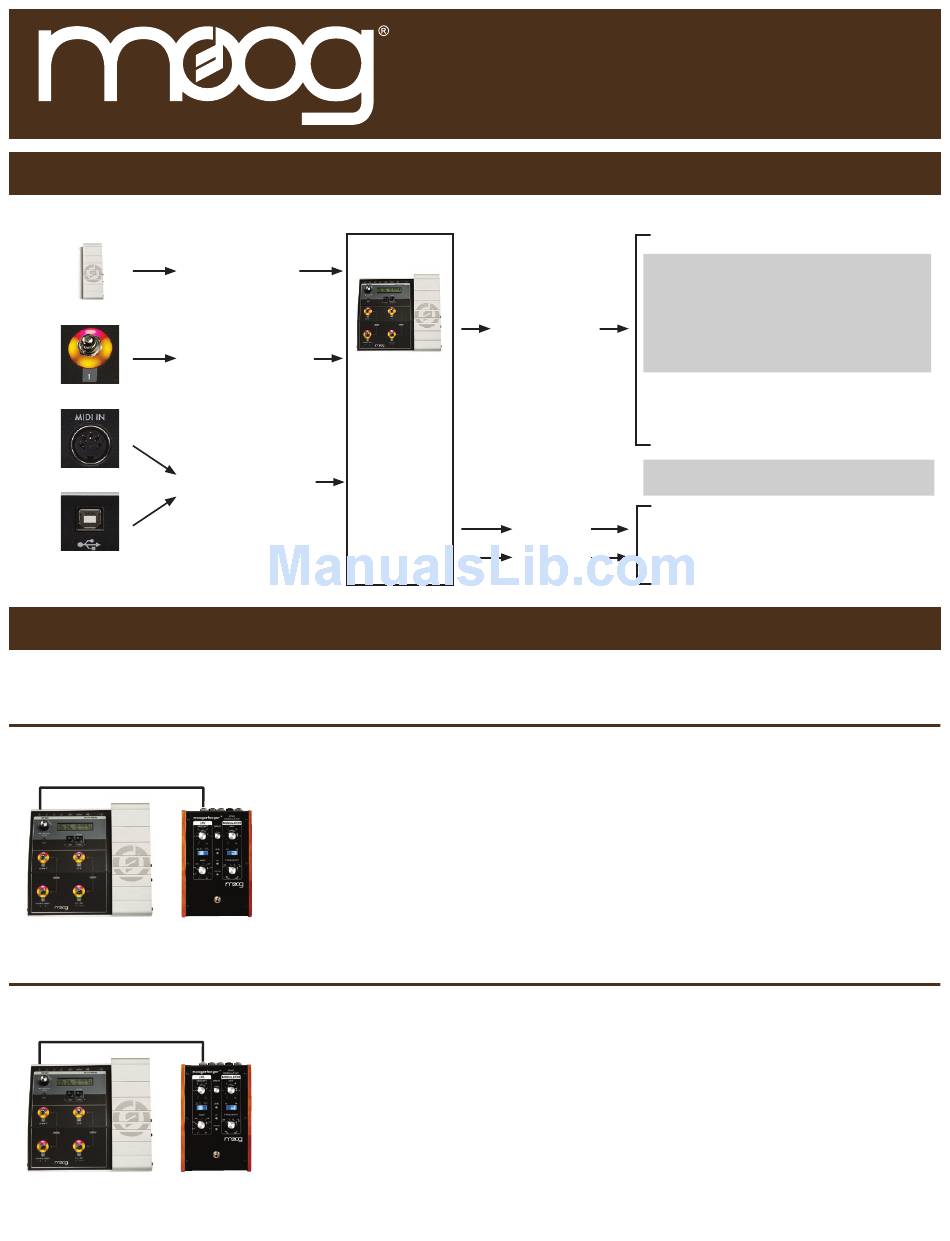

THE BIG PICTURE
HARDWARE INPUTS
Gas Pedal
Tap Tempo, Gate
Stomp Switch
DIN MIDI
MIDI Notes, CCs
& Clock
USB MIDI
BASIC APPLICATIONS
In the following examples, connect the audio ins and outs of your Moogerfoogers, synths and other gear as you normally would. Consult the
documentation of your gear for additional information. These examples just scratch the surface. The Multi-Pedal has four channels, so multiply
everything you see here by four and you'll begin to grasp the Power Of The Pedal... Explore!
EXPRESSION PEDAL
ANALOG LFO
Specifications subject to change without notice
INPUT TYPES MP-201
Expression
100 Presets
Control,
shape and
route inputs
to outputs
1.Connect a standard 1/4" cable from the Multi-Pedal's CV1 Output to the FREQ Input of an MF-102
Ring Modulator.
2. Turn the FREQUENCY knob on the MF-102 completely counter-clockwise.
3. Dial up preset #00 on the Multi-Pedal.
3. Play a sound and use the Multi-Pedal to sweep the oscillator frequency of the Ring Modulator by
moving the pedal. Switch to preset #01 and the sweep direction will be reversed.
4. GO FARTHER - Edit the HEEL and Toe parameters and set the exact sweep range and direction that
fits your music.
1. Connect as above and switch to Multi-Pedal preset #04.
2. Turn the MF-102's LFO AMOUNT knob completely counter-clockwise. Play a sound through the
MF-102. The Multi-Pedal's LFO is now modulating the MF-102's Oscillator with a Sawtooth Wave.
3. Move the pedal to change the frequency of the LFO.
4. GO FARTHER - The MF-102's onboard LFO is capable of Triangle and Squarewave modulations.
By adding the Multi-Pedal, you've increased the power of your MF-102 and now have access to four
additional waveforms. Presets #04 - #07 feature Saw, Ramp, Random (Sample & Hold) and Noise
waveforms.
MP-201 Multi-Pedal
Quick Start Guide
HARDWARE OUTPUTS
(4X) Analog
Control Voltage
0 to 5V or -5 to +5V
DIN MIDI
USB MIDI
Version 2.0 Operating System
Connect - Control - Create
OUTPUT TYPES
ANALOG
•Expression Control
(with preset voltage levels)
•LFO Waveforms
Triangle, Square, Sawtooth, Ramp, S&H
Sync to MIDI Clock, other LFOs or freerunning
Pedal controls amplitide, rate or offset
•Noise
•Gate
•Envelope
HADSR, one-shot or looping
•Pitch CV
.667 to 1.33V/octave
These analog output types can also be expressed
as MIDI CC messages.
MIDI
•MIDI Notes
•MIDI CCs
•MIDI Clock (BPM)
moogmusic.com
