Sunricher SR-2811 User Manual

SR-2811 DMX512 Master User Manual

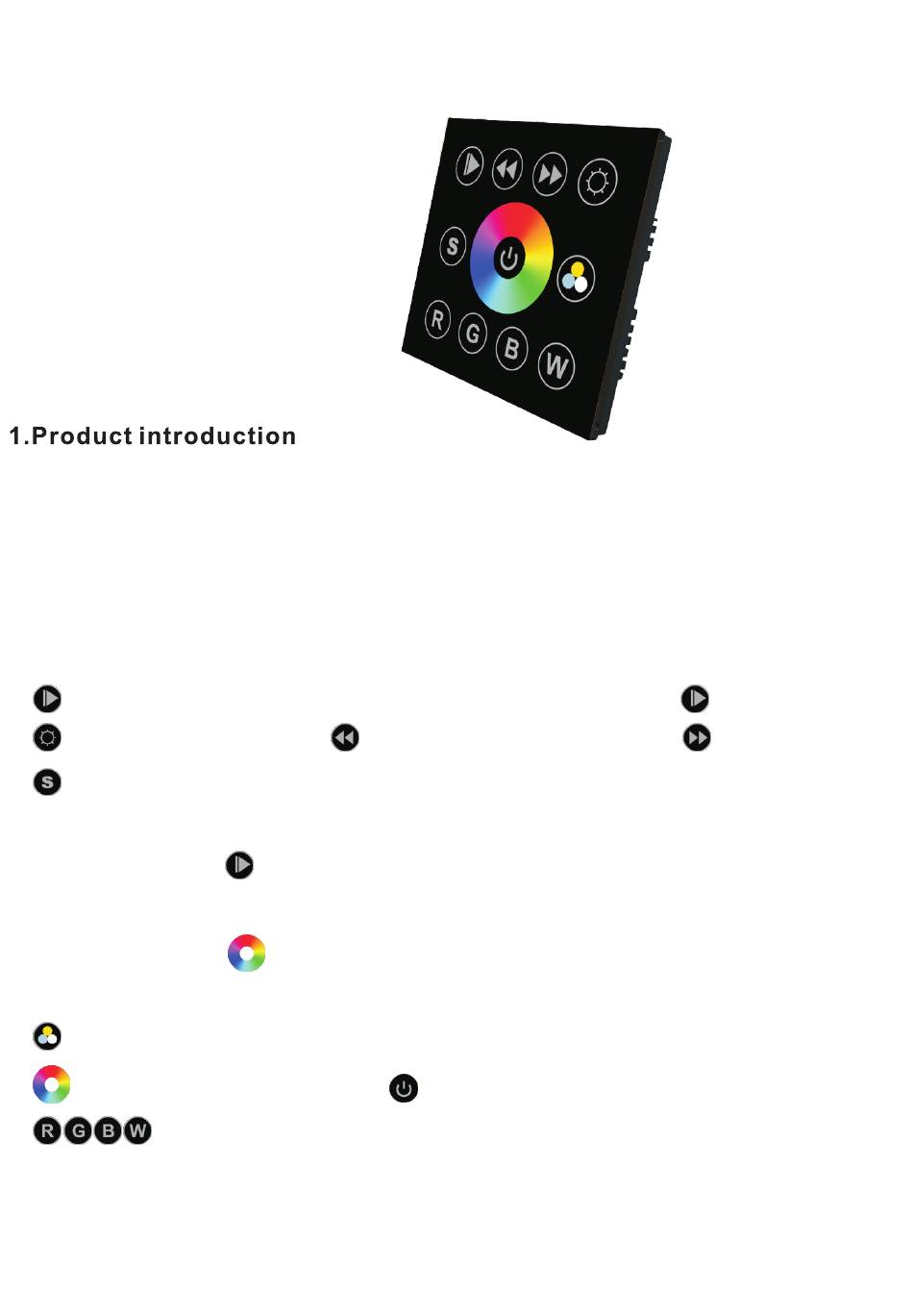

SR-2811 DMX512 Master touch panel (For RGBW) is DMX signal output to connect DMX
decoders.It is of high sensitive glass touch panel, and any finishing color could be
customized.This wall switch suit for any RGB or RGBW LED lightings for home club bar etc.

2.Performance Parameter

Input voltage----------------12V
Output------------------------DMX512 signal
Size---------------------------86mm*86mm*35mm

3.Operations

Play&pause button. There is only 1 build-in mode. When you touch
Brightness
Button can save the color from mode or save color when you touch color wheel.
In "S" button, it saved "R/ G/ B" 3 colors in default. But with your operation, you can save
another 3 colors replace those R/G/B colors.
When you press
the mode, then you can press "S" button for 5 seconds until connected lighting flashes.
Then it saved successfully.
When you touch
save it, then you press "S" button for 5 seconds until the connected lighting flashes. Then
it saved successfully.
For Warm white, Natural white, Cool white changing.(Through the three RGB color mixing)
Touching wheels
Short press means switch on and off for each channel. 1st Long press means
brightness+, 2nd Long press means brightness—.
At the corner of the panel there is a signal light, Blue means on, Red means off
SR-2811DMX can send 40 data. It's from 1 to 40. Data 1 is the data of R channel. Data 2 is
the data of G channel. Data 3 is the data of B channel. Data 4 is the data of W channel. All
DMX decoder needs 4 address as a group, such as 1-4, 5-8,9-12,13-16,17-20,21-24,25-
28,29-32,33-36,37-40. Every 4 by one, each group means RGBW 4addresses.so there are
only 4 different addresses.
(For RGBW )
Speed down
this button, 1 build-in mode will run, if now you see a favorite color in
color wheel, if you touch a favorite color on it, then you want to
Switch off and on, long press means default setting
this button, it will run.
Speed up
