Keith Merrow Humbucker Set
Controls:
Volume
Voice Select Switch (Voice 1, Voice 2, Single Coil / Voice 3)
Rev 4.1
Classic Neck
SCO
Single Coil Mode Select
Bridge
Neck
Voice Descriptions:
1. Vintage PAF
2. Keith Merrow Custom Voiced Humbucker
3. Classic Single Coil
Rev 5.1
Keith Merrow Bridge
SCO
Single Coil Mode Select
Bridge
Neck
Volume

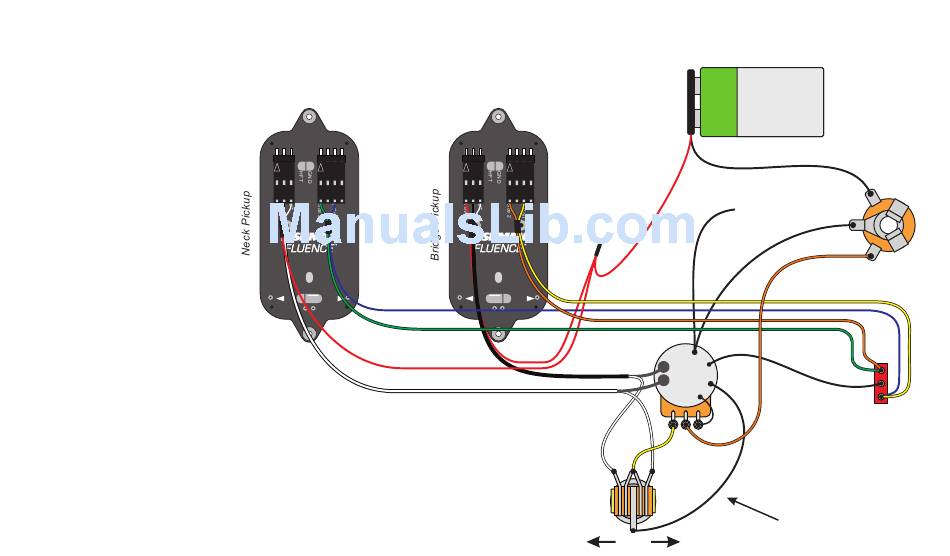

Bridge
Wire
Pickup Selector
3-Position
Neck Pickup
Both
9V Battery
(-)
(+)
Bridge
Ground
Sleeve
25k
Neck
Wire
Switch Ground:
Optional but
recommended
for shielding
Bridge Pickup
Output
Jack
Ring
Tip
3
1
2
Voice
Select
SPDT
ON-OFF-ON
Mini Toggle
