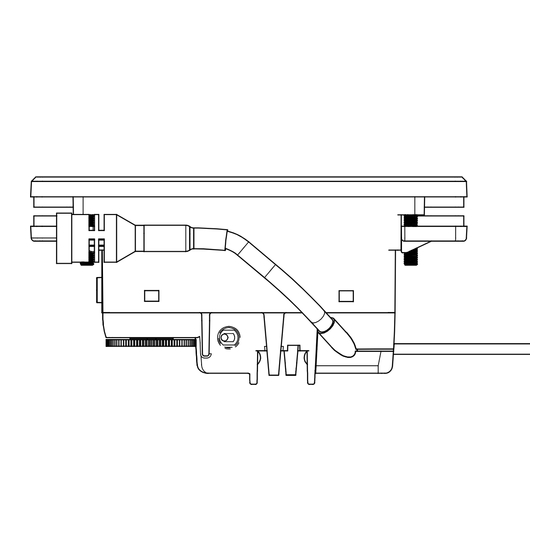

- Page 1 USER GUIDE RARE EARTH MIC BLEND fishman.com...
- Page 2 Please read through this User Guide to familiarize yourself with the operation of your Rare Earth Mic Blend. Additional information and support can be found at www.fishman.com...
-
Page 3: Quick Install
If you travel with your guitar or store it for long periods with the pickup in place, we strongly recommend that you have the endpin jack permanently installed in the guitar. Installation instructions for professional installers are available from Fishman Support at www.fishman.com/support. -
Page 4: Mounting Clamps
Mounting Clamps The jaws of the clamps are lined with natural cork, which will not interact with the guitar’s finish. Use gentle pressure to tighten the clamps. Note that over-tighten- ing may damage the guitar finish. Power The Rare Earth switches on when you plug in. To conserve the batteries, unplug the endpin jack when not in use. -
Page 5: Battery Replacement
Battery Replacement Remove the pickup from the instrument and carefully pry out the batteries with a small flat-head jeweler’s screwdriver. When you replace the batteries, observe the correct polarity. Note that plus (+) and minus (-) polarity marks are molded into the shell of the battery clip. -
Page 6: Battery Requirements
Battery Requirements Two 1.5 Volt silver oxide: Eveready #357 ANSI-WS15 1EC-SR44 The battery holder will also accept a single 3-Volt lithium battery: Duracell DL1/3N Eveready 2L76 Varta CR 1/3N 6132 Union Carbide 2L76 Sanyo CR 1/3N Others: K58L... - Page 7 Pickup Voicing The Rare Earth Mic Blend has been carefully voiced to reproduce a balanced string response. If your guitar has very high action on the bass side or very low action on the treble side, you may hear slight imbalance between the outside strings.
- Page 8 Blend Function - Microphone The Rare Earth Mic Blend microphone model combines the humbucking mag- netic sound-hole pickup with a condenser microphone to provide a wide range of natural sounds, adaptable to various playing situations. The magnetic pickup’s strength is its articulation, high gain-before-feedback, and isolation from other nearby sound sources.
- Page 9 Microphone Bass Switch The Mic bass switch controls the low frequency extension of the microphone. When switched to the position pointing toward the treble strings, this control will provide the fullest bass for mic only applications or blended tones where more mic bass is preferred.
- Page 10 Stereo/Mono Output Options Suggested Stereo Output Options: The Rare Earth Mic Blend can be used in mono or stereo output simply by choosing the appropri- ate cable. For a blended mono output use a standard ¼” to ¼” instrument cable. For stereo opera- tion, use a TRS to TRS or a TRS to stereo “Y”...
-
Page 11: Microphone Placement
Microphone Placement Try experimenting with microphone placement until you find a position you like. Here are some suggestions to get you started: To begin, move the blend control toward the treble strings (full mic). A suggested starting position would be with the microphone capsule parallel to the soundboard. - Page 12 Fishman at their sole discretion. Fishman may also choose to replace this product or part of this product with a substitute, in lieu of repair, in exchange for quoted labor charges. This warranty applies only if the Product is sold and delivered within the U.S.
- Page 13 United States. Product repaired after the first year warranty period at the Fishman factory will be returned at customer expense. Prod- uct returned to Fishman that is not covered by the terms of this warranty will be serviced only after payment is arranged.
- Page 14 513-300-255_r2 Fishman and Fishman Transducers are trademarks or tradenames of Fishman Transducers Inc.
