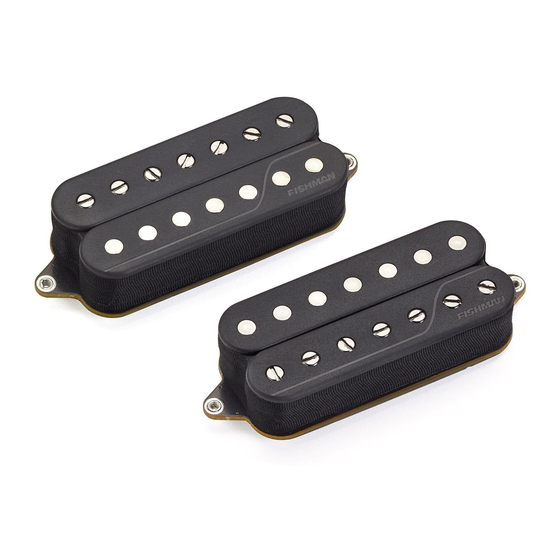

- Page 1 INSTALLATION GUIDE FLUENCE KEITH MERROW CUSTOM SET...
-
Page 2: Getting Started
Test fit the components to make sure that each will fit in the allocated locations or modify the instrument until the fit is correct and all controls can be located without issue. Fishman Fluence Pickups are active and require 25K audio taper potentiometers. -
Page 3: System Requirements
TARILY ASSUME THE RISK OF DEATH OR OTHER PERSONAL INJURY SUSTAINED WHILE PARTICIPATING IN SUCH ACTIVITIES WHETHER OR NOT CAUSED BY THE NEGLIGENCE OR ANY OTHER FAULT of Fishman, including but not limited to equipment malfunction from whatever cause, or any other fault of Fishman. Additionally, you agree to indemnify, defend... - Page 4 Review your planned scheme for errors, complete the soldering, mount and secure all your components, and test your completed installation before assembly. Consider a popular wiring option as shown on the reverse side of this guide or visit www.fishman.com for additional wiring diagrams.
- Page 5 Voice 1 Neck – Vintage PAF / Peak frequency – 2.6kHz Voice 1 Bridge – Medium output grunt / Peak frequency – 2.25kHz Voice 2 Neck – Clear, airy chime / Peak frequency – 4.5kHz, 350Hz Voice 2 Bridge – Brown sound / Peak frequency – 1.7kHz Voice 3 Neck –...
- Page 6 Fluence Classic Open Core – Connection Points & Functions 1. HFT (High Frequency Tilt) - This feature is for players who prefer a Rev 2.0 darker top end, similar to the effect of using passive pickups loaded by a long instrument cable. To activate, connect the HFT contact pad to ground either wired through a switch or permanently by creating a solder bridge to the GND pad next to it.
- Page 7 This pin is an electronically controlled switch and has no signal on it. It can share a switch contact with other voice select wires without interaction. Note: the Single Coil / Voice-3 select pin (3) over rides Voice-2 select. Therefore, the Voice-3 pin must be disconnected (not grounded) to allow Voice-2 selection.
- Page 8 The active coil is selected by a solder bridge connecting the corresponding outer pad to the center one. The pickups ship from the factory with the inner coils (when used as a Bridge/Neck pair) set as the default. To change the active coils to the outer ones, remove the solder bridge and create a new one from the other outer pad to the center.
- Page 9 6. +9-18V - This is the + dc power input pin. Fluence pickups are designed to have a wide dynamic range running from a 9V supply, however they are 18V compatible for instruments already set up that way. 7. Output - The main output pin has a 2k ohm output impedance and is suitable for driving low impedance volume and tone pots, typically 25k.
- Page 10 Keith Merrow Humbucker Set Controls: 9V Battery Volume - Pull for Voice 2 Tone - Pull for Single Coil / Voice 3 Rev 4.1 Rev 5.1 Output Jack Ring Bridge Ground Sleeve Classic Neck Keith Merrow Bridge Single Coil Mode Select Single Coil Mode Select Neck Bridge...
- Page 11 Keith Merrow Humbucker Set Controls: 9V Battery Volume Voice Select Switch (Voice 1, Voice 2, Single Coil / Voice 3) Rev 4.1 Rev 5.1 Output Jack Ring Bridge Ground Sleeve Classic Neck Keith Merrow Bridge Single Coil Mode Select Single Coil Mode Select Bridge Bridge Neck...
- Page 12 Fishman and Fishman Transducers are trademarks or tradenames of Fishman Transducers Inc. 514-300-174_r0 1/22...
