Summary of Contents for Fishman TONEDEQ

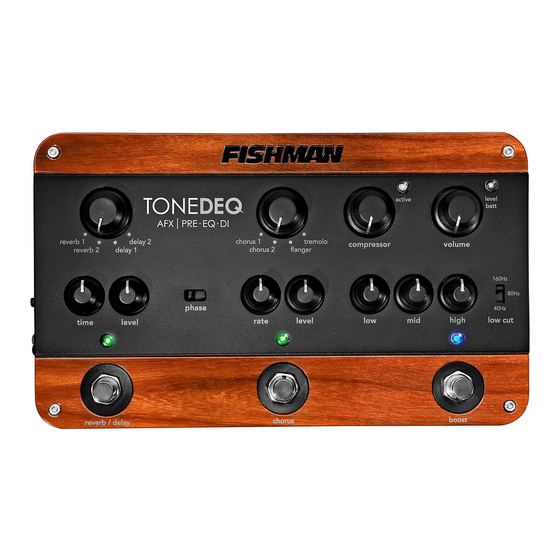

- Page 1 USER GUIDE TONEDEQ | AFX...
-
Page 2: Quick Start
To ensure your personal safety and the safety of others, operate this apparatus only after Thank you for making Fishman a part of your acoustic experience. We are proud completely reading this instruction manual and heeding the warnings listed below. -
Page 3: Left Side Panel
XLR D.I. Output Insert a plug into the input jack, and the TONEDEQ | AFX powers up. To Connect a standard microphone cable here to feed recording equipment or a conserve the battery, remove the plug from the input when not in use. -
Page 4: Front Panel
Front Panel Front Panel (cont.) Volume Tone Controls The volume control affects the 1/4 inch output level only. For the cleanest signal, set the volume as high as possible without clipping the next device in the signal chain. If you hear distortion and the level light is not fl ashing red, reduce the volume. -
Page 5: Block Diagram
Front Panel (cont.) Front Panel (cont.) TONEDEQ | AFX offers two independent effects processors that run in parallel with the analog preamp, compressor and EQ circuits to reduce the effect of coloration on your instrument’s sound. Chorus Effects Reverb & Delay Effects Time •... -
Page 6: Technical Specifications
Typical in-use current consumption: 37mA (62mA max.) Typical 9V battery life: 12 hours using alkaline battery 18 hours using lithium battery) 9V adapter: Fishman 910-R or suitable fi ltered and regulated, 200mA type, tip = negative Tone Controls: Low cut: 40Hz, 80Hz, 160Hz Low control: ±14dB @ 100Hz... - Page 7 Fishman and Fishman Transducers are trademarks or tradenames of FISHMAN TRANSDUCERS, Inc. 513-300-199 Rev 1 5-14...
