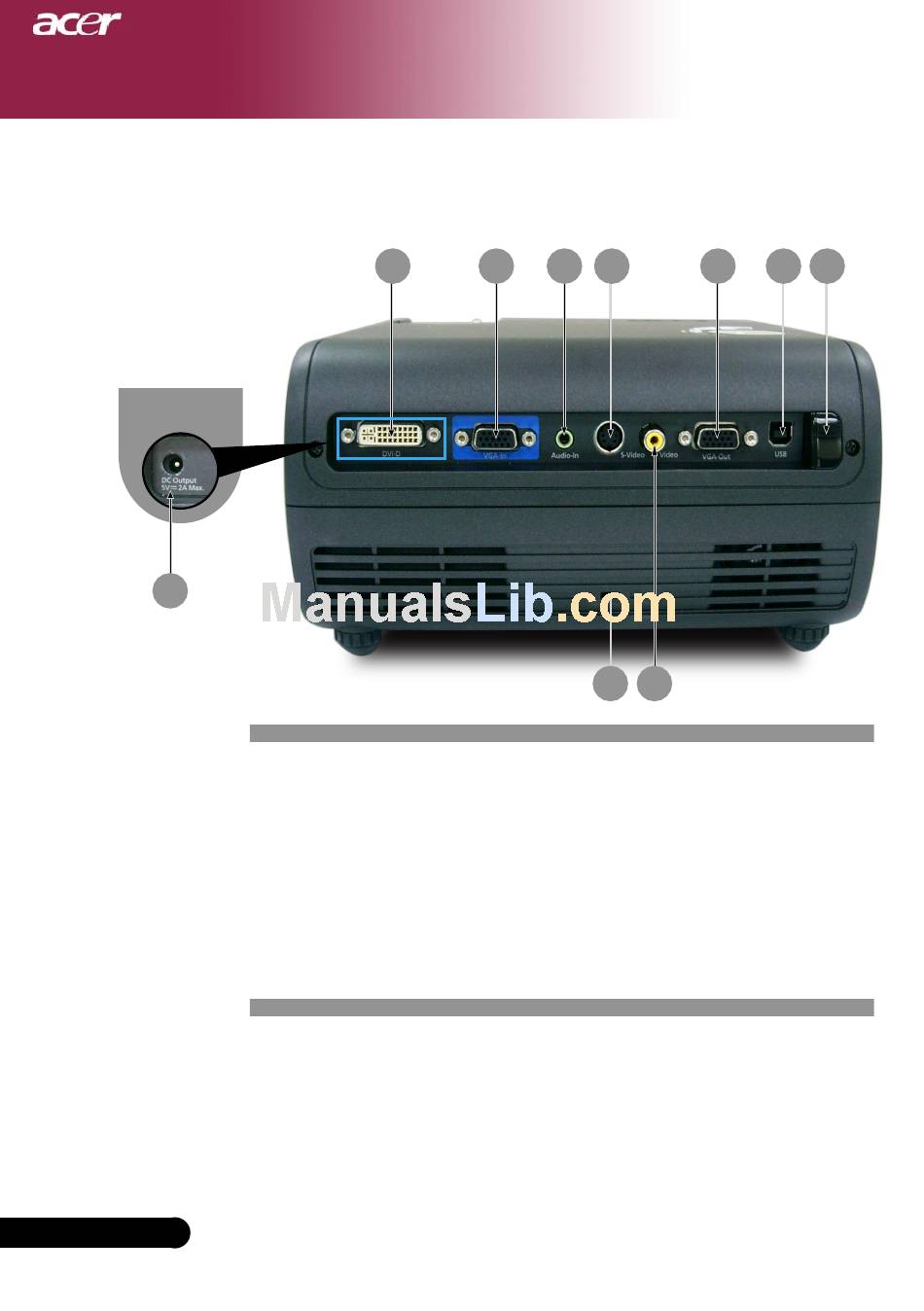

Connection Ports

1
1. DVI Input Connector (for Digital singal with HDCP function) (Op-
tional)
2. PC Analog Signal/HDTV/Component Video Input Connector
3. Audio Input Connector
4. S-Video Input Connector
5. Monitor Loop-through Output Connector (VGA-Out)
6. USB Connector
7. Remote Control IR Receiver
8. Composite Video Input Connector
TM
9. Kensington Lock Port
10. 5V DC Output Jack (for attached dongle device) (for PD100 only)
